Yamaha WaveRunner - Reverse Gate

6-6
E
JET
PUMP
REVERSE GATE
REVERSE GATE

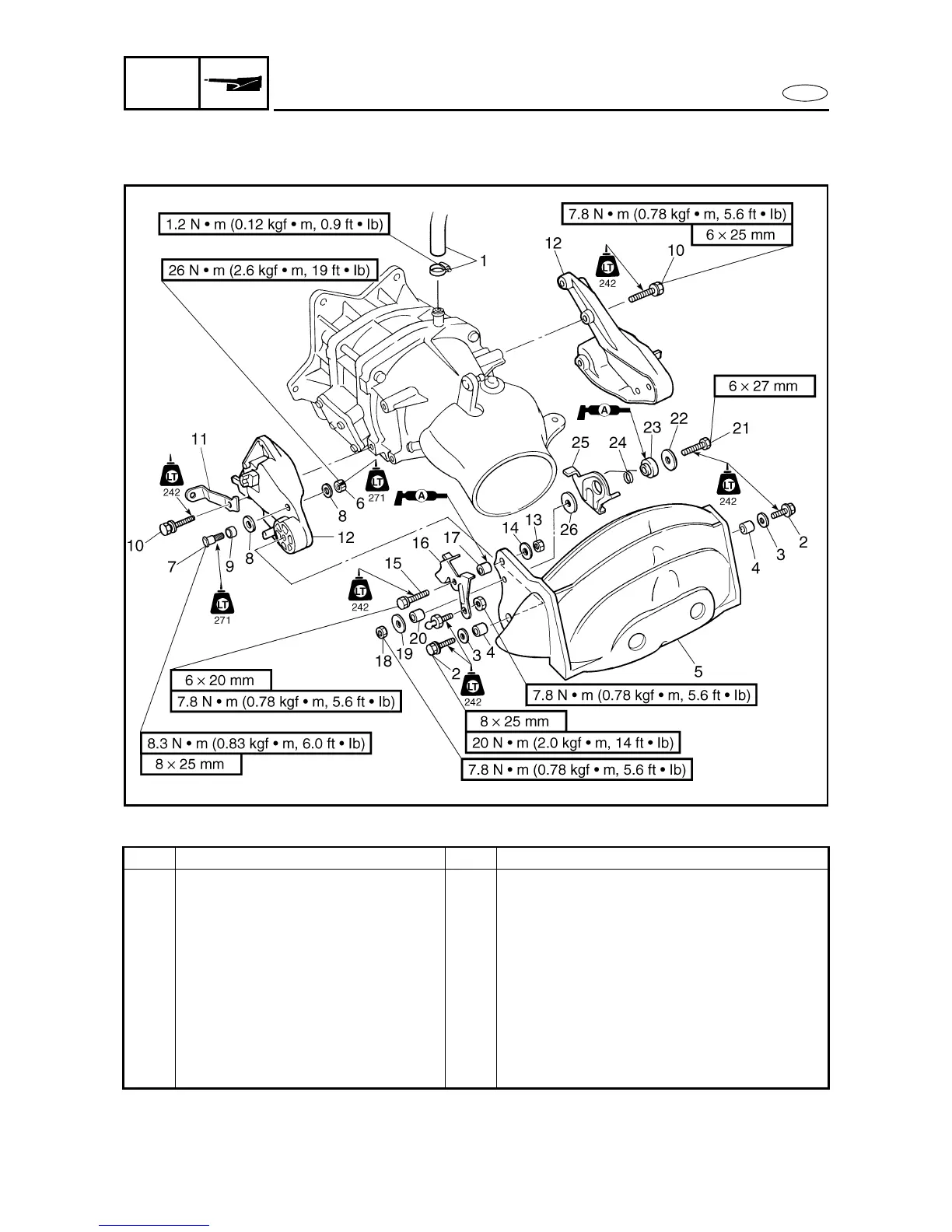

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
REVERSE GATE REMOVAL
Follow the left “Step” for removal.
1 Clamp/spout hose 1/1
2Bolt 2
3 Washer 2
4 Collar 2
5 Reverse gate assembly 1
6Nut 1
7Bolt 1
8 Washer 2
9 Roller 1
