Yamaha WaveRunner - Intermediate Housing Installation

6-30
E
JET
PUMP
BEARING HOUSING

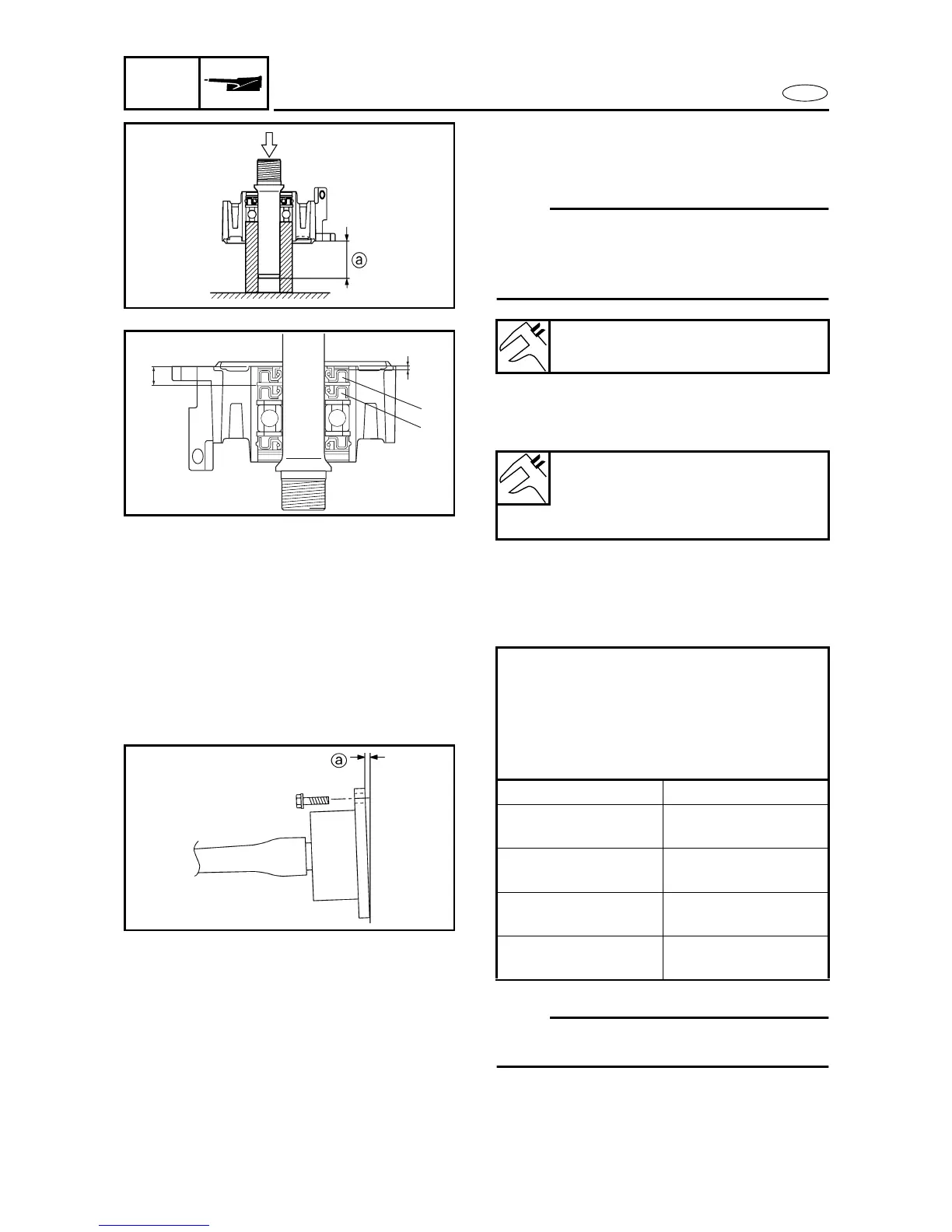

2. Install:
• Intermediate drive shaft
• Circlip (rear)
NOTE:
Hold the bearing in place as shown with a pipe
that is more than 80 mm (3.15 in) long, and
which has an outer diameter of 51 mm (2.00
in) and an inner diameter of 26 mm (1.02 in).
3. Install:
• Oil seal
1
[8 mm (0.31 in)]
• Oil seal
2
[11 mm (0.43 in)]
Intermediate housing installation
1. Install:
• Intermediate housing
• Shim
NOTE:
Install the shim(s) to the original position if the
intermediate housing is not replaced.
Distance
a
:
46.0
±
0.5 mm (1.81
±
0.02 in)
Distance
a
:
10.5
±
0.2 mm (0.41
±
0.01 in)
Distance
b
:
0.8
±
0.2 mm (0.03
±
0.01 in)
Installation steps:
• Install the intermediate housing.
• Measure the clearance
a
at each bolt
hole.
• Install the suitable shim from the table
below.
Clearance
a
Shim thickness
0–0.2 mm
(0–0.008 in)
No need
0.3–0.7 mm
(0.012–0.028 in)
0.5 mm
0.8–1.2 mm
(0.031–0.047 in)
1.0 mm
1.3–2.0 mm
(0.051–0.079 in)
1.5 mm
b
a
2
1
