6-10
E
JET
PUMP
JET THRUST NOZZLE AND NOZZLE RING
JET THRUST NOZZLE AND NOZZLE RING

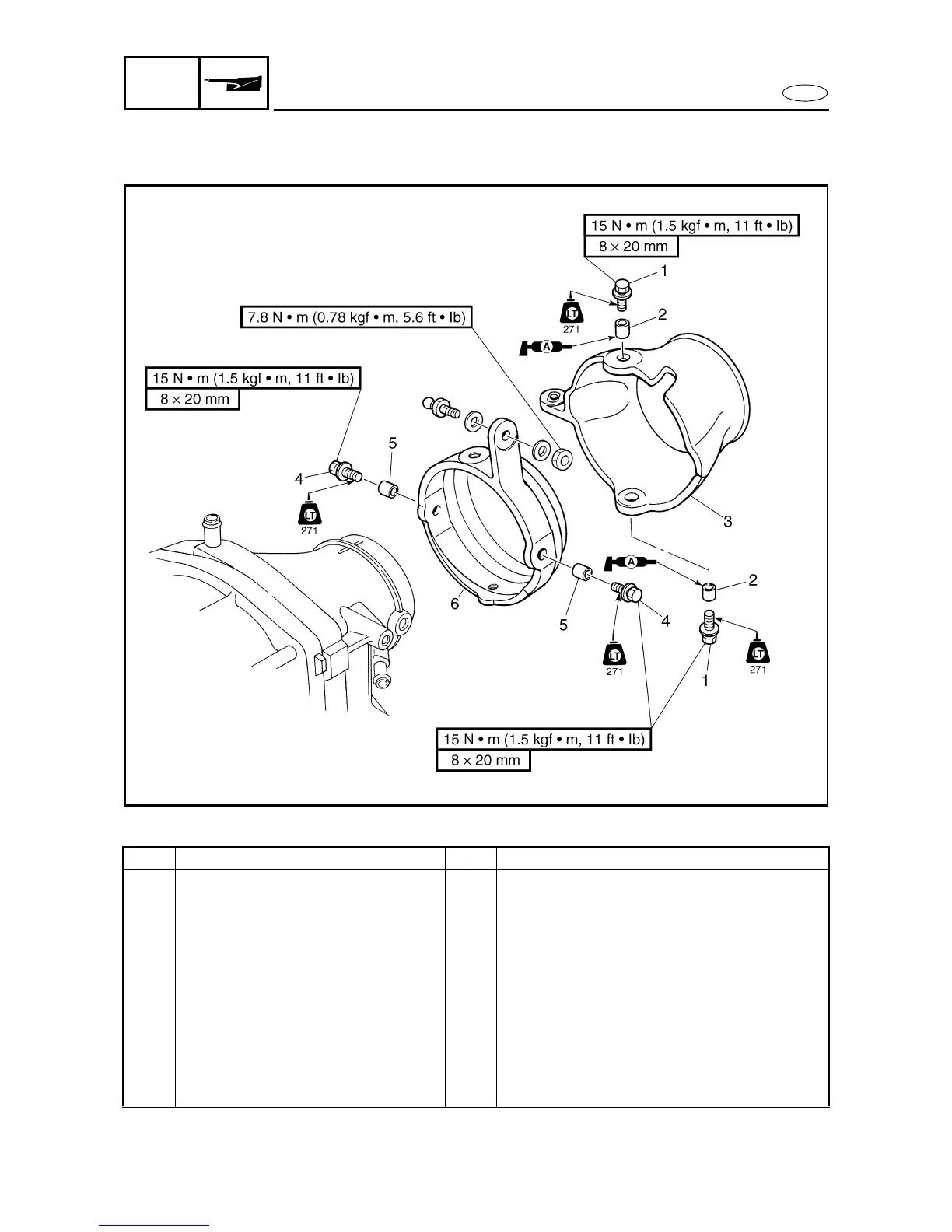

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
JET THRUST NOZZLE AND
NOZZLE RING REMOVAL
Follow the left “Step” for removal.
Jet pump unit Refer to “JET PUMP UNIT”.
Reverse gate Refer to “REVERSE GATE”.
1Bolt 2
2 Collar 2
3 Jet thrust nozzle 1
4Bolt 2
5 Collar 2
6 Nozzle ring 1
Reverse the removal steps for installation.
