8-46
E
HULL
HOOD
EXHAUST SYSTEM
SERVICE POINTS
Exhaust system inspection
1. Inspect:
• Water lock band
Cracks/damage
→
Replace.
2. Inspect:
• Rubber hoses
Burns/cracks/damage
→
Replace.
3. Inspect:
• Water lock
Cracks/leaks
→
Replace.
4. Inspect:
• Water tank
Cracks/damage/leaks
→
Replace.

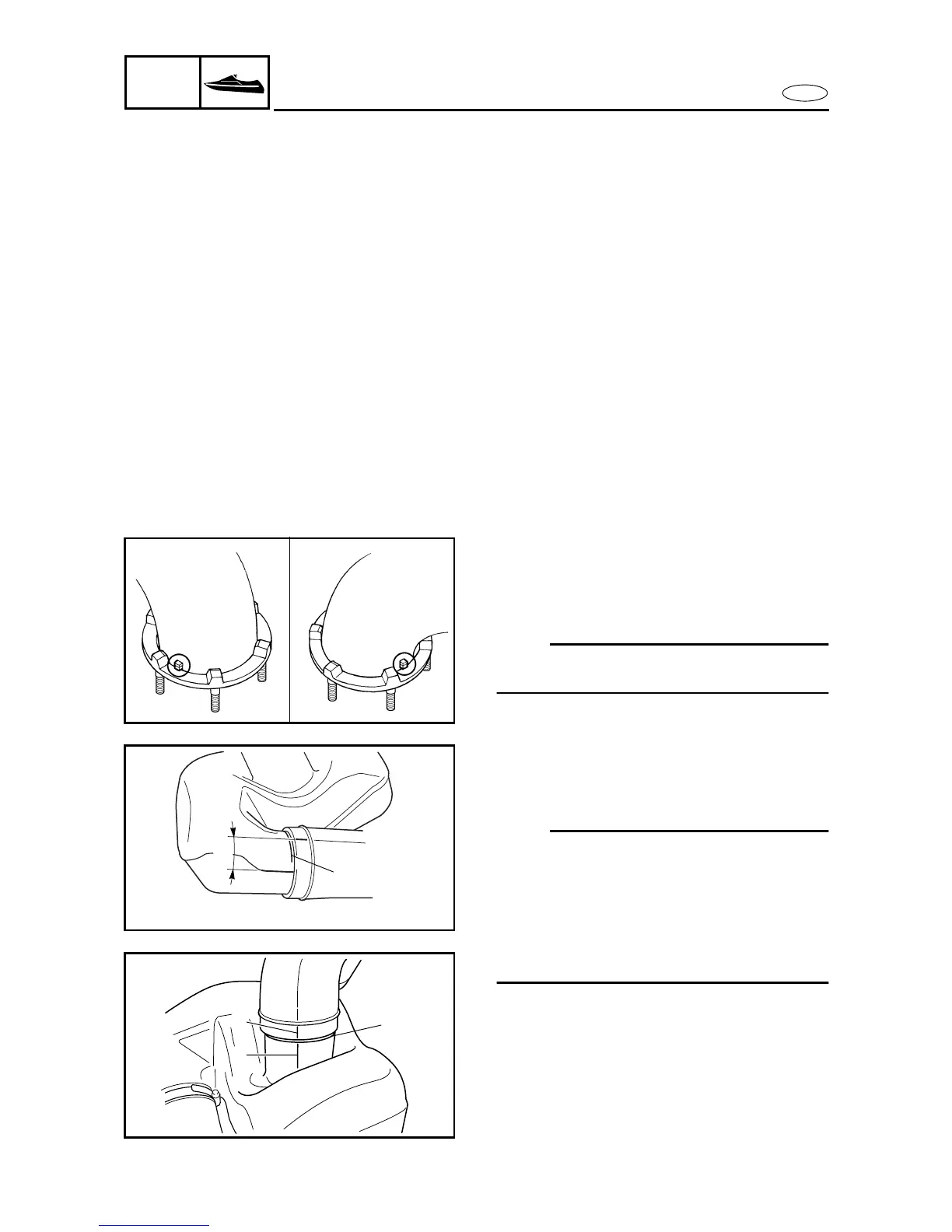

Exhaust component parts sub-assembly
1. Install:
• Rubber hose
• Plate
NOTE:
Be sure to fit the projections on the rubber
hose with the grooves in the plate.
2. Install:
• Rubber hoses
• Water tank
NOTE:
• Be sure to insert the rubber hose to the line
a
on the water tank.
• Make sure that there is a surface distance of
47 mm (1.9 in)
b
between the parting lines
of the water tank and rubber hose.
• Align the parting line
c
of the rubber hose
with the parting line
d
of the water tank.
b
a
a
c
d
