Yamaha WaveRunner - Display Function (for FX Cruiser High Output)

61
E
– +
ELEC

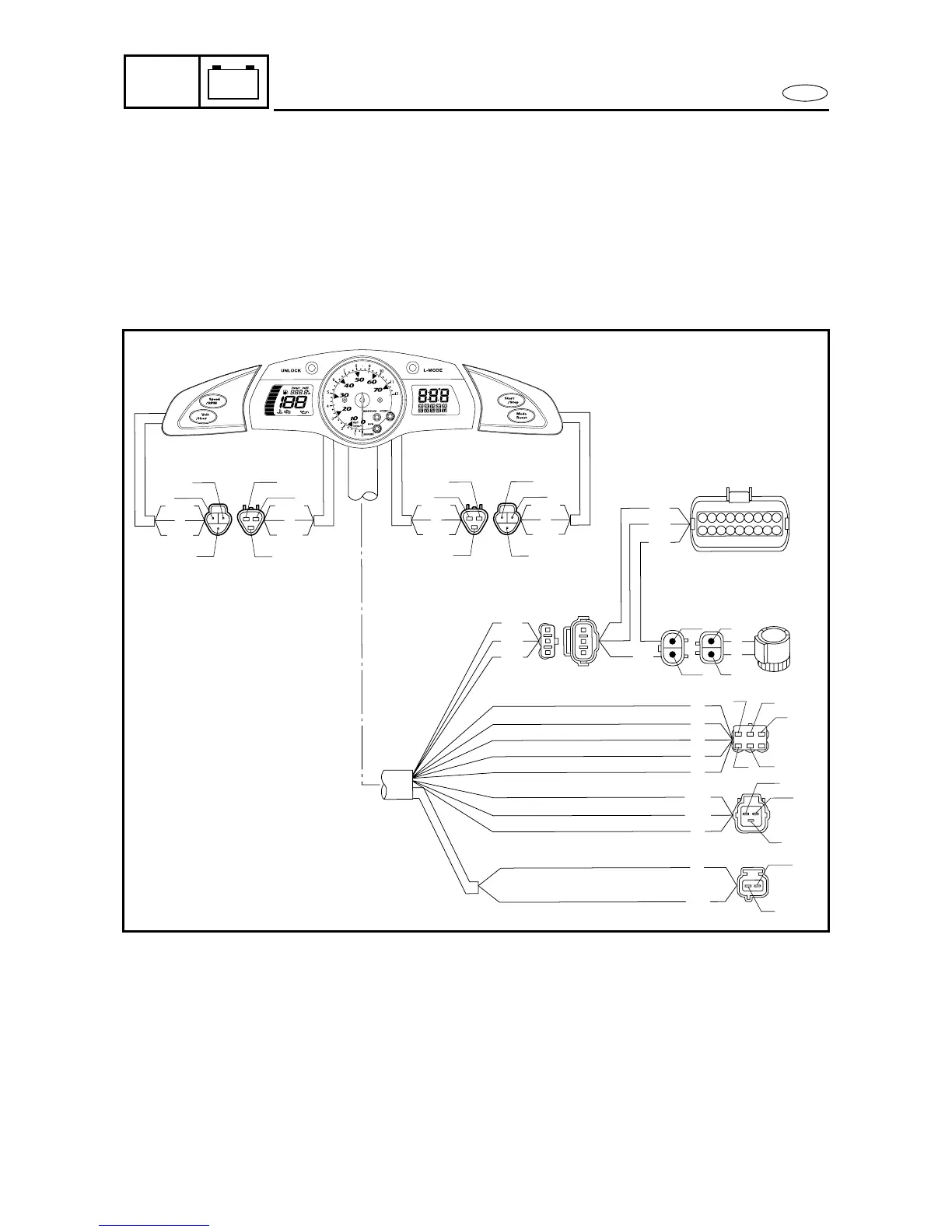

Display function
(for FX Cruiser High Output)
1. Check:
• Display function
Does not operate
→
Replace the multi-
function meter.
1
Remote control unit
2
Buzzer
3
Compass sensor
4
ECM
5
Fuel level sensor
6
Left operation button
7
Right operation button
