HULL
HOOD
REBOARDING STEP (For FX Cruiser/FX
Cruiser High Output)
REBOARDING STEP (For FX Cruiser/FX Cruiser High Output)

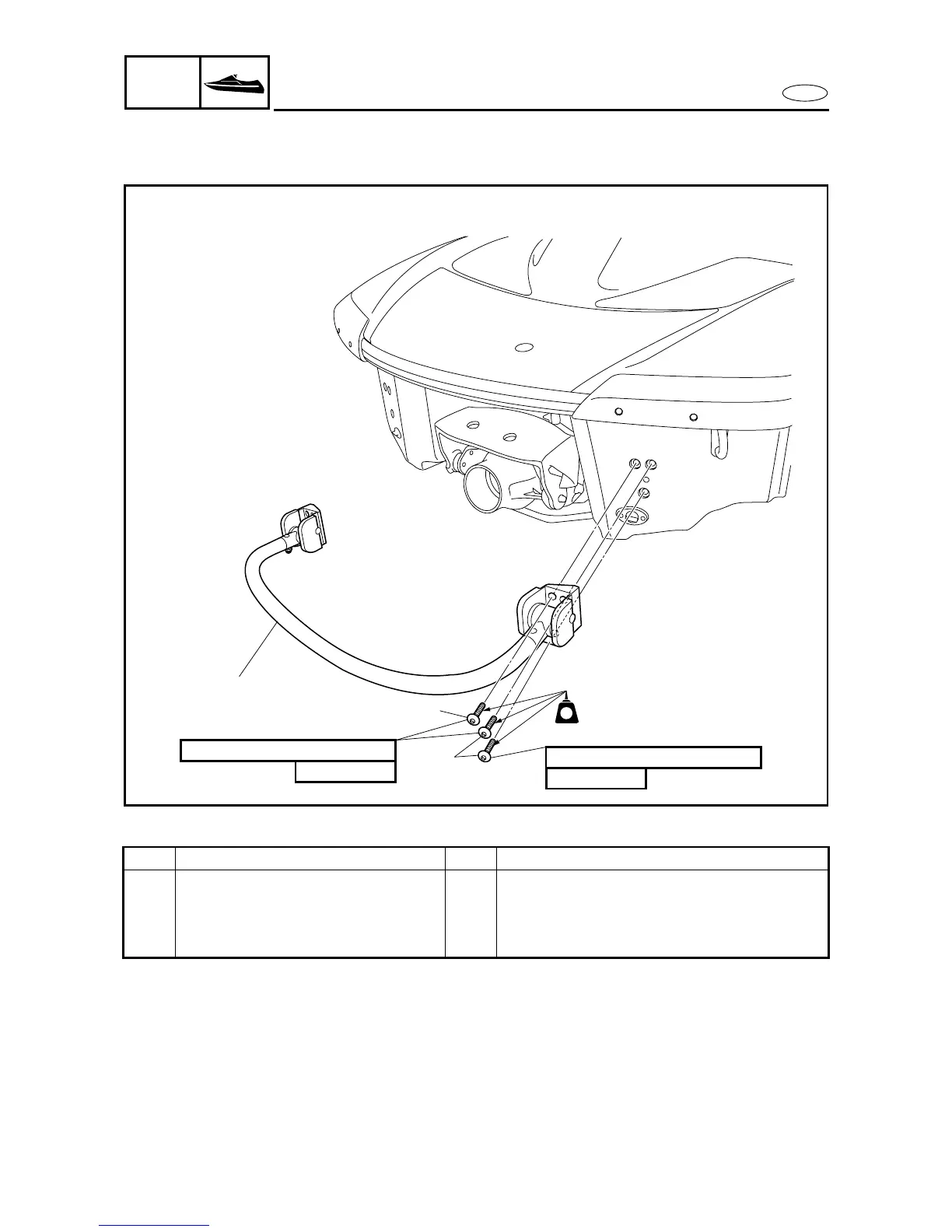

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty Service points
REBOARDING STEP REMOVAL
Follow the left “Step” for removal.
1Bolt 6
2 Reboarding step 1
Reverse the removal steps for installation.
1
1
2
LT
271
8 × 42 mm
15 N • m (1.5 kgf • m, 11 ft • Ib)
8 × 42 mm
15 N • m (1.5 kgf • m, 11 ft • Ib)
