Yamaha WaveRunner - Lever 1, 2 Installation

6-9
E
JET
PUMP
REVERSE GATE
SERVICE POINTS

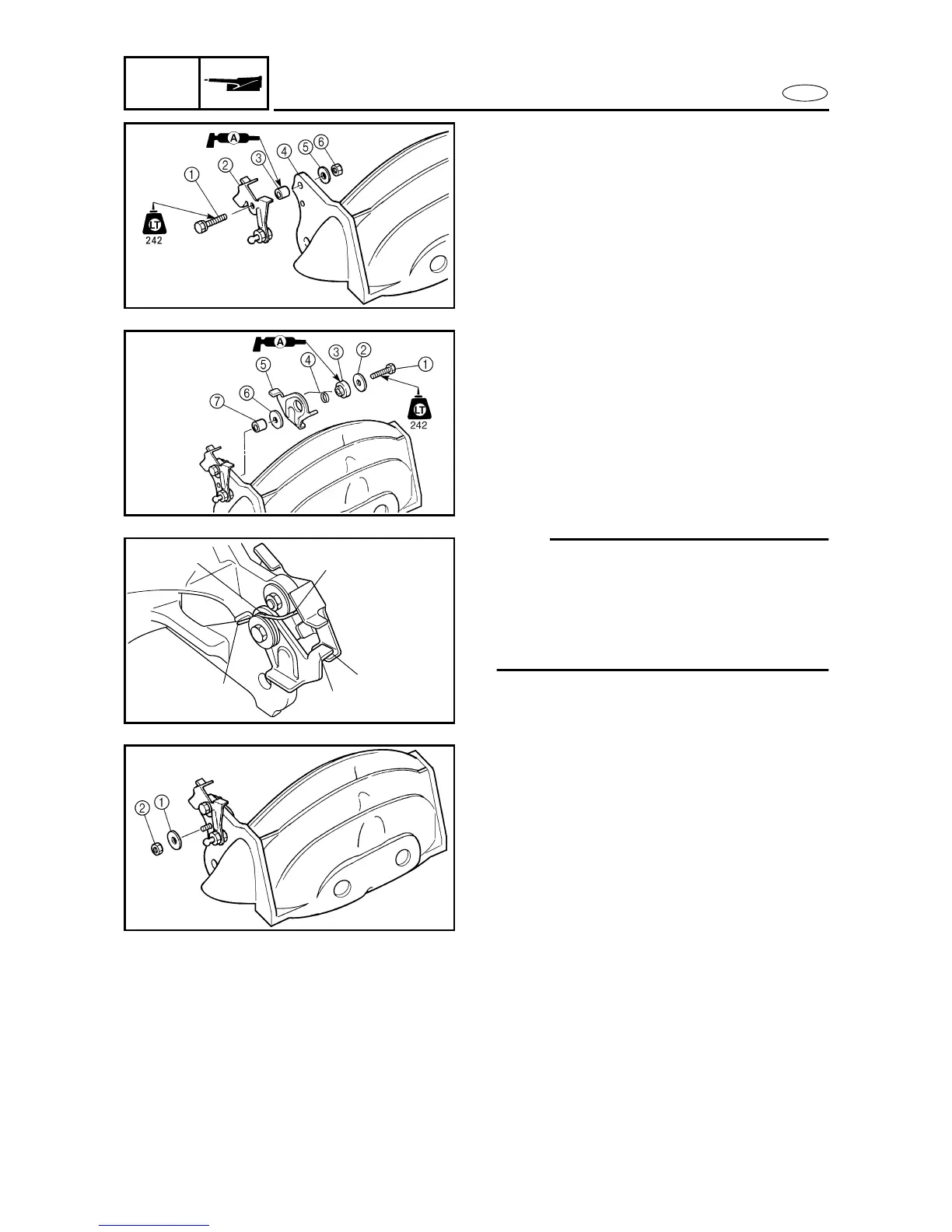

Lever 1 installation
1. Install:
• Bolt
1
• Lever 1
2
• Spacer
3
• Reverse gate
4
• Washer
5
• Nut
6
Lever 2 installation
1. Install:
• Bolt
1
• Washer
2
• Collar
3
• Spring
4
• Lever 2
5
• Washer
6
• Collar
7
NOTE:
• When installing the spring, hook the spring
end
a
to lever 2 and spring end
b
to the
reverse gate, as shown in the illustration.
• When installing the lever 2, hook the lever 2
end
c
to lever 1 end
d
, as shown in the
illustration.
4
a
c
d
b
2. Install:
• Washer
1
• Nut
2
3. Check:
• Lever 1 and lever 2 movements
Stick
→
Reassemble lever 1 and
lever 2.
