CLEAT ASSEMBLY (For FX Cruiser High Output)
CLEAT ASSEMBLY (For FX Cruiser High Output)

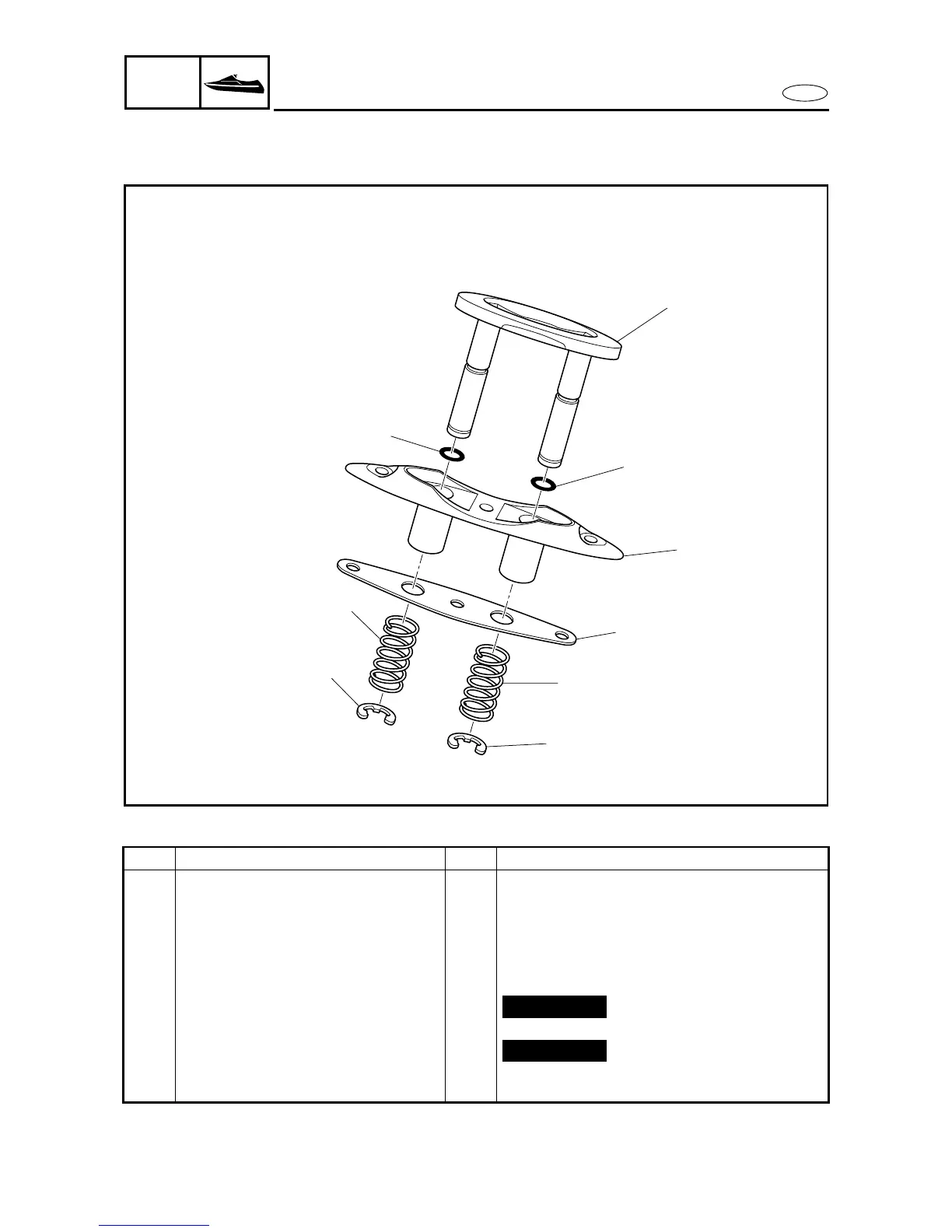

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step
Procedure/Part name
Q’ty Service points
CLEAT DISASSEMBLY
Follow the left “Step” for disassembly.
The following procedure applies to both of
the cleat assembly.
1 Circlip 2
2Spring 2
3Cleat 1
4 O-ring 2
5Plate 1
6Packing 1
Reverse the disassembly steps for
assembly.
2
1
2
1
5
4
4
3
6
Not reusable
Not reusable
