Yamaha WaveRunner - Starter Motor

7-32
E
– +
ELEC
STARTER MOTOR
STARTER MOTOR

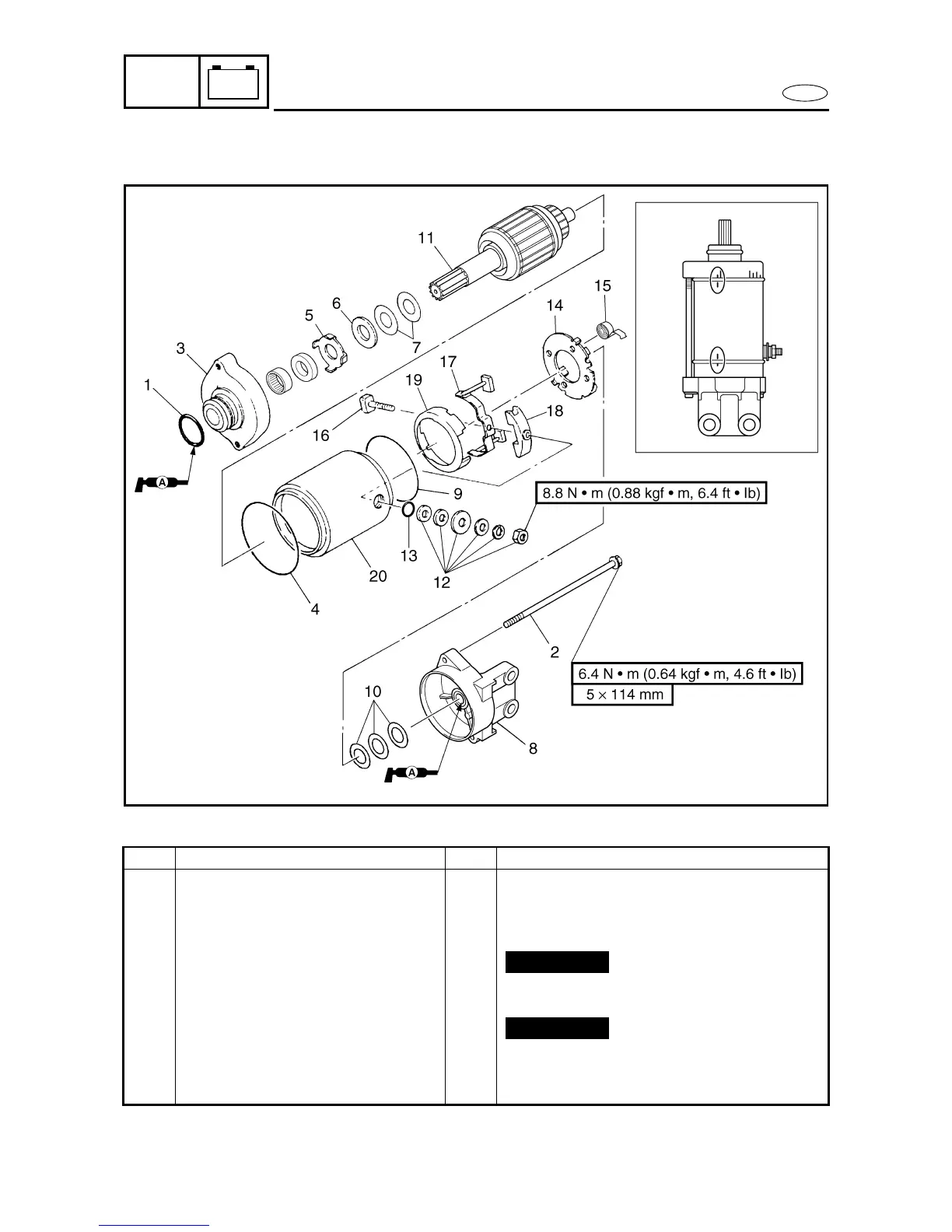

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
*: As required
Step Procedure/Part name Q’ty Service points
STARTER MOTOR
DISASSEMBLY
Follow the left “Step” for disassembly.
Starter motor Refer to “GENERATOR AND STARTER
MOTOR” in Chapter 5.
1 O-ring 1
2Bolt 2
3 Starter motor front cover 1
4 O-ring 1
5 Oil seal retainer 1
6 Washer 1
7 Shim * t = 0.2 mm, 0.5 mm
Not reusable
Not reusable
