STARTER MOTOR

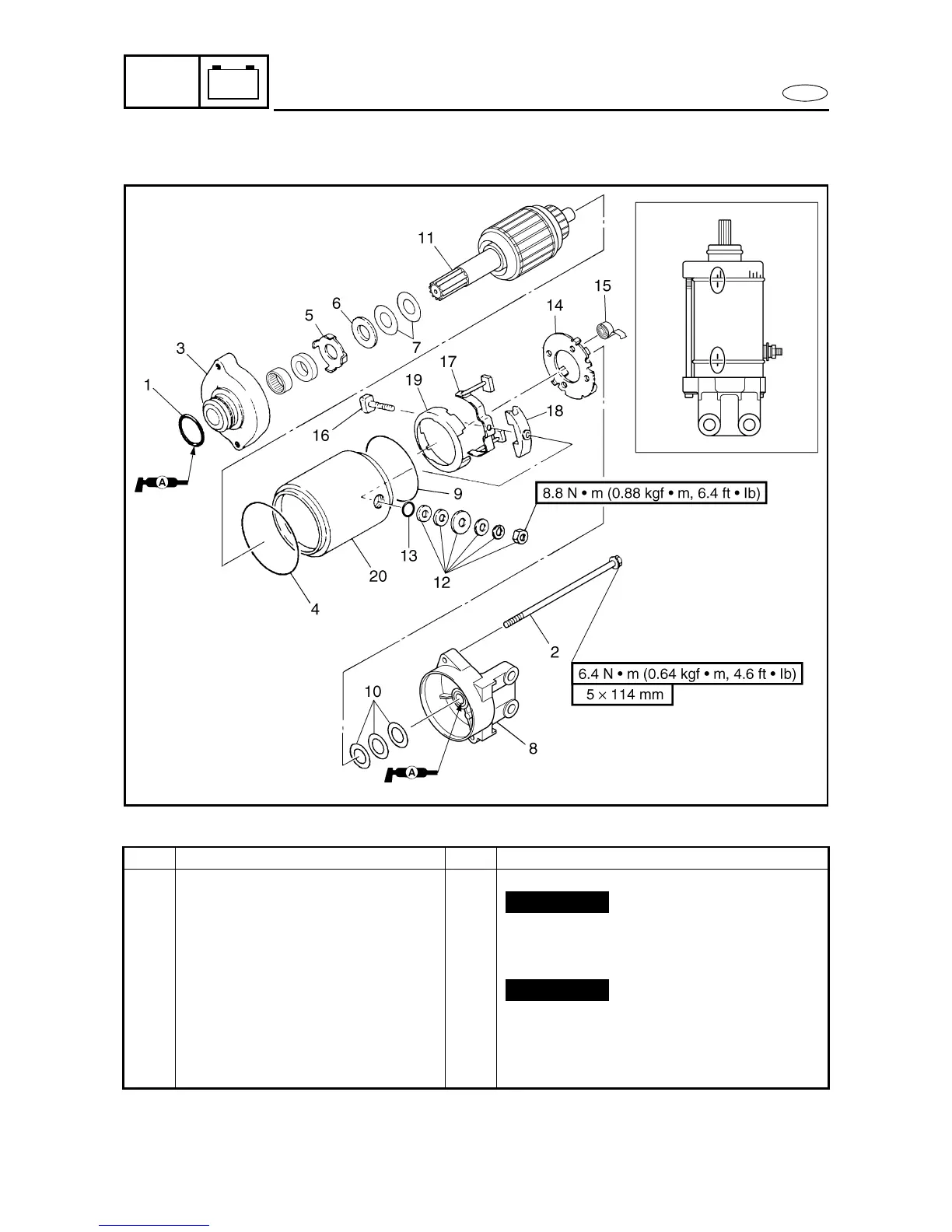

EXPLODED DIAGRAM
*: As required
Step Procedure/Part name Q’ty Service points
8 Starter motor rear cover 1
9 O-ring 1
10 Shim * t = 0.2 mm, 0.8 mm
11 Armature assembly 1
12 Nut/spring washer/washer 1/1/4
13 O-ring 1
14 Brush holder 1
15 Brush spring 4
16 Bolt 1
17 Brush assembly 1
Not reusable
Not reusable
