Trip timer display
(for FX Cruiser High Output)
1. Check:
• Trip timer display
Does not display
→
Replace the multi-
function meter.
Fuel consumption per hour, fuel consump-
tion per kilometer/mile display
(for FX Cruiser High Output)
1. Check:
• Fuel consumption per hour, fuel con-
sumption per kilometer/mile display
Does not display
→
Check the fuel injec-
tion duration using the “Engine monitor”
of the Yamaha Diagnostic System.
Replace the multifunction meter.
Overheat warning indicator
1. Check:
• Overheat warning indicator
Does not operate
→
Replace the multi-
function meter.

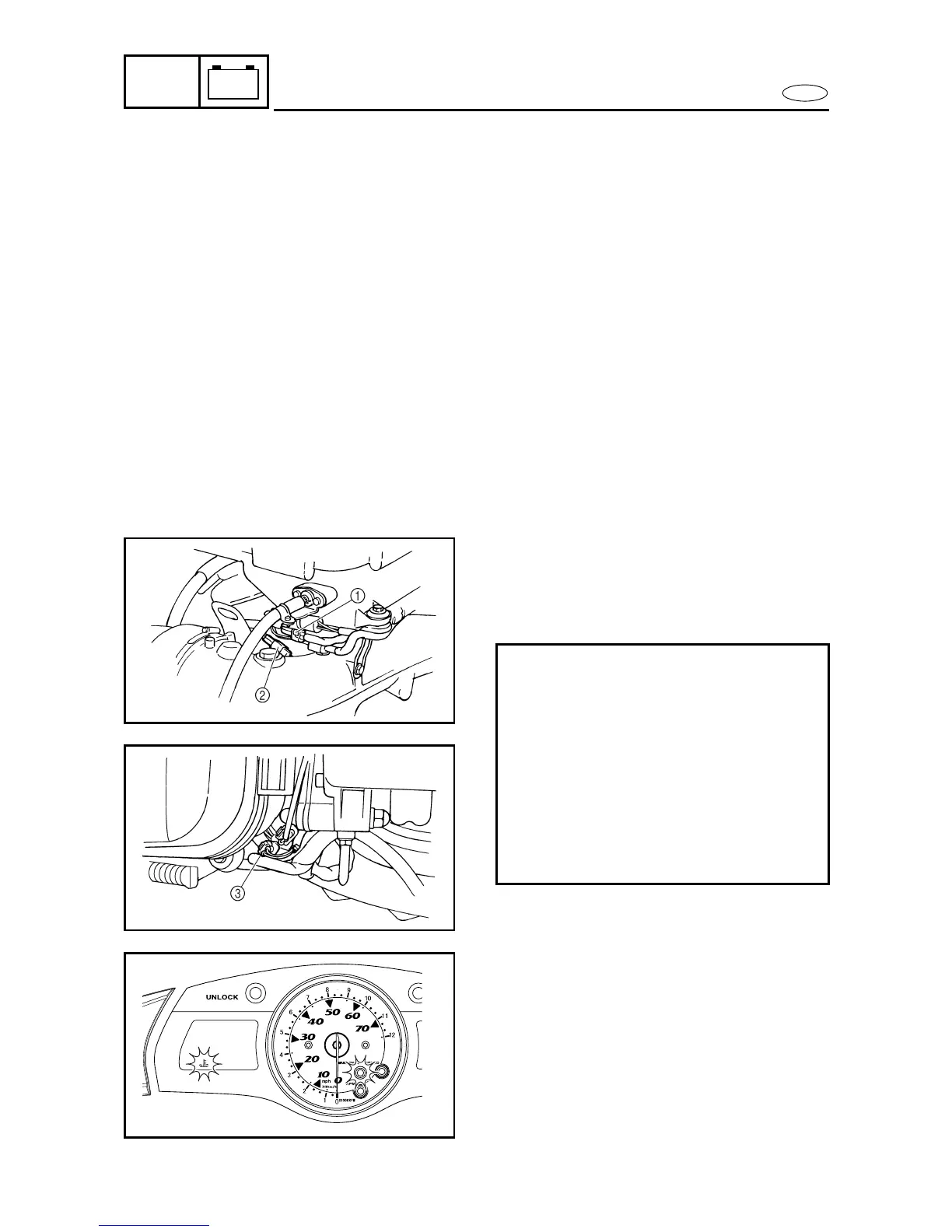

Checking steps:
• Start the engine.
• Disconnect the thermoswitch (engine)
coupler
1
(blue), engine temperature
sensor coupler
2
(black) or ther-
moswitch (exhaust)
3
coupler.
• Connect the jumper lead to the female
terminal of the disconnected coupler.
• Check that the multifunction meter over-
heat warning indicator comes on and the
buzzer sounds.
