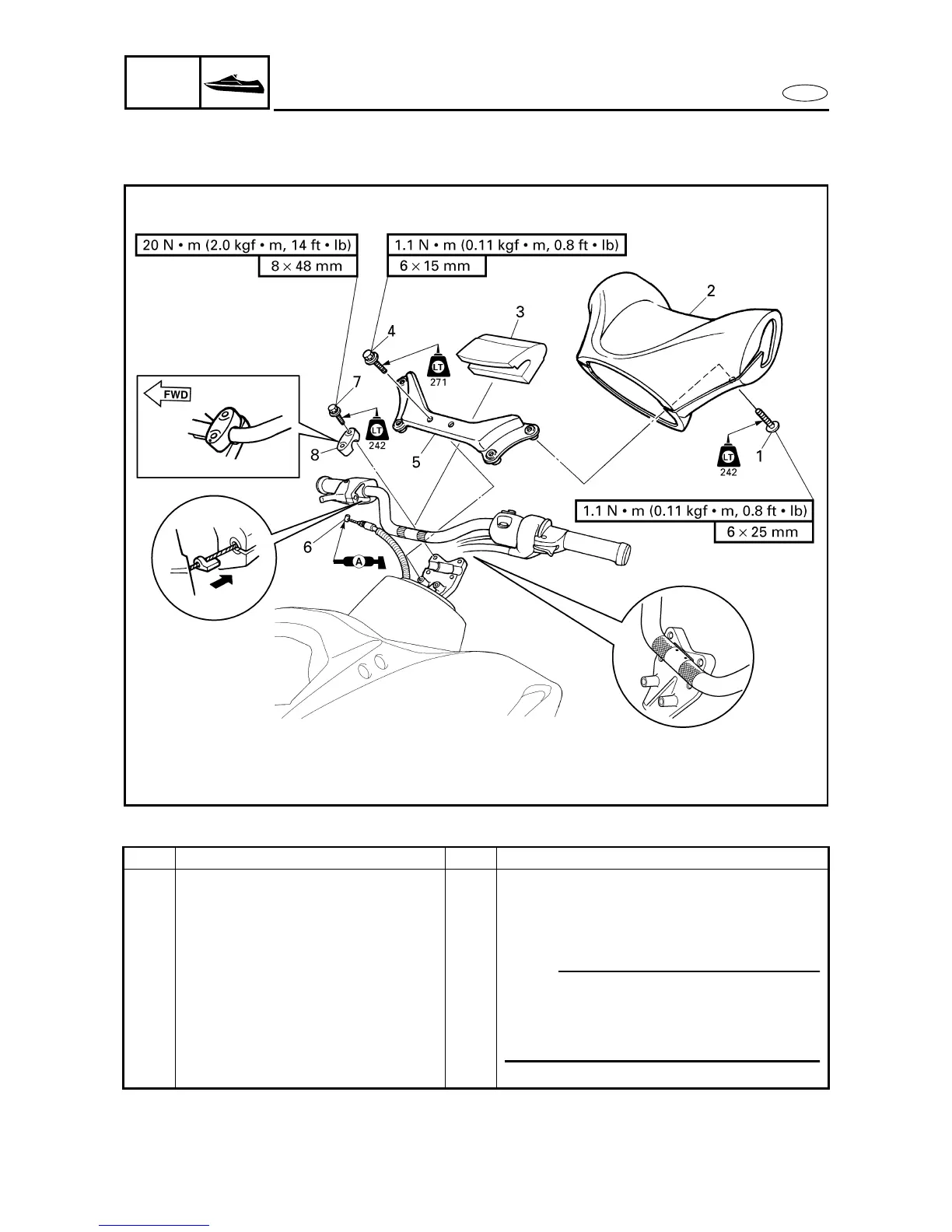

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
HANDLEBAR COVER REMOVAL
Follow the left “Step” for removal.
1Screw 4
2 Handlebar cover 1
3Pad 1
4Bolt 2
NOTE:
Position the corrugated tube for the throttle
cable as shown in the illustration so that the
tube attaches to the end of the outer throttle
cable.
5 Handlebar cover stay 1
6 Throttle cable 1
7Bolt 4
8 Upper handlebar holder 2
Reverse the removal steps for installation.
