Yamaha WaveRunner - Operation Button

59
E
– +
ELEC
MULTIFUNCTION METER
Multifunction meter
1. Check:
• Multifunction meter
Cracked meter housing
→
Replace the
multifunction meter.
Meter is fogged/shows signs of water
intrusion
→
Replace the multifunction
meter.

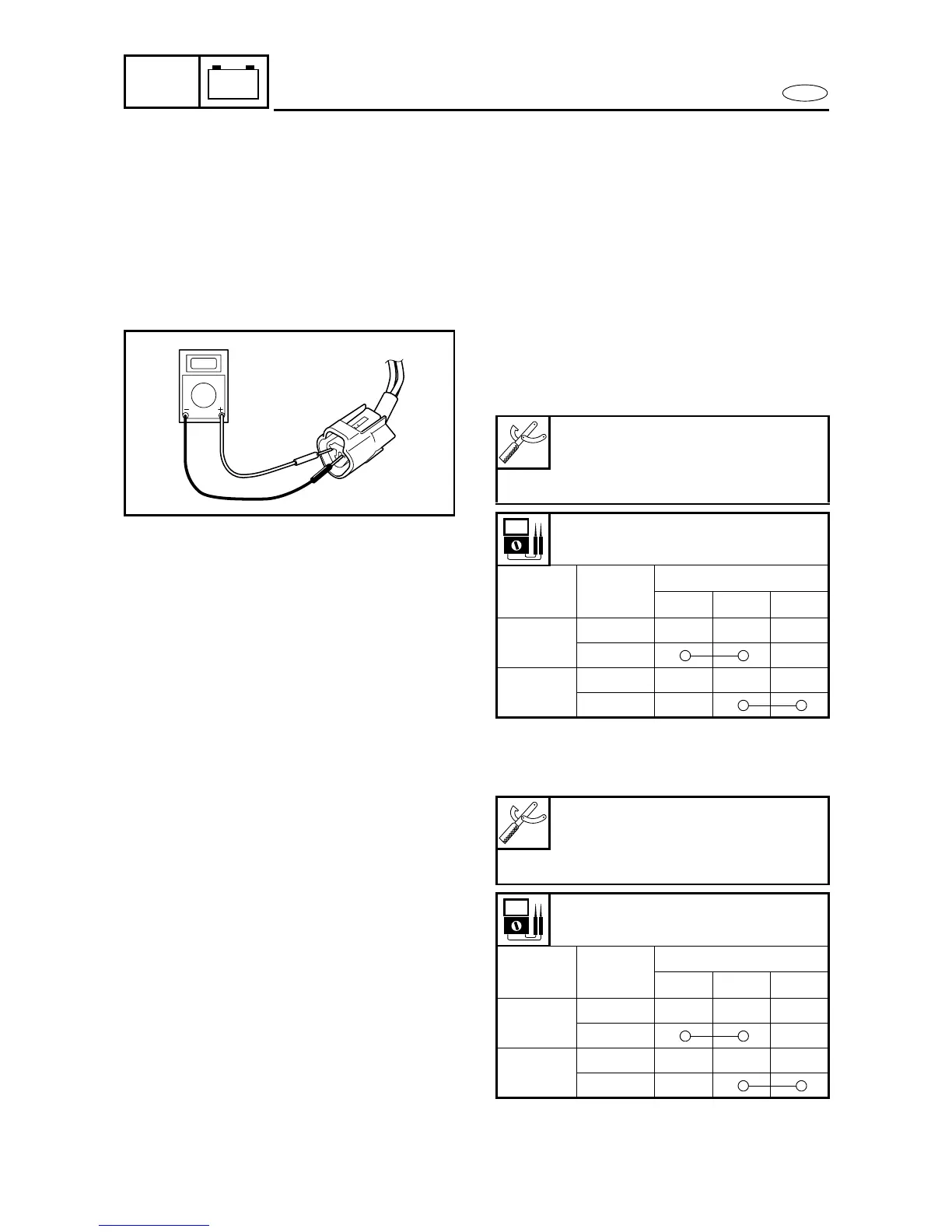

Operation button
1. Check:
• Left operation button continuity
Out of specification
→
Replace.
• Right operation button continuity
(FX Cruiser High Output)
Out of specification
→
Replace.
Digital multimeter:
YU-34899-A
Digital circuit tester:
90890-03174
Left operation button continuity
Button Position
Leads
Pu/W B G/W
Speed/
RPM
Free
Push
Volt/
Hour
Free
Push
Digital multimeter:
YU-34899-A
Digital circuit tester:
90890-03174
Right operation button continuity
Button Position
Leads
R/W B Y/W
Start/
Stop
Free
Push
Mode/
Reset
Free
Push
INDICATION SYSTEM
