Yamaha WaveRunner - Brush Holder Inspection; Starter Motor Front Cover Inspection

7-36
E
– +
ELEC
STARTER MOTOR

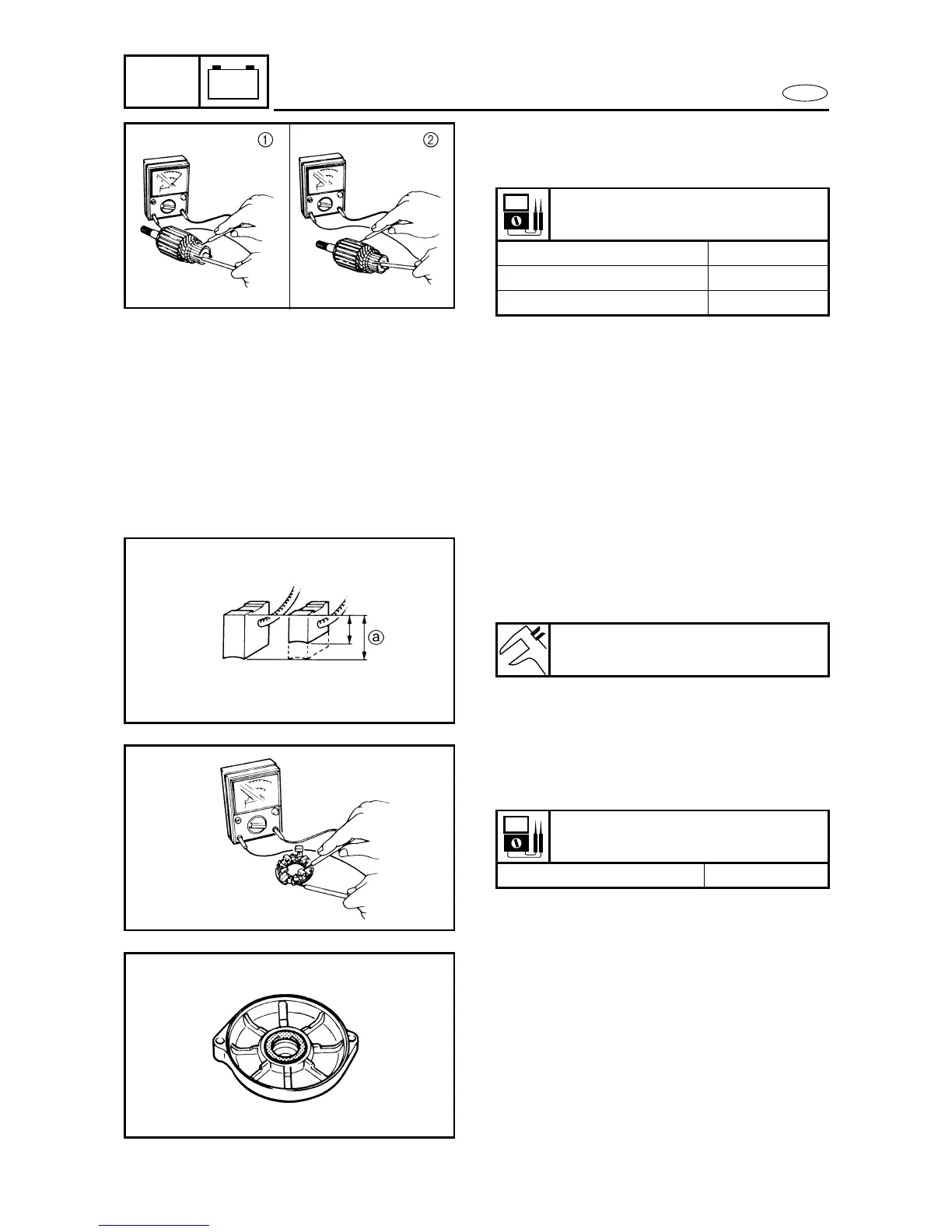

6. Inspect:
• Armature coil continuity
Out of specification
→
Replace.
Armature coil continuity:
Commutator segments
1
Continuity
Segment - Laminations
2
No continuity
Segment - Armature shaft No continuity
Brush holder inspection
1. Measure:
• Brush length
a
Below specification
→
Replace.
Minimum brush length:
6.5 mm (0.26 in)
2. Check:
• Brush holder continuity
Out of specification
→
Replace.
Brush holder continuity:
Brush holder - Base No continuity
Starter motor front cover inspection
1. Inspect:
• Starter motor front cover oil seal
Damage/wear
→
Replace the starter
motor front cover.
