8-34
E
HULL
HOOD
HOSES

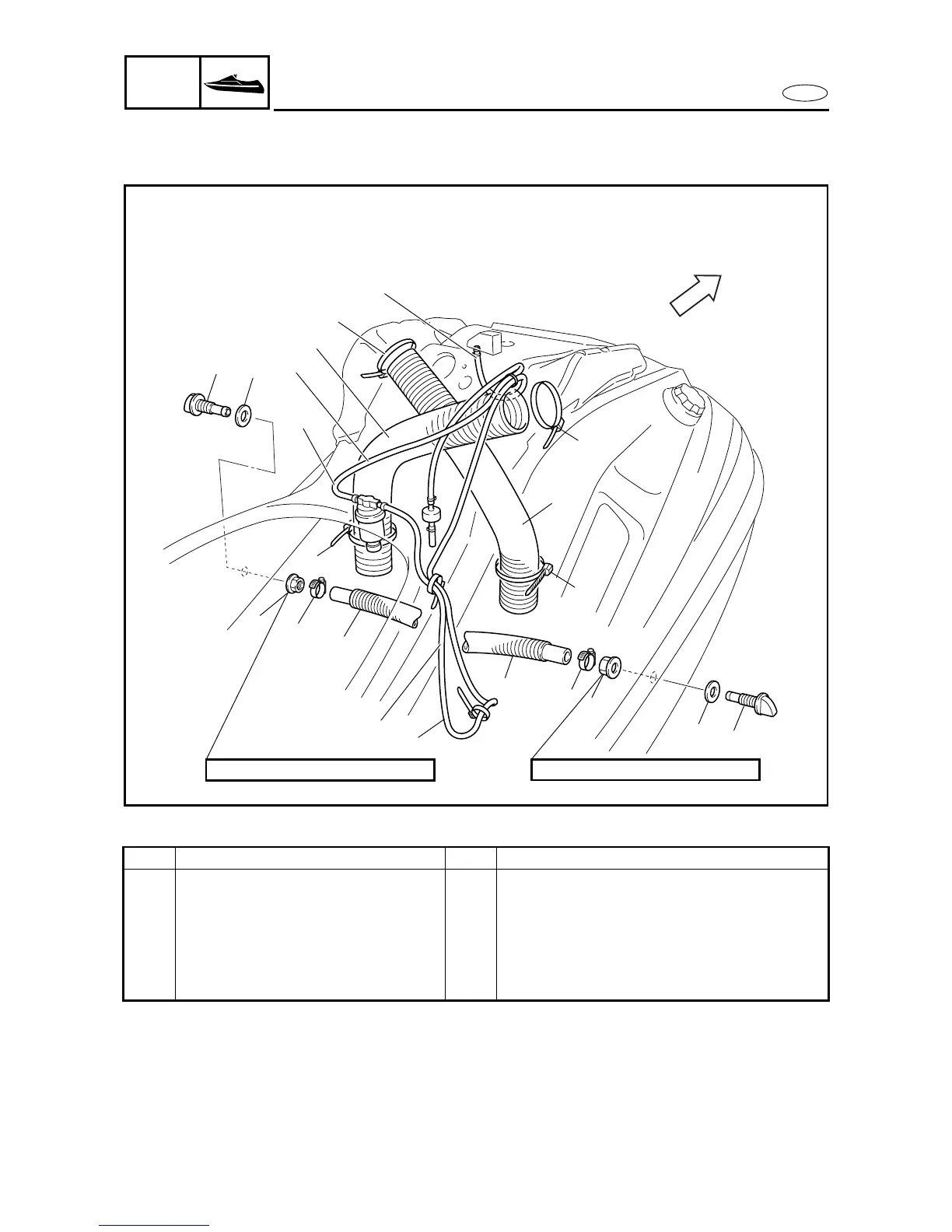

EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
4Clamp 2
5 Cooling water hose 2
6Nut 2
7 Cooling water pilot outlet 2
8 Seal 2
Reverse the removal steps for installation.
(VENT)
(VENT)
(VENT)
1
2
1
2
7
8
1
6
4
5
3
5
4
6
8
7
FWD
4.2 N • m (0.42 kgf • m, 3.0 ft • Ib)
4.2 N • m (0.42 kgf • m, 3.0 ft • Ib)
1
3
