Yamaha WaveRunner - Page 243

6-21
E
JET
PUMP
TRANSOM PLATE AND HOSES

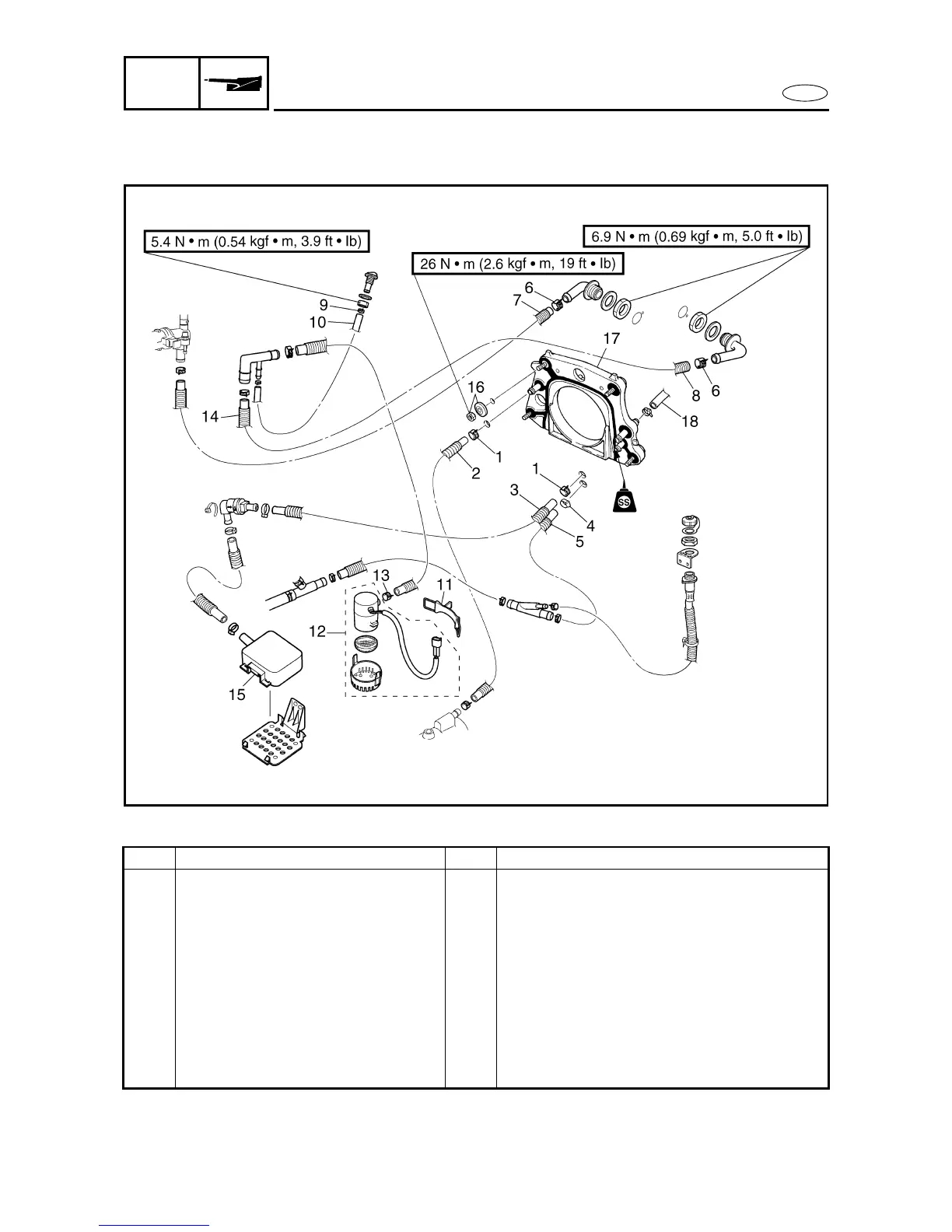

EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
6 Hose clamp 2
7 Cooling water hose 1 Cooling water outlet (thermostat)
8 Bilge hose 2 1
9 Hose clamp 1
10 Bilge hose 3 1
11 Band 1
12 Electric bilge pump assembly 1
13 Hose clamp 1
14 Bilge hose 4 1
15 Bilge strainer 1
