ELECTRICAL BOX

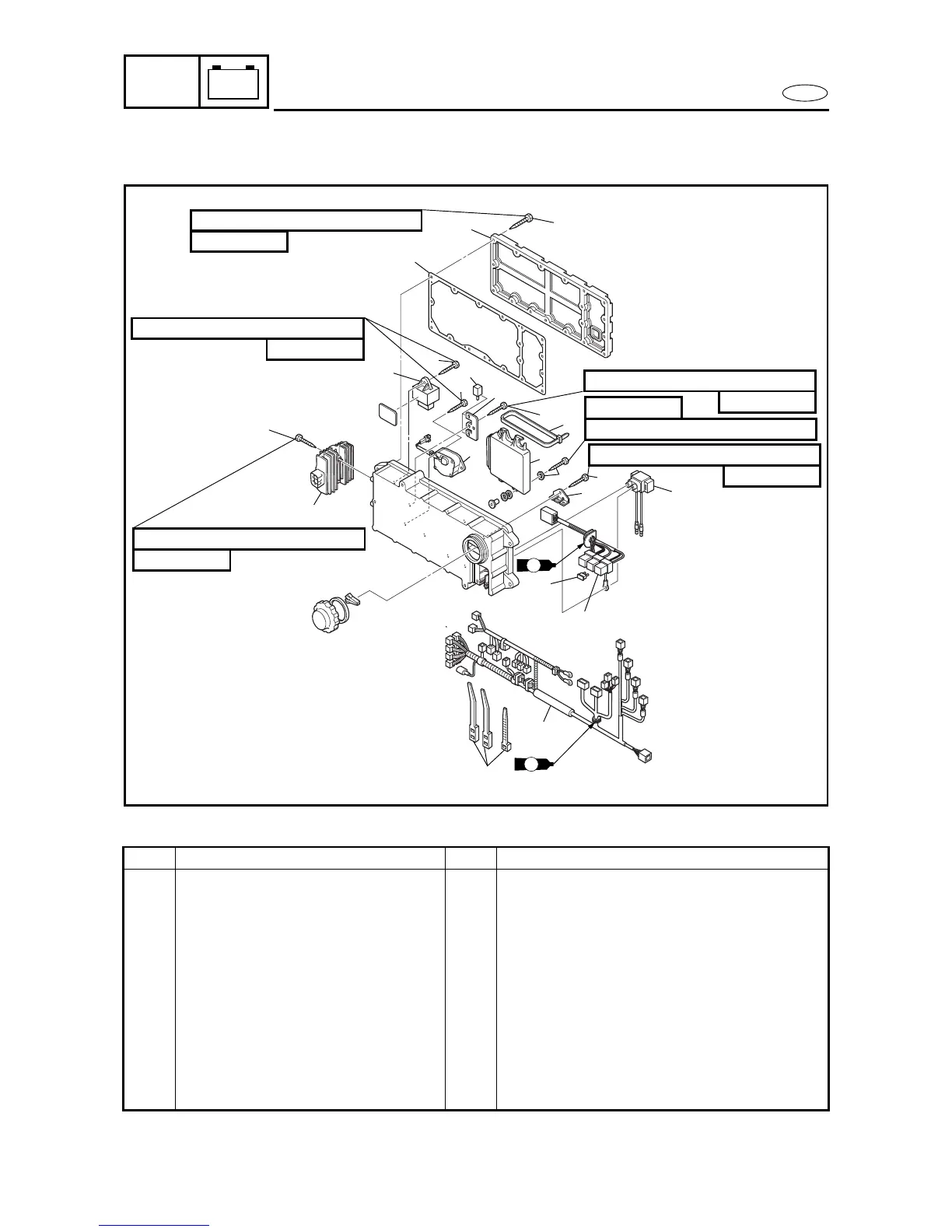

EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
10 Starter relay 1
11 Clamp 2
12 Tapping screw/washer 4/4
13 ECM 1
14 Tapping screw 1
15 Bracket 1
16 Joint connector 2
17 Tapping screw 2
18 Slant detection switch 1
19 Tapping screw 1
20 Main and fuel pump relay 1
2
3
1
19
20
18
17
16
14
11
15
13
12
6
7
8
5
4
22
21
6 × 20 mm
3.9 N • m (0.39
kgf
•
m, 2.8 ft
•
Ib)
6 × 30 mm
3.9 N • m (0.39
kgf
•
m, 2.8 ft
•
Ib)
6 × 16 mm
3.9 N • m (0.39
kgf
•
m, 2.8 ft
•
Ib)
3.9 N • m (0.39
kgf
•
m, 2.8 ft
•
Ib)
6 × 30 mm
3.9 N • m (0.39
kgf
•
m, 2.8 ft
•
Ib)
6 × 16 mm
4.9 N
•
m (0.49
kgf • m, 3.5 ft • Ib)
5 × 30 mm
4
4
9
10
