ELEC

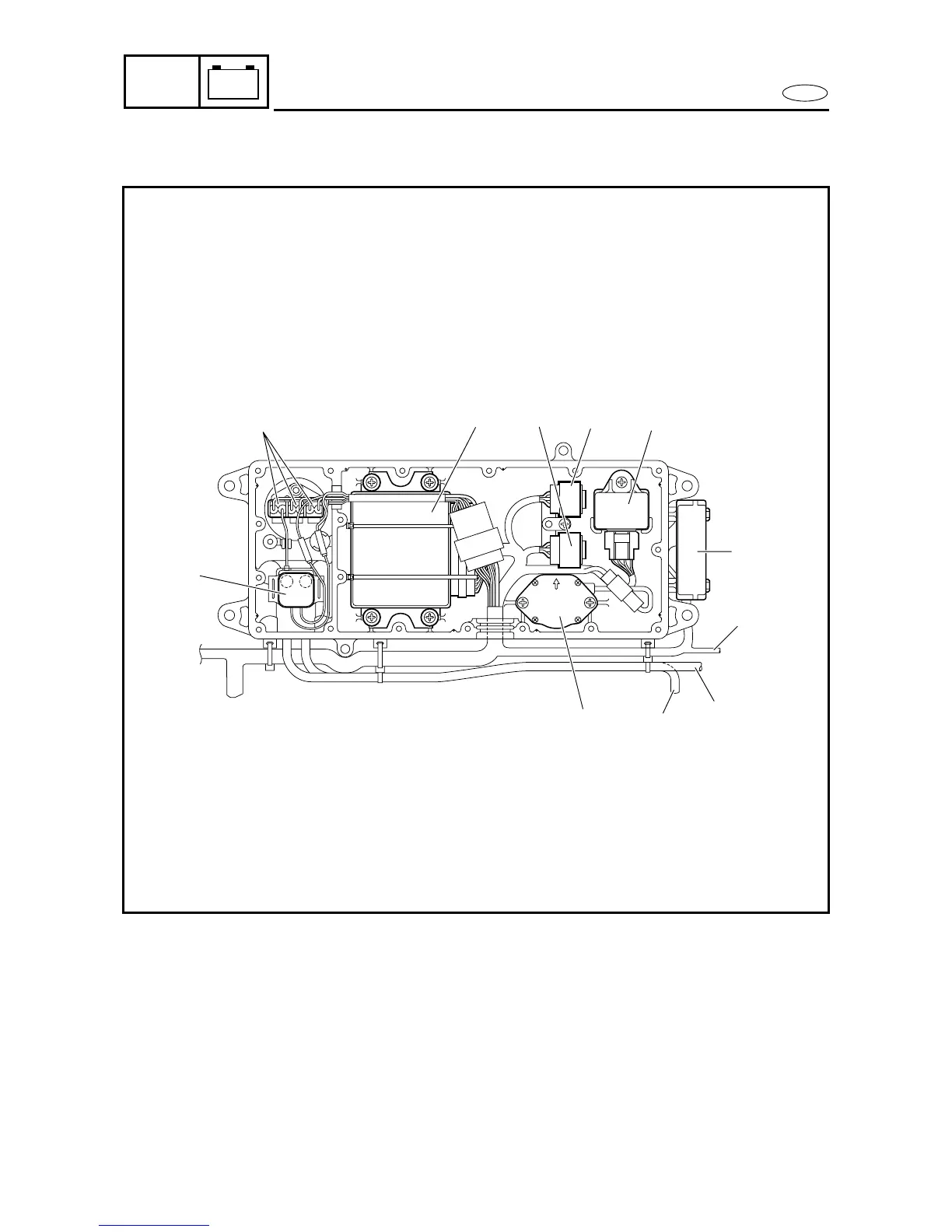

ELECTRICAL BOX
UP
2
3
4
5
6
7
8
1
Ê
É
È
1 Starter relay
2 Fuse holder
3 ECM
4 Joint connector
5 Joint connector
6 Main and fuel pump relay
7 Rectifier/regulator
8 Slant detection switch
È To ignition coil
É To battery positive terminal
Ê To starter motor
