HULL
HOOD
HANDLEBAR

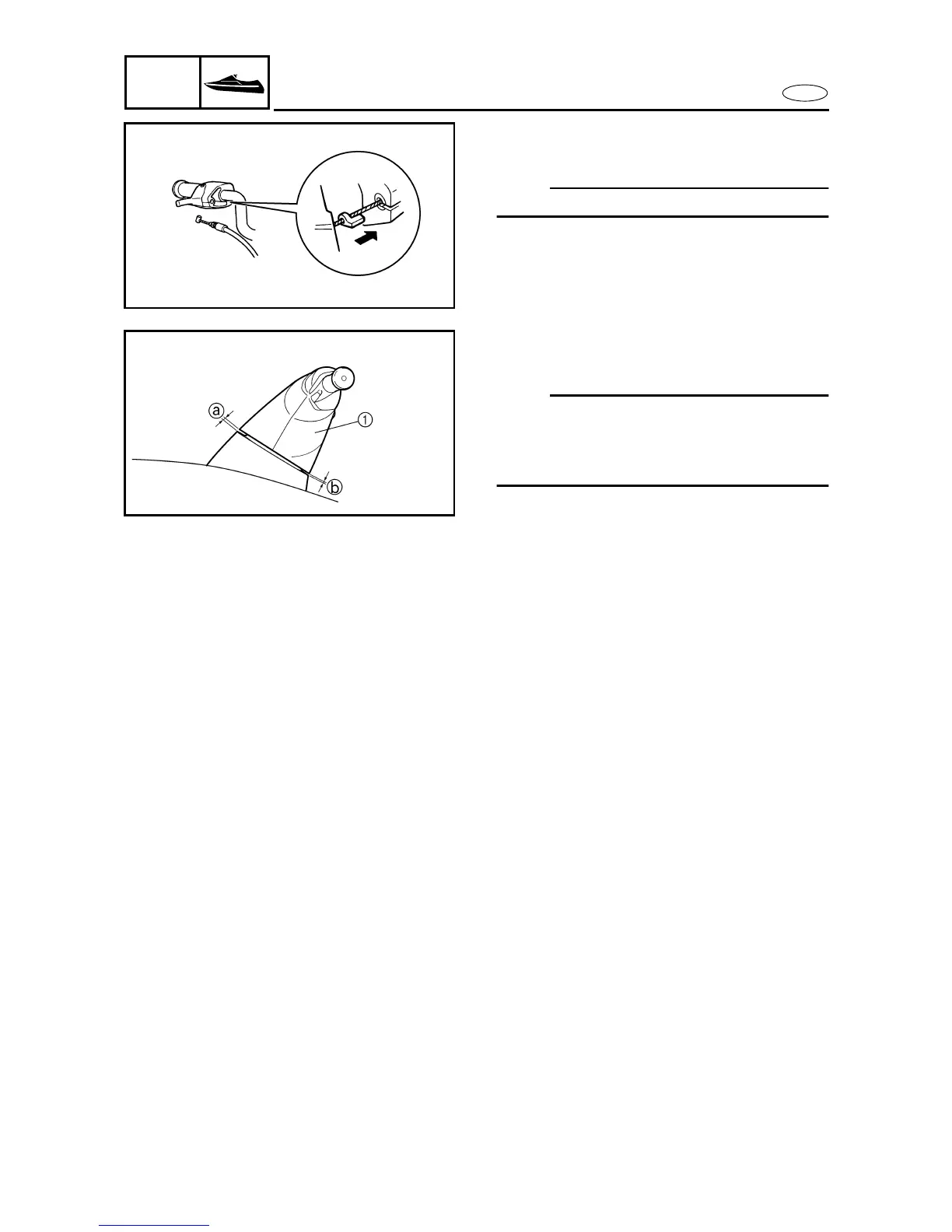

3. Install:
• Throttle cable
NOTE:
Fit the seal into the groove in the bracket.
4. Install:
• Handlebar cover
1
NOTE:
When the handlebar cover is in contact with
the steering boss cover, adjust the handlebar
mount angle so that the clearance
a
and
b
are equal.
5. Adjust:
• Throttle cable free play
Refer to “CONTROL SYSTEM” in Chap-
ter 3.
6. Adjust:
• QSTS cable
Refer to “CONTROL SYSTEM” in Chap-
ter 3.
