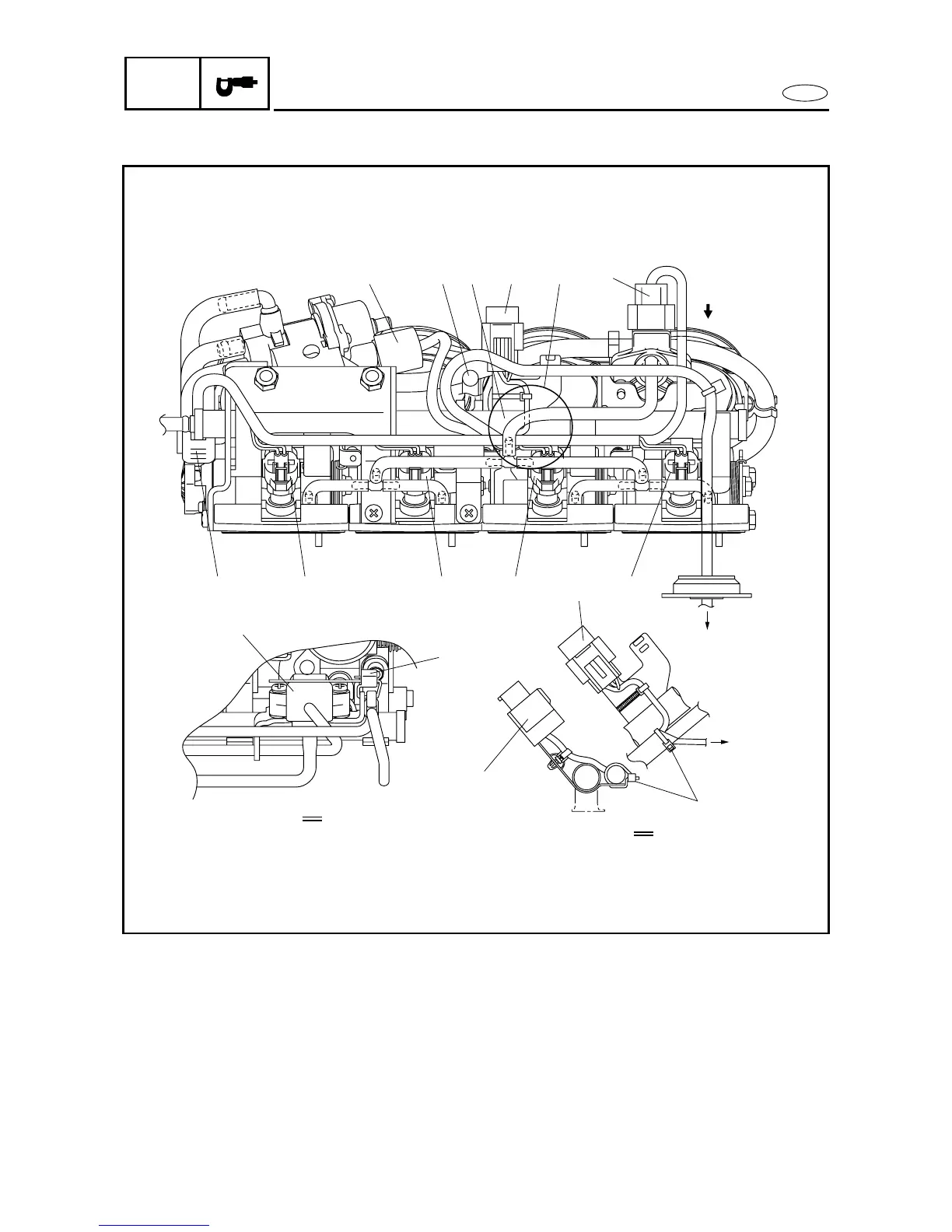

CABLE AND HOSE ROUTING (For FX High Output/
FX Cruiser High Output)
1
2
3
4
5
6
7
8
3
2
2
A
B
A
É
Ê
È
Í
Ì
Ë
B
1 Bypass valve motor coupler
2 Joint coupler
3 Sensor assembly coupler
4 Fuel injector #4 coupler
5 Fuel injector #3 coupler
6 Fuel injector #2 coupler
7 Fuel injector #1 coupler
8 Throttle position sensor cou-
pler
È To wiring harness
É Route the throttle cable
between the sub-wiring har-
ness.
Ê Route the sub-wiring harness
under the intake vacuum hose.
Ë To fuel injector #3 coupler
Ì Fasten the sub-wiring harness
to the joint coupler bracket with
a plastic tie as shown in the
illustration.
Í Fasten the ring, which is
attached to the sub-wiring har-
ness, to the sensor assembly
bracket with a plastic tie. Face
the end of the plastic tie
towards the sensor assembly.
