2-24
E
SPEC

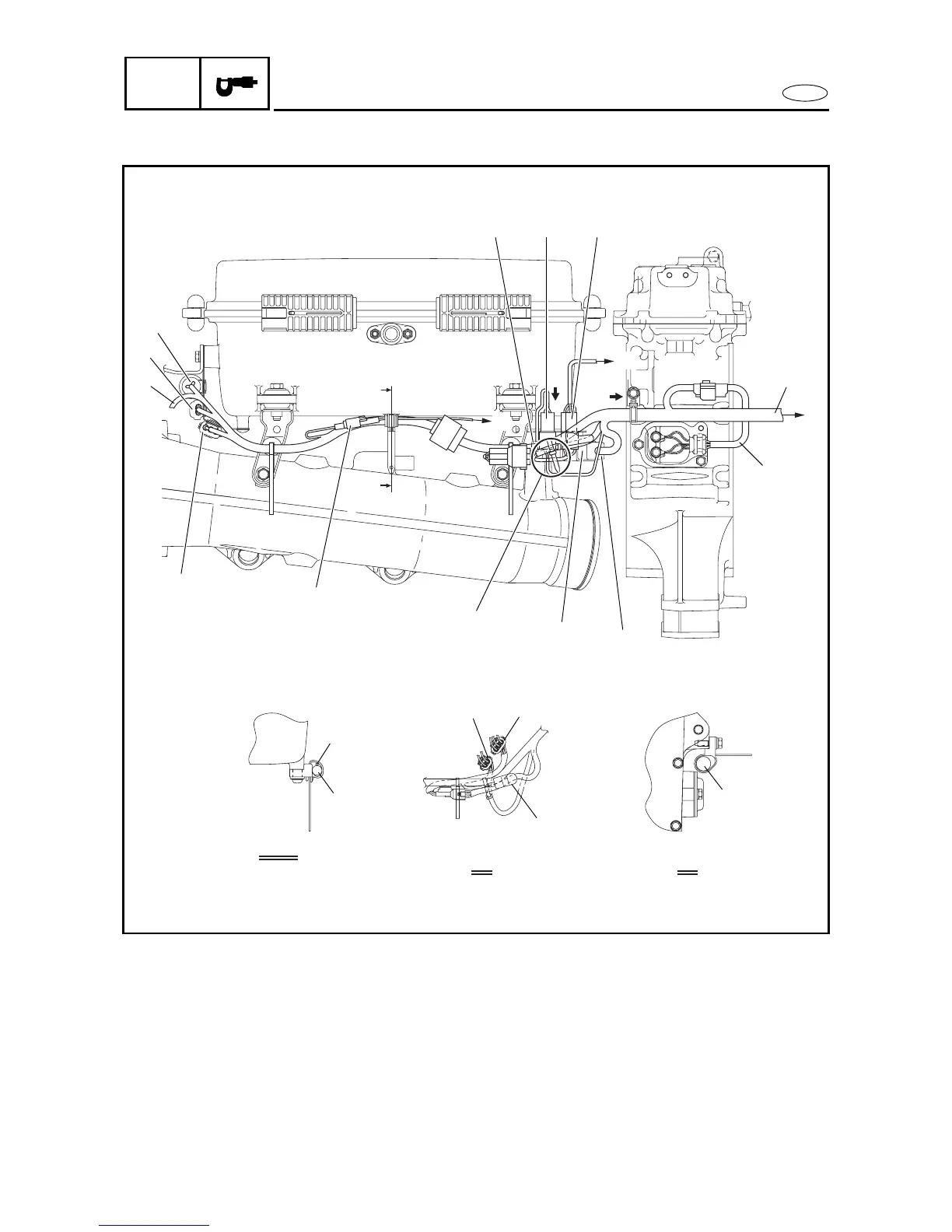

CABLE AND HOSE ROUTING
B
A
A
A-A
CB
3
4
0
9
5
6
7
8
2
1
Ì
Ë
É
È
C
A
Ê
0
A
4
B
1
1
1 Wiring harness
2 Ground lead
3 Wiring harness coupler
4 Noise filter
5 Oil pressure switch coupler
6 Pickup coil coupler
7 Thermoswitch (engine) coupler
8 Lighting coil coupler
9 Thermoswitch (exhaust)
0 Thermoswitch (exhaust) coupler
A Cam position sensor coupler
B Oil pressure switch lead
È To electrical box
É To cam position sensor
Ê Fasten the plastic tie with its end facing down-
ward.
Ë To oil pressure switch
Ì To engine temperature sensor
