2-26
E
SPEC

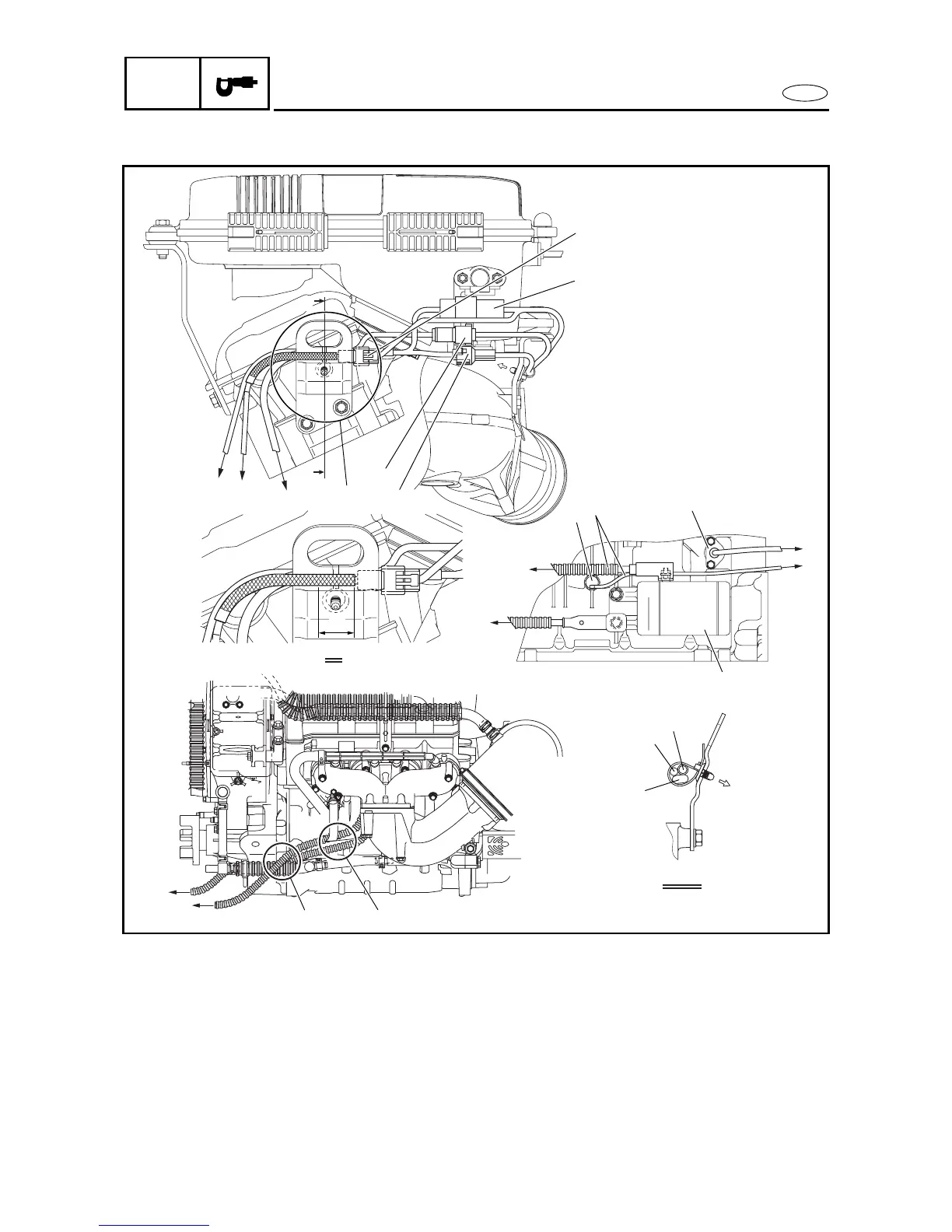

CABLE AND HOSE ROUTING
A
A
1
2
4
3
7
5
6
0
9
8
A-A
Ë
Ê
É
Ì
Í
Î
Ð
Ï
Ñ
Ò
Ï
Ð
B
B
È
È Fasten the engine temperature sensor lead, ther-
moswitch lead, and lighting coil lead with a plastic
tie. Fasten the engine temperature sensor lead
10–20 mm (0.4–0.8 in) from the end of the protec-
tive cover of the lead.
É To generator
Ê To engine temperature sensor
Ë To thermoswitch (engine)
Ì To thermoswitch (engine) coupler
Í To engine temperature sensor coupler
Î Route the starter motor lead to the outside of the
engine temperature sensor lead.
Ï To starter relay
Ð To negative battery terminal
Ñ Route the starter motor and negative battery
leads behind the cooling water hose.
Ò Route the starter motor lead over the cooling
water hose.
