3-12
E
INSP
ADJ
POWER UNIT

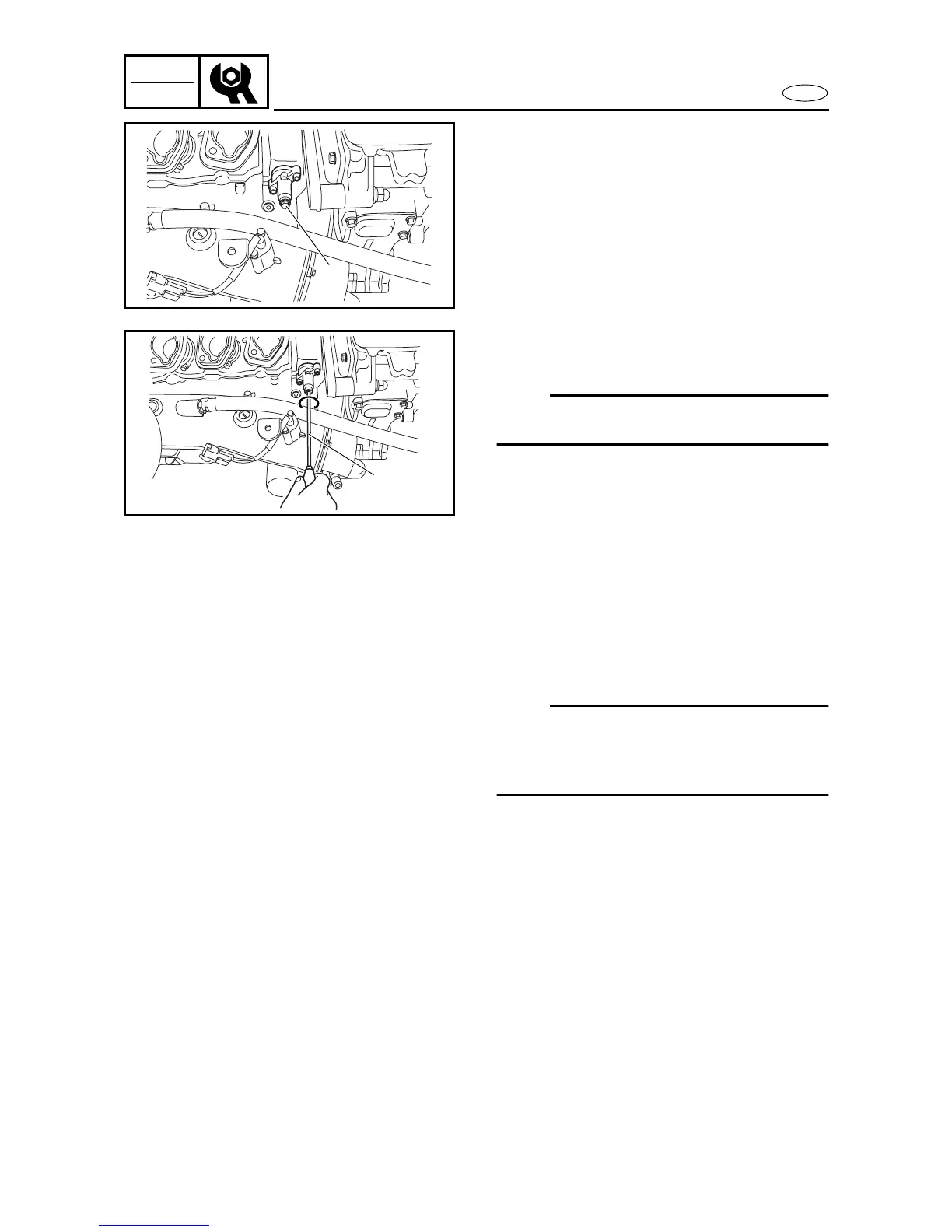

5. Remove:
• Timing chain tensioner cap bolt
1
• Gasket
1
6. Turn the timing chain tensioner rod fully
clockwise with a thin screwdriver
1
.
NOTE:
Make sure that the tensioner rod has been fully
set clockwise.
1
7. Remove:
• Intake camshaft caps
• Exhaust camshaft caps
• Timing chain
(from the camshaft sprockets)
• Intake camshaft
• Exhaust camshaft
NOTE:
• Refer to “CAMSHAFTS” in Chapter 5.
• When removing the timing chain and cam-
shafts, fasten the timing chain with a wire to
prevent it from falling into the crankcase.
To Next Page
