4-18
E
FUEL

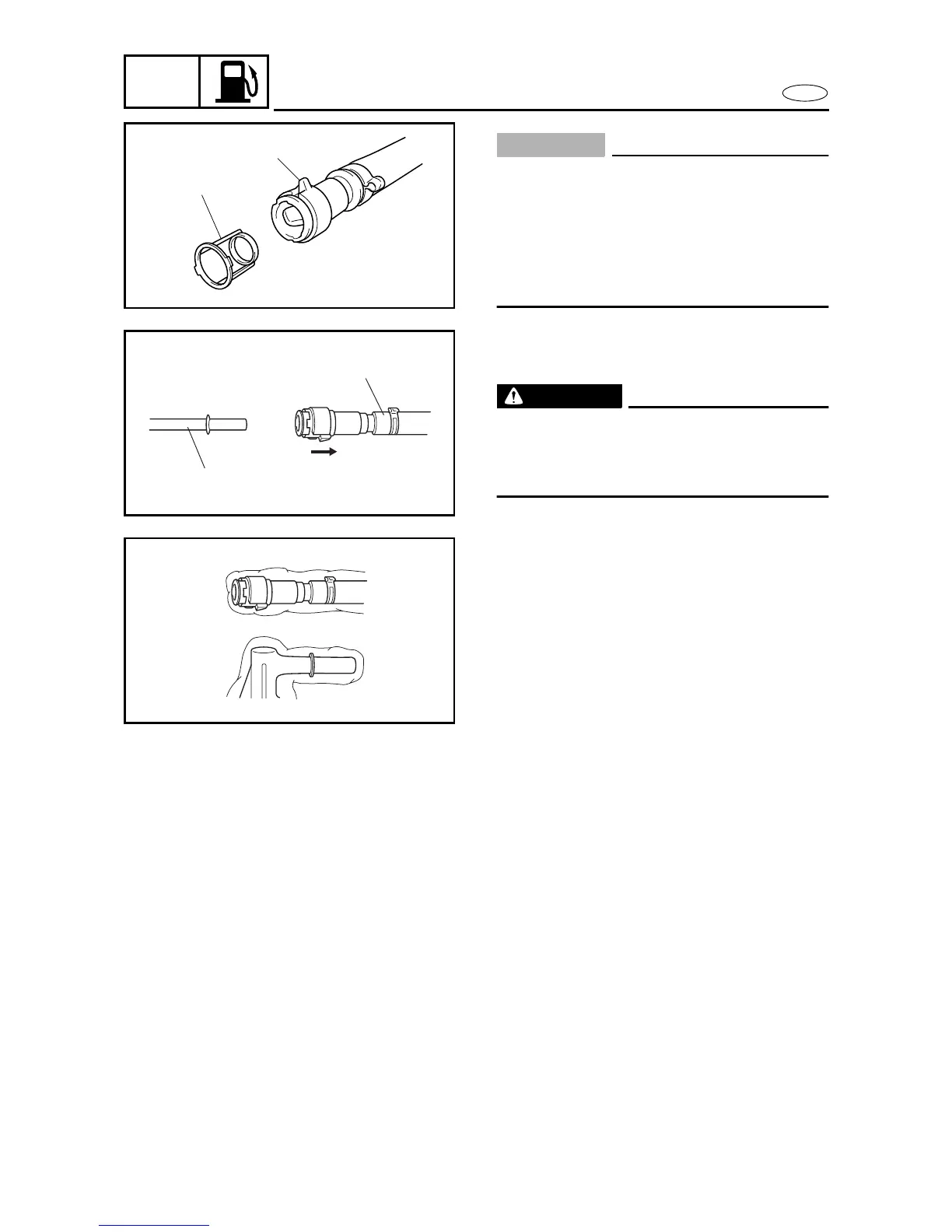

CAUTION:
• Do not rotate the quick connector tab
1
past the stopper position
a
, otherwise it
could be damaged.
• When the fuel hoses are disconnected,
quickly remove the retainer
2
from the
quick connector, otherwise the retainer
could be lost.
2. Disconnect the fuel hose
1
from the fuel
pipe
2
directly.
WARNING
Always reduce the fuel pressure in the fuel
line before servicing the line or the fuel
pipe. If the fuel pressure is not released,
pressurized fuel could spray out.
2
1
1
2
3. Cover the quick connector and fuel pipe
with a plastic bag to prevent damage and
to protect them from dirt.
Fuel line inspection
1. Inspect:
• Fuel hose
Damage/cracks
→
Replace.
• O-rings (quick connector)
Damage/cracks
→
Replace the quick
connector.
• Fuel pipe
Damage/cracks
→
Replace the fuel
pump.
FUEL INJECTION SYSTEM
