YASKAWA A1000 Series Technical Manual

6.3 Drive Alarms, Faults, and Errors
302 YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual

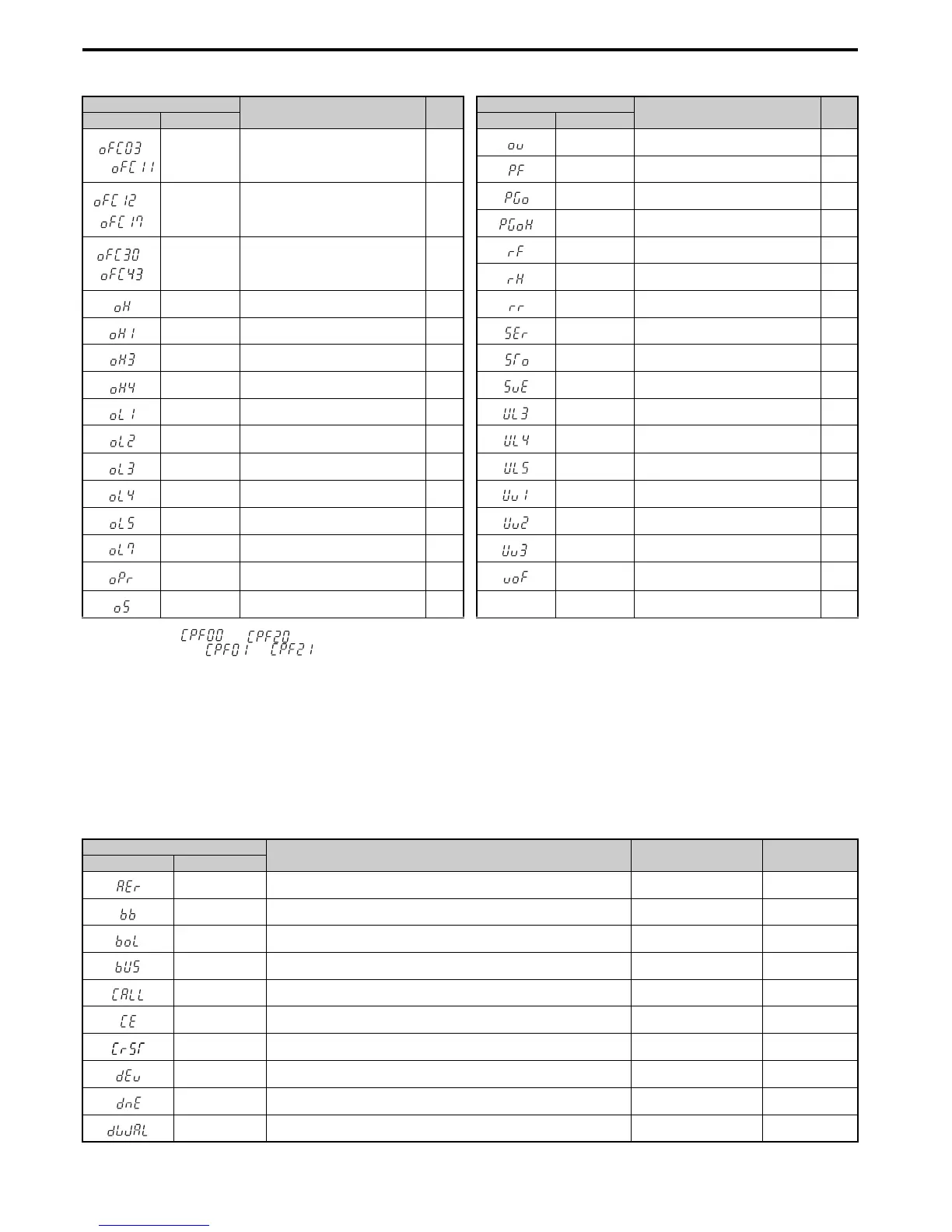

Table 6.10 Fault Displays (2)
■ Minor Faults and Alarms
Table 6. 11 give an overview of possible alarm codes. As conditions such as overvoltage can trip both a fault and alarm, it
is important to distinguish between faults and alarms in order to find the right corrective action.
If an alarm is detected, the ALM LED will blink and the alarm code display flashes. The majority of alarms will trigger a
digital output programmed for alarm output (H2- = 10). If the ALM LED lights without blinking, this means that a
fault has been detected (not an alarm). Information on fault codes can be found in Faults on page 301.
Table 6.11 Minor Fault and Alarm Displays
Digital Operator Display
Name Page
Digital Operator Display
Name Page
LED Operator LCD Operator LED Operator LCD Operator
,
<1> Displayed as or when occurring at drive power up. When one of the faults occurs after successfully starting the drive, the
display will show or .
oFC03, oFC11 Option Card Error (CN5-C) 313
ov Overvoltage 315
PF Input Phase Loss 316
to
oFC12 to oFC17 Option Card Connection Error (CN5-C) 313
PGo PG Disconnect (for Control Mode with PG) 316
PGoH PG Hardware Fault (when using PG-X3) 316
to
oFC30 to
oFC43
Option Card Fault (CN5-C) 313
rF Braking Resistor Fault 316
rH Dynamic Braking Resistor 316
oH Heatsink Overheat 313 rr Dynamic Braking Transistor 316
oH1 Heatsink Overheat 313 SEr Too Many Speed Search Restarts 316
oH3 Motor Overheat 1 (PTC input) 313 STo Pull-Out Detection 317
oH4 Motor Overheat 2 (PTC input) 313 SvE Zero-Servo Fault 317
oL1 Motor Overload 314 UL3 Undertorque Detection 1 317
oL2 Drive Overload 314 UL4 Undertorque Detection 2 317
oL3 Overtorque Detection 1 314 UL5 Mechanical Weakening Detection 2 317
oL4 Overtorque Detection 2 314 Uv1 Undervoltage 317
oL5 Mechanical Weakening Detection 1 314 Uv2 Control Power Supply Undervoltage 318
oL7 High Slip Braking oL 315 Uv3 Soft Charge Circuit Fault 318
oPr Operator Connection Fault 315 voF Output Voltage Detection Fault 318
oS Overspeed (for Control Mode with PG) 315 ––– –
Digital Operator Display
Name
Minor Fault Output
(H2- = 10)
Page
LED Operator LCD Operator
AEr SI-T Station Number Setting Error (CC-Link, CANopen, MECHATROLINK-II) YES 319
bb Drive Baseblock No output 319
boL Braking Transistor Overload Fault YES 319
bUS Option Card Communications Error YES 319
CALL Serial Communication Transmission Error YES 319
CE MEMOBUS/Modbus Communication Error YES 320
CrST Cannot Reset YES 320
dEv Excessive Speed Deviation (for Control Mode with PG) YES 320
dnE Drive Disabled YES 320
dWAL DriveWorksEZ Alarm YES 308

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
