6.3 Drive Alarms, Faults, and Errors
YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual 301
Troubleshooting
6
◆ Alarm and Error Displays
■ Faults
Table 6.9 gives an overview of possible fault codes. As conditions such as overvoltage can trip both a fault and an alarm,
it is important to distinguish between faults and alarms in order to find the right corrective action.
When the drive detects a fault, the ALM indicator LEDs lights and the fault code appears on the display. The drive fault
contact MA-MB-MC will be triggered. If the ALM LED blinks and the code appearing on the operator screen is flashes,
then an alarm has been detected. See Minor Faults and Alarms on page 302 for a list of alarm codes.

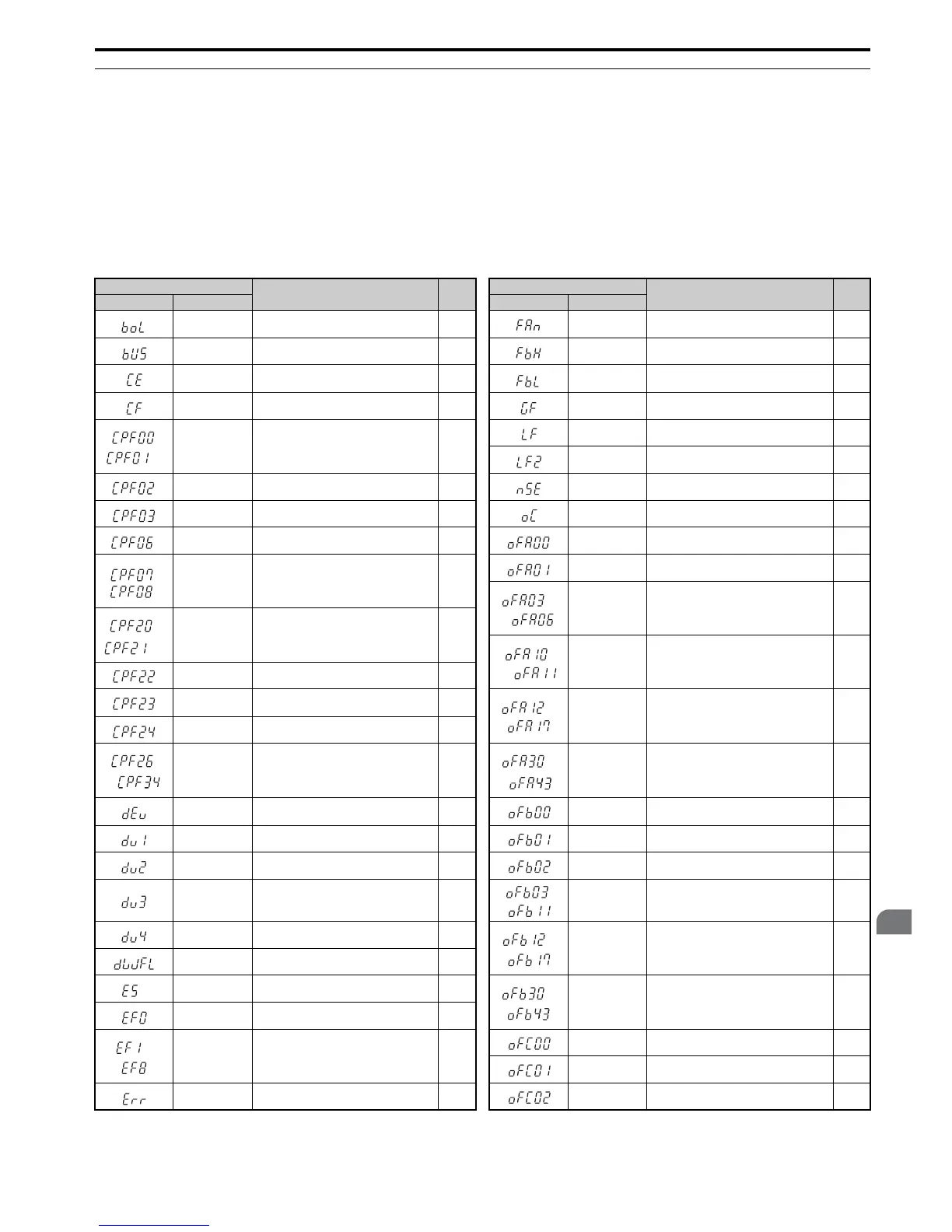

Table 6.9 Fault Displays (1)
Digital Operator Display
Name Page
Digital Operator Display
Name Page
LED Operator LCD Operator LED Operator LCD Operator
boL Braking Transistor Overload Fault 306 FAn Internal Fan Fault 309
bUS Option Communication Error 306 FbH Excessive PID Feedback 309
CE
MEMOBUS/Modbus Communication
Error
306 FbL PID Feedback Loss 310
CF Control Fault 306 GF Ground Fault 310
,
<1>
CPF00, CPF01 Control Circuit Error 306
LF Output Phase Loss 310
LF2 Current Imbalance 310
CPF02 A/D Conversion Error 306 nSE Node Setup Error 310
CPF03 Control Board Connection Error 307 oC Overcurrent 311
CPF06 EEPROM Memory Data Error 307 oFA00 Option Card Connection Error (CN5-A) 311
,
CPF07,
CPF08
Terminal Board Connection Error 307
oFA01 Option Card Fault (CN5-A) 311
to
oFA03 to oFA06 Option Card Error (CN5-A) 311
,
<1>
CPF20, CPF21 Control Circuit Error 307
,
oFA10, oFA11 Option Card Error (CN5-A) 311
CPF22 Hybrid IC Error 307
CPF23 Control Board Connection Error 307
to
oFA12 to oFA17 Option Card Connection Error (CN5-A) 311
CPF24 Drive Unit Signal Fault 307
to
CPF26 to CPF34 Control Circuit Error 307
to
oFA30 to oFA43 Option Card Connection Error (CN5-A) 311
dEv
Excessive Speed Deviation (for Control
Mode with PG)
308 oFb00 Option Card Connection Error (CN5-B) 312
dv1 Z Pulse Fall Detection 308 oFb01 Option Card Fault (CN5-B) 312
dv2 Z Pulse Noise Fault Detection 308 oFb02 Option Card Fault (CN5-B) 312
dv3 Inversion Detection 308
,
oFb03, oFb11 Option Card Error (CN5-B) 312
dv4 Inversion Prevention Detection 308
to
oFb12 to oFb17 Option Card Connection Error (CN5-B) 312
dWFL DriveWorksEZ Fault 308
E5 SI-T3 Watchdog Timer Error 308
to
oFb30 to oFb43 Option Card Connection Error (CN5-B) 312
EF0 Option Card External Fault 309
to
EF1 to EF8 External Fault (input terminal S1 to S8) 309
oFC00 Option Card Connection Error (CN5-C) 312
oFC01 Option Card Fault (CN5-C) 312
Err EEPROM Write Error 309 oFC02 Option Card Fault (CN5-C) 312

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
