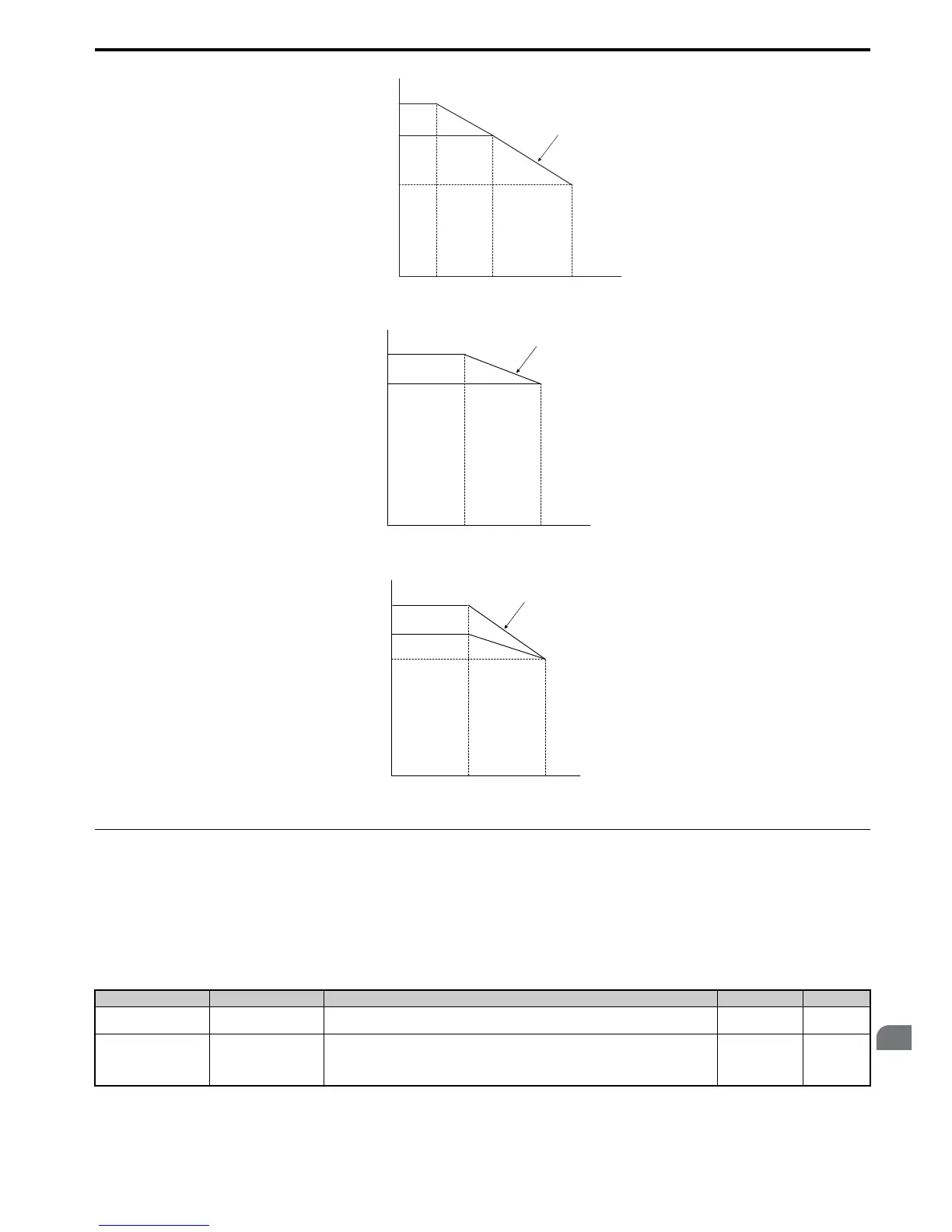

A.6 Drive Derating Data
YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual 395
Specifications
A
Figure A.4
Figure A.4 Carrier Frequency Derating (CIMR-A4A0139 to 4A0362)
Figure A.5
Figure A.5 Carrier Frequency Derating (CIMR-A4A0414)
Figure A.6
Figure A.6 Carrier Frequency Derating (CIMR-A4A0515 and 4A0675)
Temperature Derating
To ensure the maximum performance life, the drives output current must be derated like shown in Figure A.7 when the
drive is installed in areas with high ambient temperature or if drives are Side-by-Side mounted in a cabinet. In order to
ensure reliable drive overload protection, the parameters L8-12 and L8-35 must also be set according to the installation
conditions.
Parameter Settings
No. Name Description Range Def.
L8-12
Ambient Temperature
Setting
Adjust the drive overload (oL2) protection level when the drive is installed in an environment
that exceeds its ambient temperature rating.
-10 to 50 40°C
L8-35
Installation Method
Selection
0: IP00 Enclosure
1: Side-by-Side Mounting
2: NEMA Type 1 Enclosure
3: Finless Drive or External Heatsink Installation
0 to 3 0
Normal Duty
Heavy Duty
70% of HD
2 kHz 5 kHz 10 kHz0
4A0139 to 4A0362
YEG
5 kHz2 kHz0
4A0414
Normal Duty
Heavy Duty
YEG
5 kHz
2 kHz
0
4A05154A0675
Normal Duty
Heavy Duty
83% of HD
YEG
