YASKAWA A1000 Series Technical Manual

1.5 Component Names
YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual 35
Receiving
1
◆ Front Views
Figure 1.2

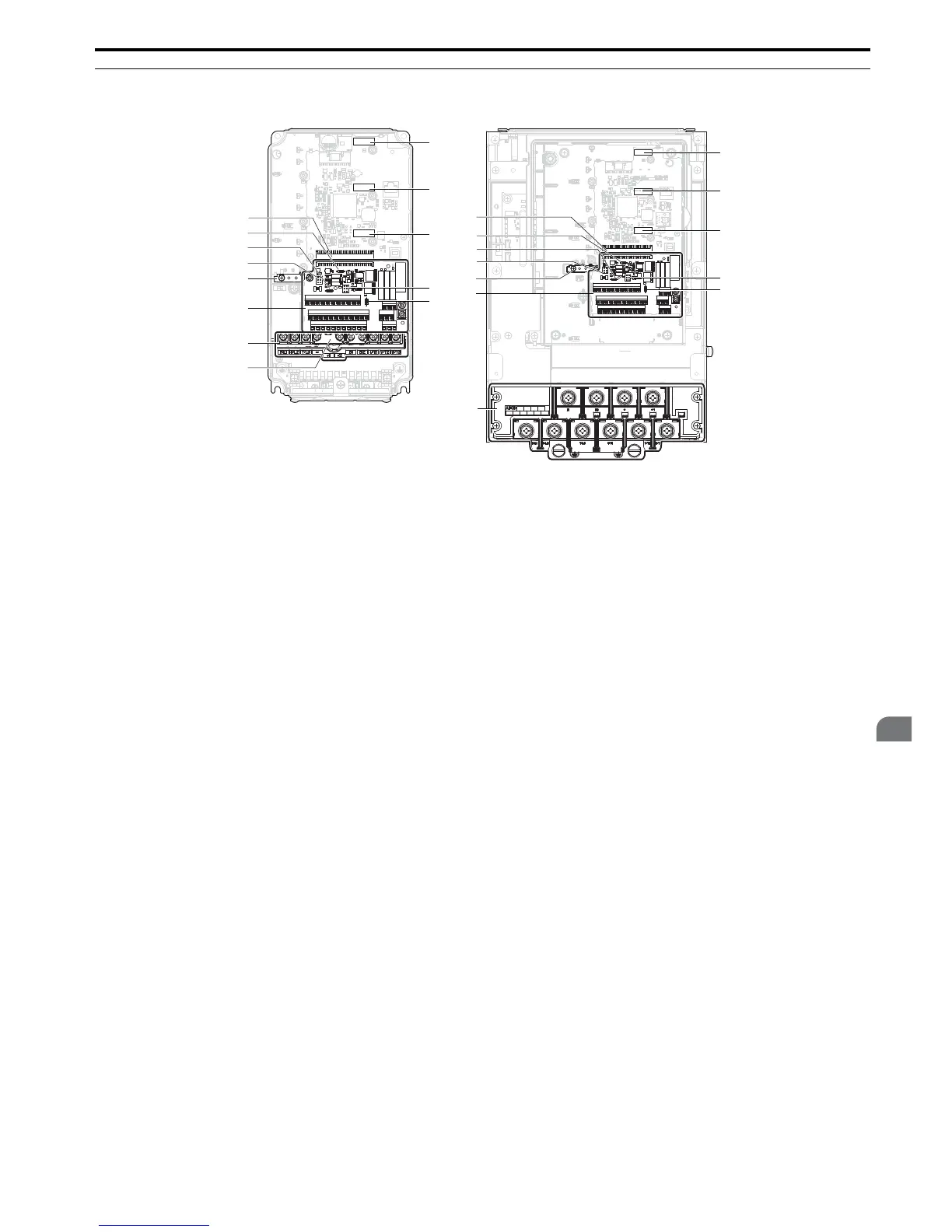

Figure 1.2 Front View of Drives
A – Terminal board connector H – Protecting cover to prevent miswiring
B – DIP switch S1 (Refer to Terminal A2
Input Signal Selection on page 79)
I – Option card connector (CN5-C)
C – DIP switch S2 (Refer to MEMOBUS/
Modbus Termination on page 80)
J – Option card connector (CN5-B)
D–Jumper S3 (Refer to Sinking/Sourcing
Mode Selection for Safe Disable
Inputs on page 77)
K – Option card connector (CN5-A)
E – Ground terminal L – Jumper S5 (Refer to Terminal AM/FM
Signal Selection on page 79)
F – Terminal board (Refer to Control
Circuit Wiring on page 72)
M – DIP Switch S4 (Refer to Terminal A3
Analog/PTC Input Selection on
page 79)
G – Main circuit terminal (Refer to Wiring
the Main Circuit Terminal on page 71)
A
I
K
J
H
G
F
E
B
CIMR-A2A0012F
C
D
A
G
F
E
B
C
D
K
J
I
CIMR-A2A0110A
L
M
L
M
YEG

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
