YASKAWA A1000 Series Technical Manual

1.5 Component Names
34 YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual
■ Three-Phase AC400 V CIMR-A4A0414A

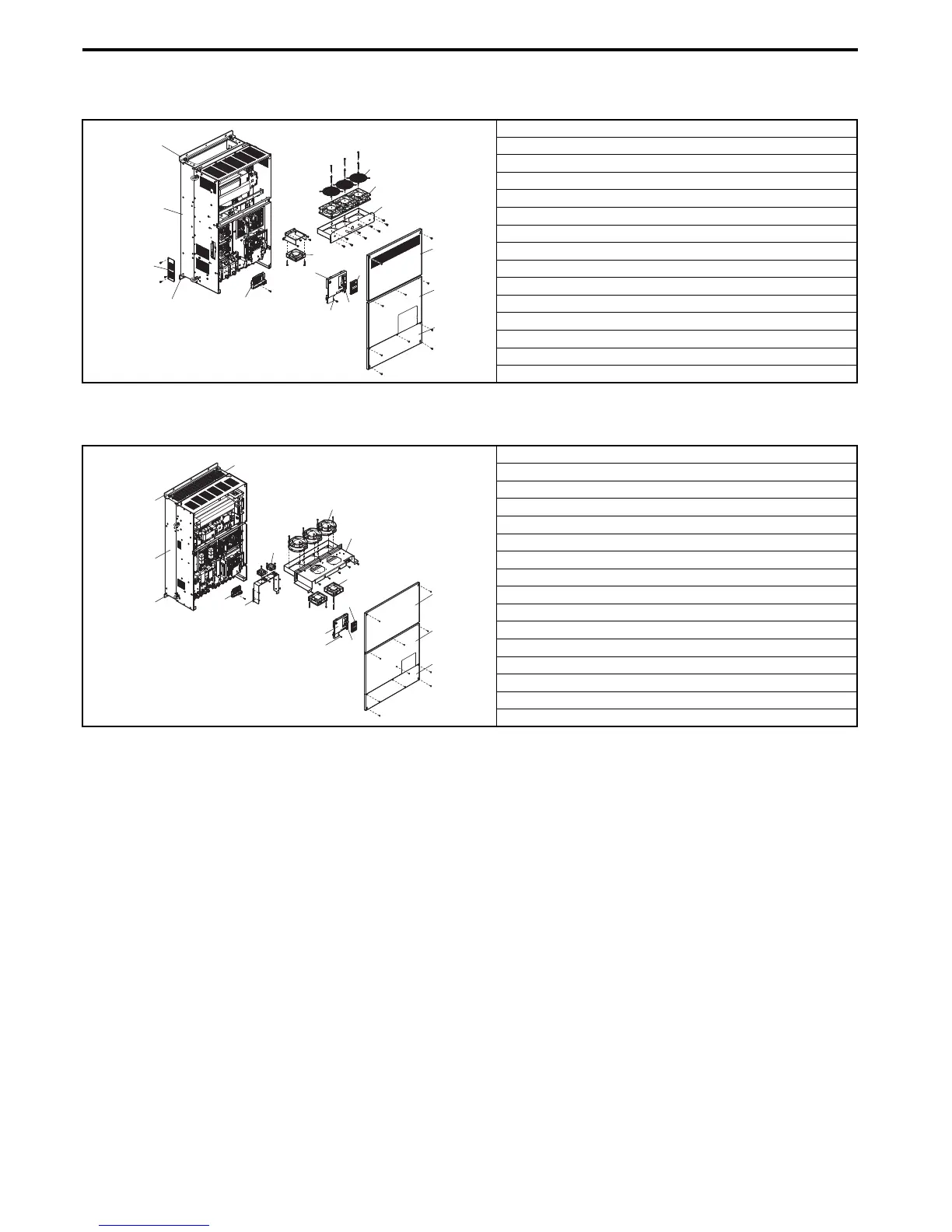

Table 1.8 Exploded view of IP00 Enclosure Type Components (CIMR-A4A0414A)
■ Three-Phase AC400 V CIMR-A4A0515A, 0675A
Table 1.9 Exploded view of IP00 Enclosure Type Components (CIMR-A4A0515A, 0675A)
A - Mounting hole
B - Heatsink
C - Optional 24 V DC power supply connector cover
D - Terminal board
E - Fan guard
F - Cooling fan
G - Fan unit
H - Circulation fan
I - Front cover
J - USB port (type-B)
K - Digital operator
L - Front cover screw
M - Drive cover 1
N - Drive cover 2
O - Terminal cover
A - Mounting hole
B - Heatsink
C - Terminal board
D - Fan guard
E - Cooling fan
F - Fan unit
G - Circulation fan
H - Circuitboard cooling fan
I - Circuitboard cooling fan unit case
J - Front cover
K - USB port (type-B)
L - Digital operator
M - Front cover screw
N - Drive cover 1
O - Drive cover 2
P - Terminal cover
A
B
C
A
D
H
I
L
J
K
N
O
G
F
E
M
A
B
A
C
I
H
F
E
D
G
L
J
M
K
N
O
P

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
