YASKAWA A1000 Series Technical Manual

1.5 Component Names
YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual 33
Receiving
1
■ Three-Phase AC200 V CIMR-A2A0169A to 0312A
Three-Phase AC400 V CIMR-A4A0139A to 0208A

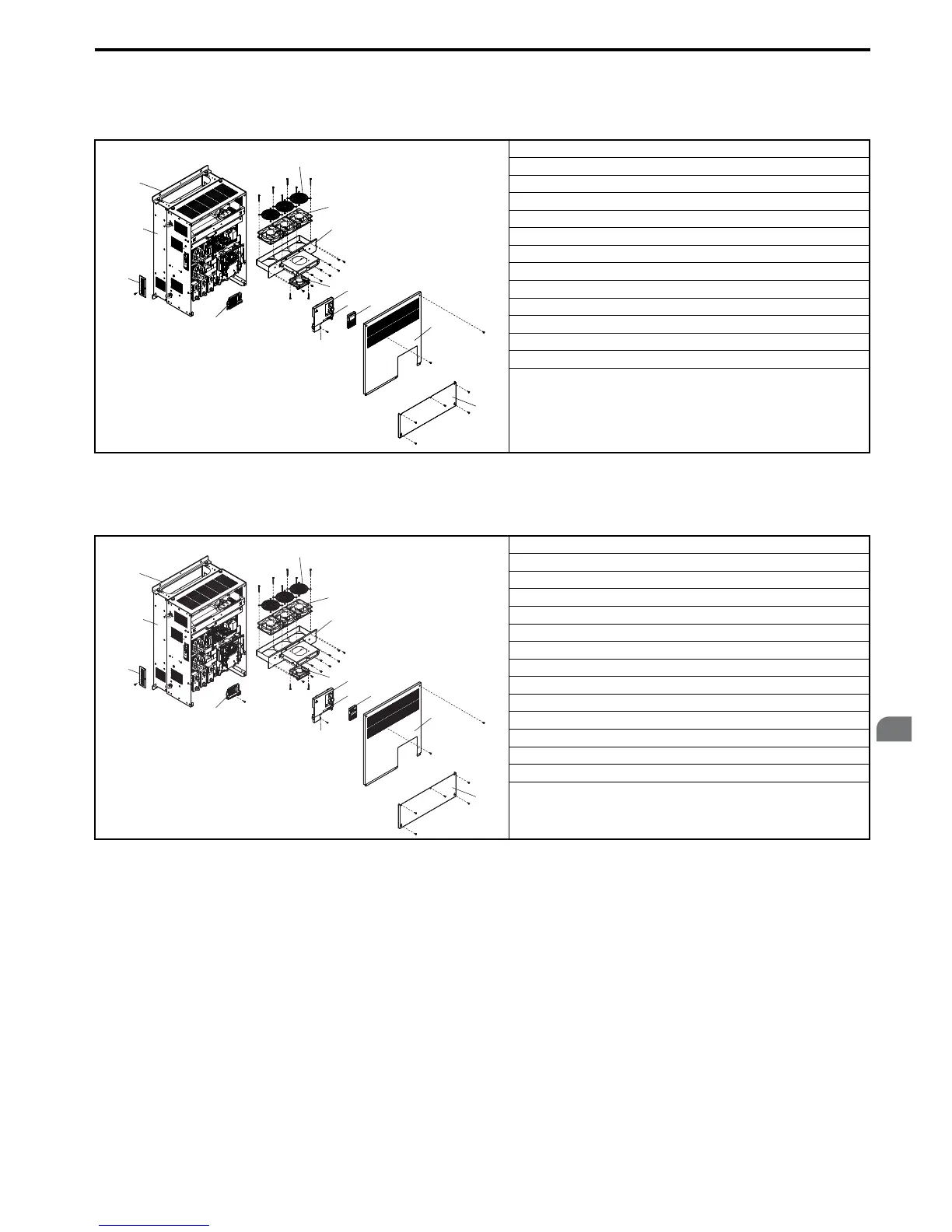

Table 1.6 Exploded view of IP00 Enclosure Type Components (CIMR-A4A0165A)
■ Three-Phase AC200 V CIMR-A2A0360A, 0415A
Three-Phase AC400 V CIMR-A4A0250A to 0362A
Table 1.7 Exploded view of IP00 Enclosure Type Components (CIMR-A4A0362A)
A - Mounting hole
B - Heatsink
C - Optional 24 V DC power supply connector cover
D - Terminal board
E - Fan guard
F - Cooling fan
G - Fan unit
H - Front cover
I - USB port (type-B)
J - Digital operator
K - Front cover screw
L - Drive cover
M - Terminal cover
A - Mounting hole
B - Heatsink
C - Optional 24 V DC power supply connector cover
D - Terminal board
E - Fan guard
F - Cooling fan
G - Fan unit
H - Circulation fan
<1>
<1> The following drive models come with a built-in circulation fan.
CIMR-A2A0360, 2A0415
CIMR-A4A0362
I - Front cover
J - USB port (type-B)
K - Digital operator
L - Front cover screw
M - Drive cover
N - Terminal cover
J
K
B
C
E
F
G
H
I
L
M
N
D
A
J
K
B
C
E
F
G
H
I
L
M
N
D
A

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
