4.2 Using the Digital Operator
88 YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual

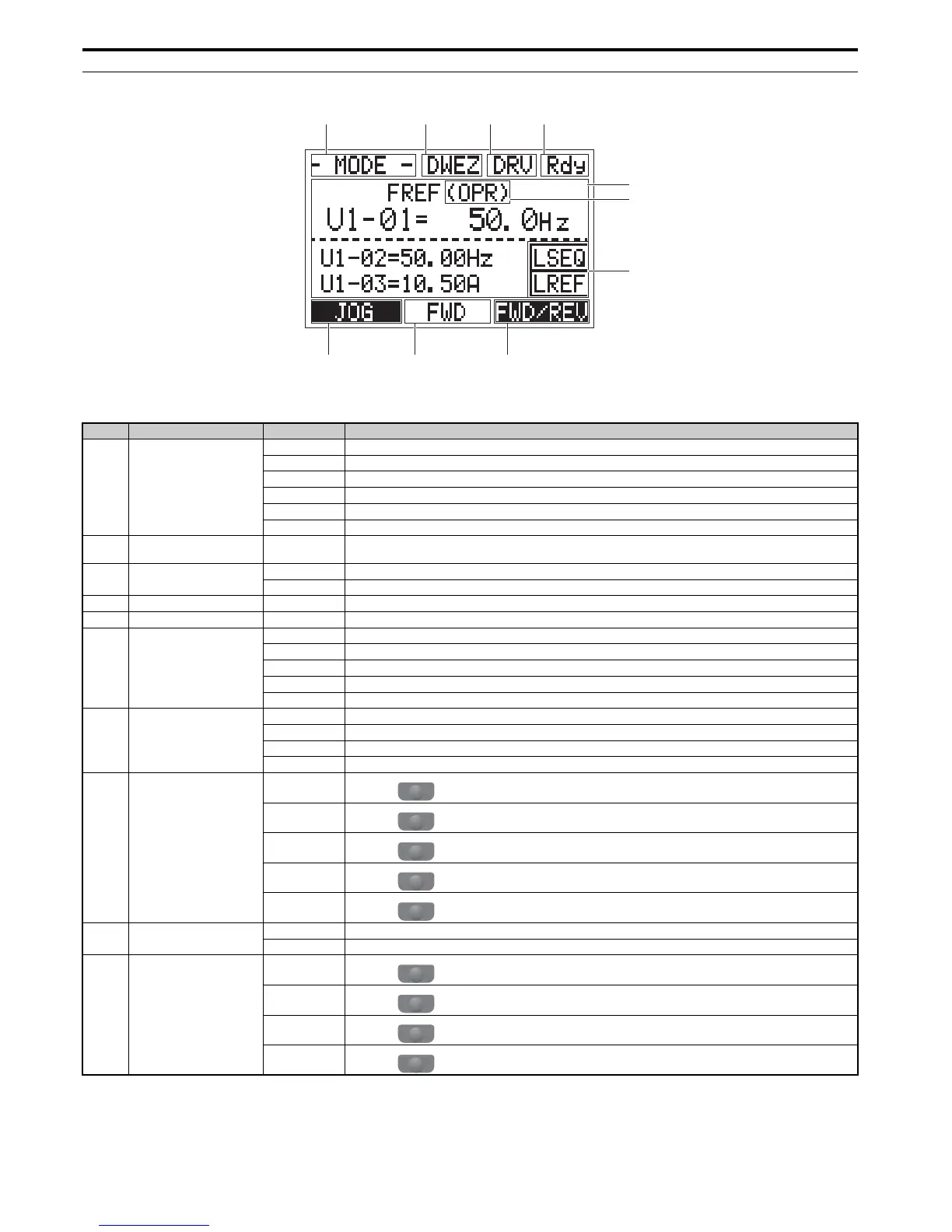

LCD Display
Figure 4. 2
Figure 4.2 LCD Display
Table 4.1 Display and Contents
No. Name Display Content
1 Operation Mode Menus
MODE Displayed when in Mode Selection.
MONITR Displayed when in Monitor Mode.
VERIFY Indicates the Verify Menu.
PRMSET Displayed when in Parameter Setting Mode.
A.TUNE Displayed during Auto-Tuning.
SETUP Displayed when in Setup Mode.
2
DriveWorksEZ Function
Selection
DWEZ
Displayed when the DriveWorksEZ is set to enable.
(A1-07=1 or 2)
3 Mode Display Area
DRV Displayed when in Drive Mode.
PRG Displayed when in Programming Mode.
4 Ready Rdy Indicates the drive is ready to run.
5 Data Display Displays specific data and operation data.
6
Frequency
Reference
Assignment
<1>
<1> Displayed when in Frequency Reference Mode.
OPR Displayed when the frequency reference is assigned to the LCD Operator Option.
AI Displayed when the frequency reference is assigned to the drives Analog Input.
COM Displayed when the frequency reference is assigned to the drives MEMOBUS/Modbus Communication Inputs.
OP Displayed when the frequency reference is assigned to a drive Option Unit.
RP Displayed when the frequency reference is assigned to the drives Pulse Train Input.
7
LO/RE
Display
<2>
<2> Displayed when in Frequency Reference Mode and Monitor Mode.
RSEQ Displayed when the run command is supplied from a remote source.
LSEQ Displayed when the run command is supplied from the operator keypad.
RREF Displayed when the frequency reference is supplied from a remote source.
LREF Displayed when the frequency reference is supplied from the operator keypad.
8
Function Key 1
(F1)
JOG
Pressing executes the Jog function.
HELP
Pressing displays the Help menu.
Pressing scrolls the cursor to the left.
HOME
Pressing returns to the top menu (Frequency Reference).
ESC
Pressing returns to the previous display.
9FWD/REV
FWD Indicates forward motor operation.
REV Indicates reverse motor operation.
10
Function Key 2
(F2)
FWD/REV
Pressing switches between forward and reverse.
DATA
Pressing scrolls to the next display.
Pressing scrolls the cursor to the right.
RESET
Pressing resets the existing drive fault or error.
7
6
5
1234
8910
YEG
F1
F1
F1
F1
F1
F1
F1
F1
F1
