YASKAWA A1000 Series Technical Manual

8.5 Installing Peripheral Devices
YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual 385
Peripheral Devices & Options
8

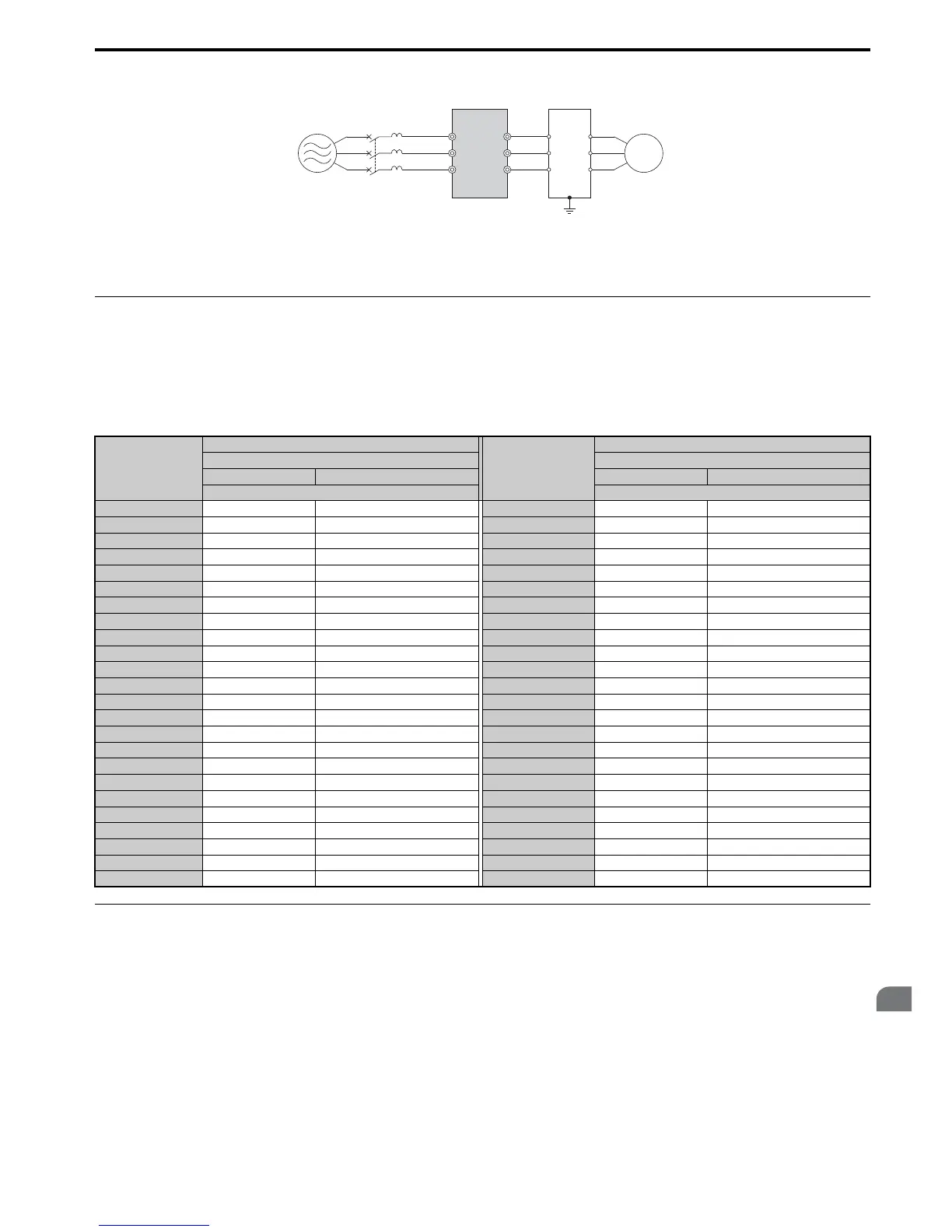

Figure 8.15
Figure 8.15 Output-Side Noise Filter
◆ Installing Input Fuses
Yaskawa recommends installing a fuse to the input side of the drive to prevent damage to the drive if a short circuit
occurs.
Select the appropriate fuse from the table below.
Table 8.2 Input Fuses
◆ Attachment for External Heatsink
An external heatsink can be attached that projects outside the enclosure. Steps should be taken to ensure that there is
enough air circulation around the heatsink.
Contact your Yaskawa sales representative or Yaskawa directly.
A – Power supply C – Output-side noise filter
B–Drive D–Motor
Model
CIMR-A
Fuse Type
Model
CIMR-A
Fuse Type
Manufacturer: Bussmann Manufacturer: Bussmann
Model Fuse Ampere Rating Model Fuse Ampere Rating
Three-Phase 200 V Class Three-Phase 400 V Class
2A0004 FWH-70B 70 4A0002 FWH-40B 40
2A0006 FWH-70B 70 4A0004 FWH-50B 50
2A0010 FWH-70B 70 4A0005 FWH-70B 70
2A0012 FWH-70B 70 4A0007 FWH-70B 70
2A0021 FWH-90B 90 4A0009 FWH-90B 90
2A0030 FWH-100B 100 4A0011 FWH-90B 90
2A0040 FWH-200B 200 4A0018 FWH-80B 80
2A0056 FWH-200B 200 4A0023 FWH-100B 100
2A0069 FWH-200B 200 4A0031 FWH-125B 125
2A0081 FWH-300A 300 4A0038 FWH-200B 200
2A0110 FWH-300A 300 4A0044 FWH-250A 250
2A0138 FWH-350A 350 4A0058 FWH-250A 250
2A0169 FWH-400A 400 4A0072 FWH-250A 250
2A0211 FWH-400A 400 4A0088 FWH-250A 250
2A0250 FWH-600A 600 4A0103 FWH-250A 250
2A0312 FWH-700A 700 4A0139 FWH-350A 350
2A0360 FWH-800A 800 4A0165 FWH-400A 400
2A0415 FWH-1000A 1000 4A0208 FWH-500A 500
–– – 4A0250 FWH-600A 600
–– – 4A0296 FWH-700A 700
–– – 4A0362 FWH-800A 800
–– – 4A0414 FWH-800A 800
–– – 4A0515 FWH-1000A 1000
–– – 4A0675 FWH-1200A 1200
C
D
B
A
M
R/L1
MCCB
S/L2
T/L3
U/T1
V/T2
W/T3
1
2
3
4
5
6
YEG

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
