2.2 Mechanical Installation
42 YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual
When drives with IP20/NEMA Type 1 enclosures are mounted side by side, the top protective covers of all drives must
be removed as shown in Figure 2.4. Refer to Top Protective Cover on page 64 to remove and reattach the top protective
cover.

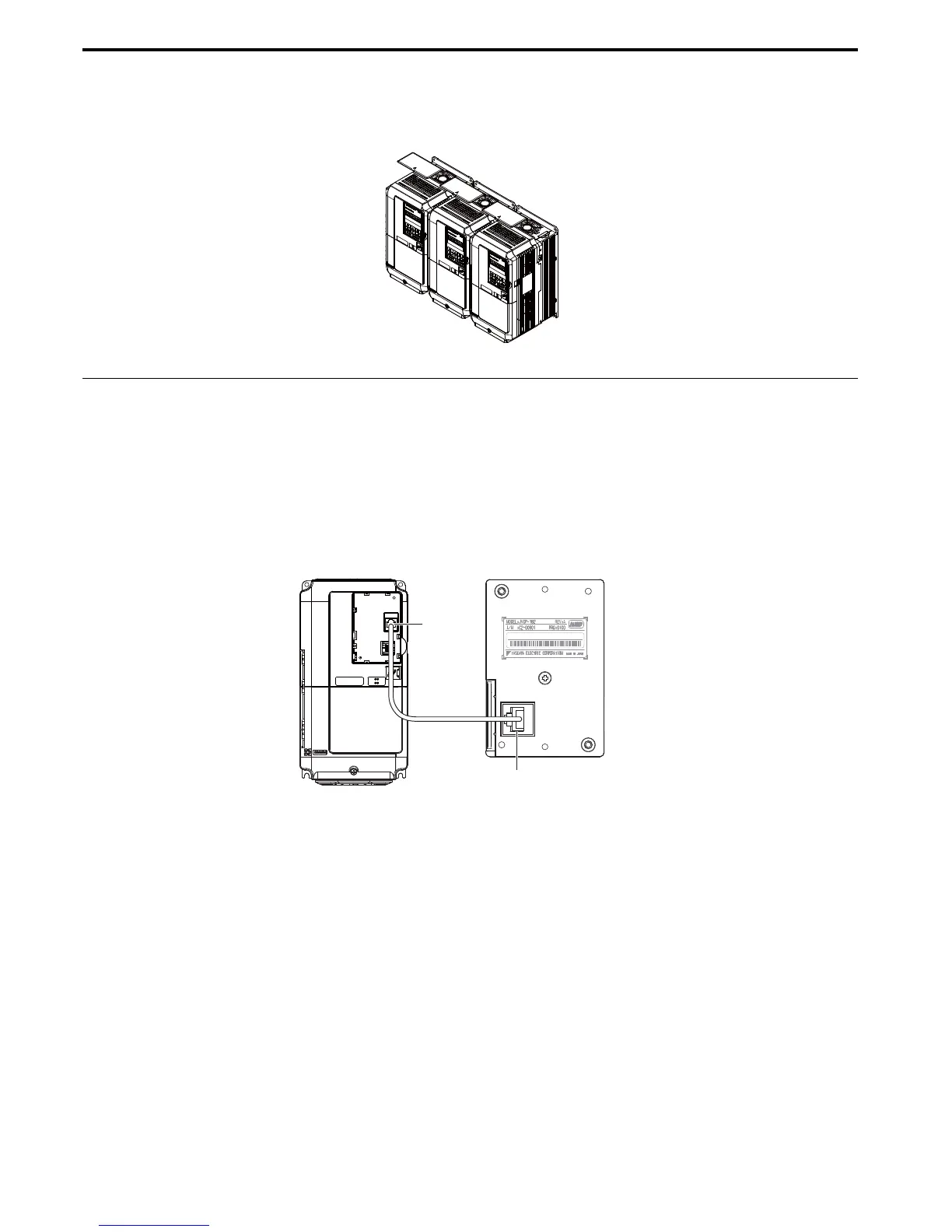

Figure 2. 4
Figure 2.4 IP20/NEMA Type 1 Side-by-Side Mounting in Enclosure
◆ Digital Operator Remote Usage
■ Remote Operation
The digital operator mounted on the drive can be removed and connected to the drive using an extension cable up to 3 m
long. This makes it easier to operate the drive when it is installed in a location where it can not be accessed easily.
The digital operator can also be permanently mounted in a remote location like a panel door. An extension cable and an
installation support set (depending on the installation type) will be required.
Note: Refer to Drive Options and Peripheral Devices on page 375 for information on extension cables and installation support sets.
Figure 2. 5
Figure 2.5 Communication Cable Connection
S / N : J007XE273710001
OperatorDrive
Communication Cable Connector
Comm Port
