A.6 Drive Derating Data
396 YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual
IP00 Enclosure
Drive operation between -10°C and 50°C allows 100% continuous current without derating.
Side-by-Side Mounting
Drive operation between -10°C and 30°C allows 100% continuous current without derating. Operation between 30°C
and 50°C requires output current derating.
NEMA Type 1 Enclosure
Drive operation between -10°C and 40°C allows 100% continuous current without derating. Operation between 40°C
and 50°C requires output current derating.
External Heatsink Installation, Finless Drive
Drive operation between -10°C and 40°C allows 100% continuous current without derating. Operation between 40°C
and 50°C requires output current derating.

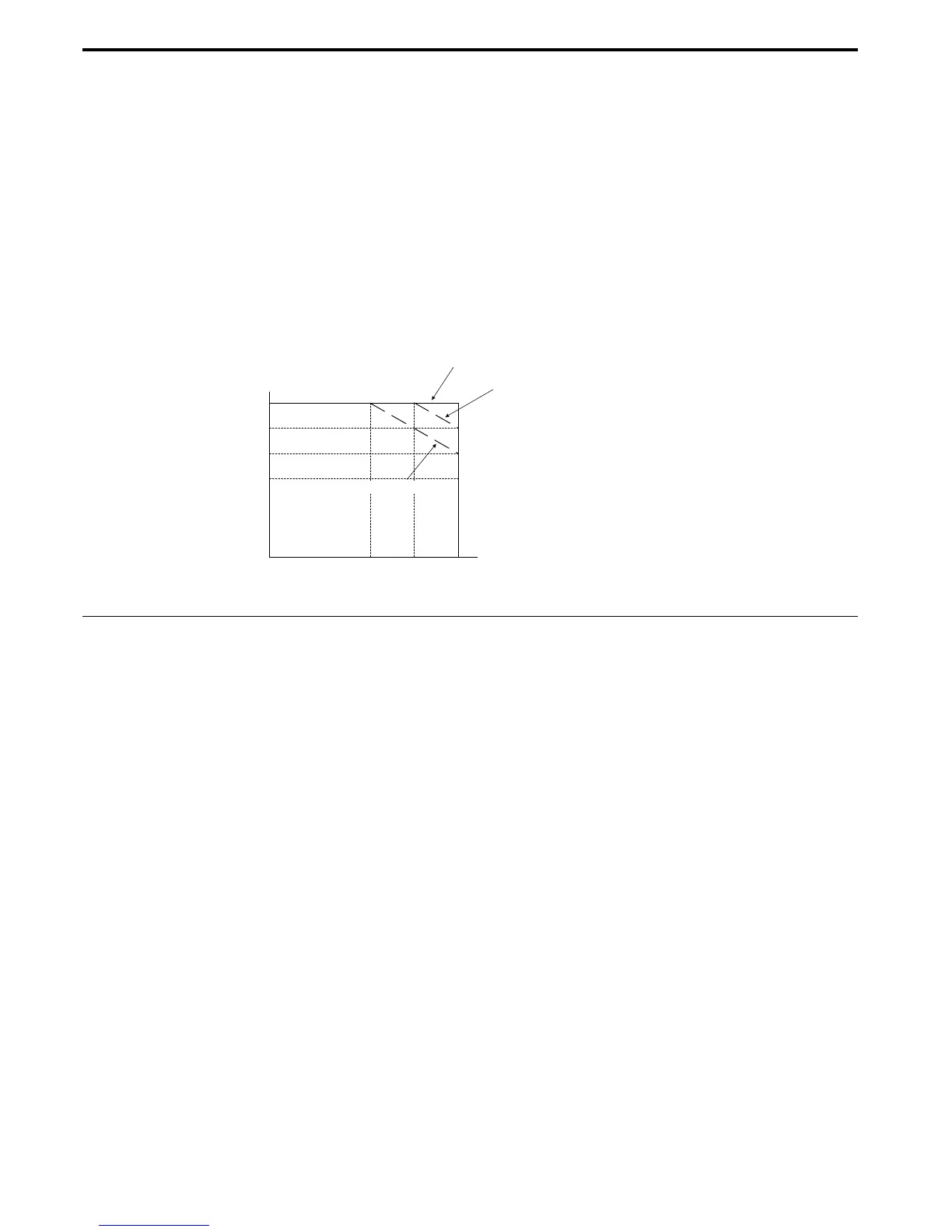

Figure A.7
Figure A.7 Ambient Temperature and Installation Method Derating
Altitude Derating
The drive standard ratings are valid for an installation altitude up to 1000 m. If the altitude exceeds 1000 m both the drive
rated voltage and the rated output current must be derated for 1% per 100 m. The maximum altitude is 3000 m.
100
85
70
55
0
L8-35=2: NEMA Type 1 Enclosure
L8-35=3: External Heatsink lnstallation or
Finless Drive with C3 filter
L8-35=0: IP00 Enclosure
30
-10
40 50
Drive Rating
(%)
L8-12
(Ambient temp: °C)
L8-35=1: Side-by-Side Mounting
