YASKAWA A1000 Series Technical Manual

C.3 Connecting to a Network
YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual 481
MEMOBUS/Modbus Communications
C
■ RS-422 Interface

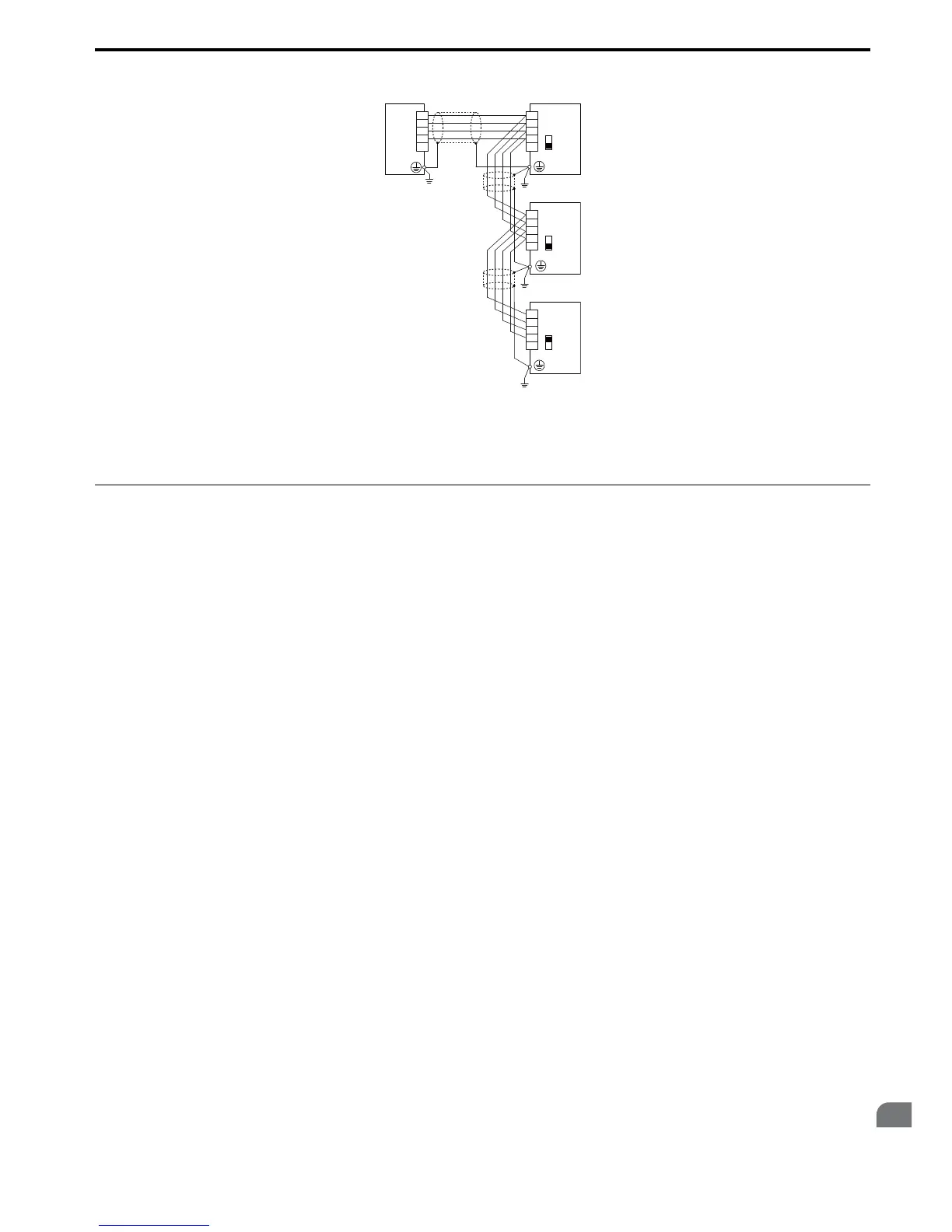

Figure C.4
Figure C.4 RS-422 Interface
Note: 1. Turn on the DIP switch on the drive that is located at the end of the network. All other slave devices must have this DIP switch set to
the OFF position.
2. Set H5-07 to “0” when using the RS-485 interface.
◆ Network Termination
The two ends of the MEMOBUS/Modbus network line have to be terminated. The drive has a built in termination
resistor that can be enabled or disabled using DIP switch S2. If a drive is located at the end of a network line, enable the
termination resistor by setting DIP switch S2 to the ON position. Disable the termination resistor on all slaves that are not
located at the network line end.
Refer to MEMOBUS/Modbus Termination on page 80 for details on setting S2.
R–
R+
S
–
S+
IG
PLC
Drive
Drive
Drive
S–
S+
R
–
R+
IG
S
–
S+
R
–
R+
IG
S
–
S+
R
–
R+
IG
S2
OFF
S2
OFF
S2
ON
common_
TMonly

YASKAWA A1000 Series Specifications

General

Series	A1000
Type	AC Drive
Altitude	Up to 1000m without derating
Output Frequency	0-400 Hz
Control Method	V/f Control
Overload Capacity	150% for 60 seconds
Communication Options	Modbus, DeviceNet, Profibus, Ethernet/IP
Ambient Temperature	-10 to 50°C
Storage Temperature	-20 to 60°C
Humidity	5% to 95% (non-condensing)
Enclosure Rating	IP20
Horsepower	0.5 to 1000 HP
Power Range	0.4 - 630 kW (varies by voltage and model)
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Cooling Method	Fan Cooled
Safety	Safe Torque Off (STO)
