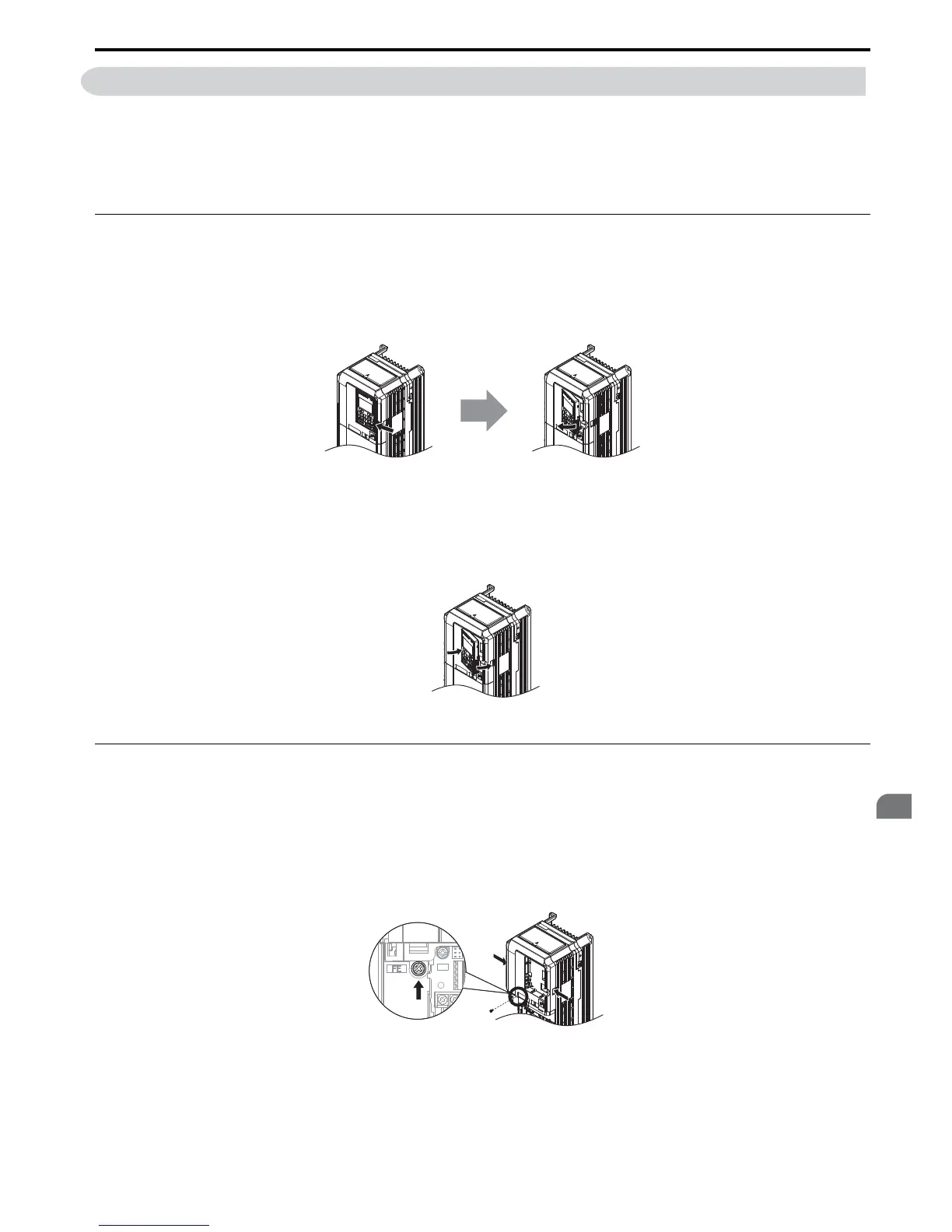

3.6 Digital Operator and Front Cover
YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual 61
Electrical Installation
3
3.6 Digital Operator and Front Cover
The digital operator can be detached from the drive for remote operation, or when the front cover has to be opened to
install an option card.
NOTICE: Be sure the digital operator has been removed prior to opening the front cover or reattaching it. Leaving the digital operator
plugged into the drive when removing the front cover can result in erroneous operation caused by a poor connection. Before
reattaching the operator make sure the front cover has been firmly fastened back into place.
Removing/Reattaching the Digital Operator
Removing the Digital Operator
While pinching inwards on the hook located on the right side of the digital operator, pull forward and remove the
operator from the drive.
Figure 3.16
Figure 3.12 Removing the Digital Operator
Reattaching the Digital Operator
Insert the digital operator into the opening in the front cover while aligning it with the notches on the left side of the
opening. Next press gently on the right side of the operator until it clicks into place.
Figure 3.17
Figure 3.13 Reattaching the Digital Operator
Removing/Reattaching the Front Cover
Removing the Front Cover
2A0004 to 2A0081 and 4A0002 to 4A0044
After removing the terminal cover and the digital operator, loosen the screw that affixes the front cover (model CIMR-
A2A0056, 4A0031, 4A0038 do not use a screw to affix the front cover). Pinch inwards on hooks found on each side of
the front cover, then pull forward to remove it from the drive.
Figure 3.18
Figure 3.14 Remove the Front Cover (2A0004 to 2A0081 and 4A0002 to 4A0044)
YEG
YEG
YEG
