1.3 Model Number and Nameplate Check
YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual 29
Receiving
1
1.3 Model Number and Nameplate Check
Please perform the following tasks after receiving the drive:
Inspect the drive for damage.
If the drive appears damaged upon receipt, contact the shipper immediately.
Verify receipt of the correct model by checking the information on the nameplate.
If you have received the wrong model or the drive does not function properly, contact your supplier.
Nameplate
Figure 1.1

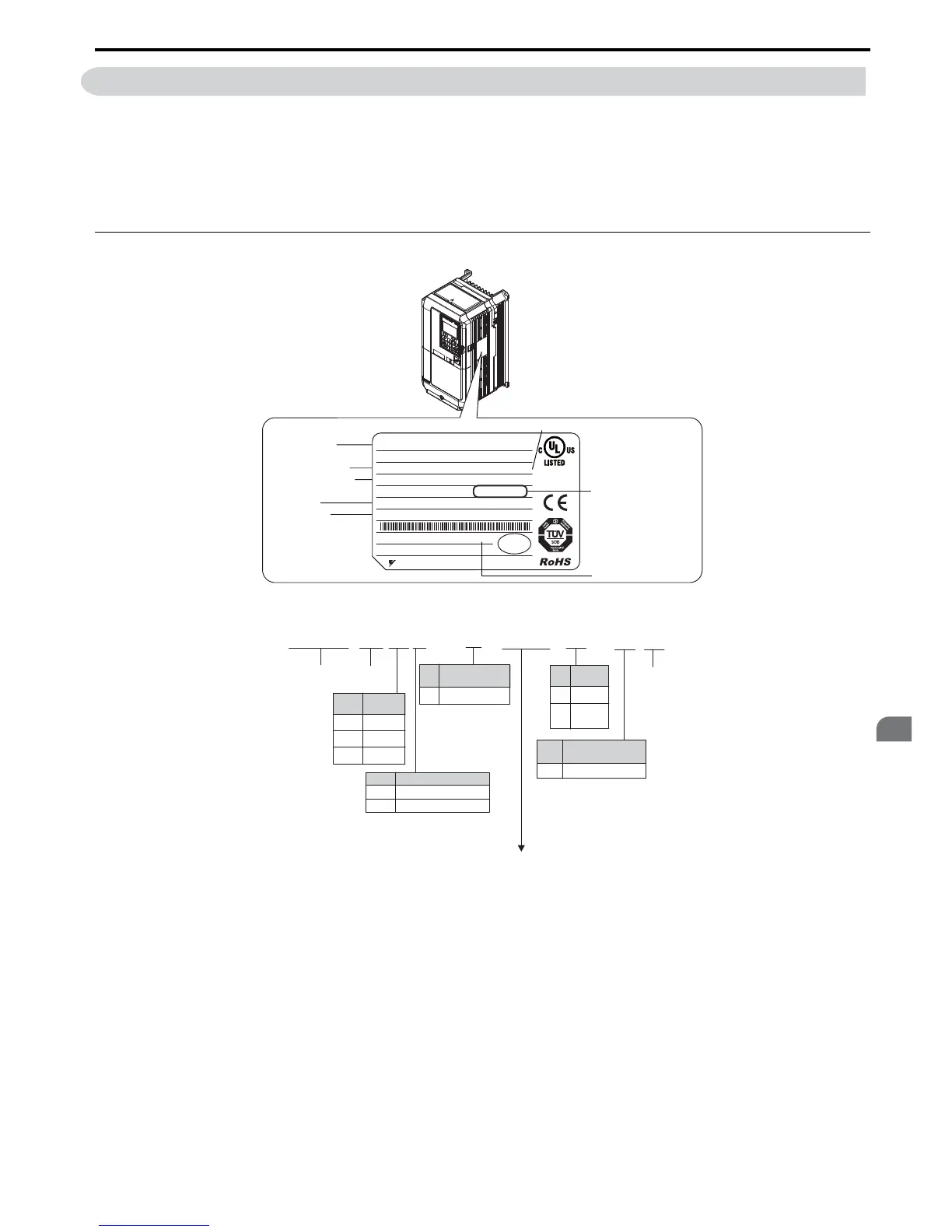

Figure 1.1 Nameplate Information
PRG : 1010
IND.CONT.EQ.
7J48 B
CIMR-AC2A0021FAA
YASKAWA ELECTRIC CORPORATION
MADE IN JAPAN
:
: AC3PH 200-240V 50/60Hz 24A/18.9A
: AC3PH 0-240V 0-400Hz 21A/17.5A
: 3.5 kg
:
:
: E131457 IP20
PASS
MODEL
MAX APPLI. MOTOR : 5.5kW / 3.7kW REV : A
INPUT
OUTPUT
MASS
O / N
S / N
FILE NO
TYPE 1 ENCLOSURE
AC drive model
Input specifications
Output specifications
Lot number
Serial number
Software version
Enclosure type
Normal Duty Amps / Heavy Duty Amps
YEG
CIMR
-
A C 2 A 0004 F A A
Drive
A1000
Series
No.
Enclosure
Type
Design
Revision
Order
No.
Customized
Specifications
A Standard model
No.
Region
Code
UUSA
IP00
F
NEMA
Type1
A
A Japan
C Europe
No. Voltage Class
No.
Environmental
Specification <1>
A Standard
3-phase, 380-480 Vac
3-phase, 200-240 Vac
2
4
YEG
