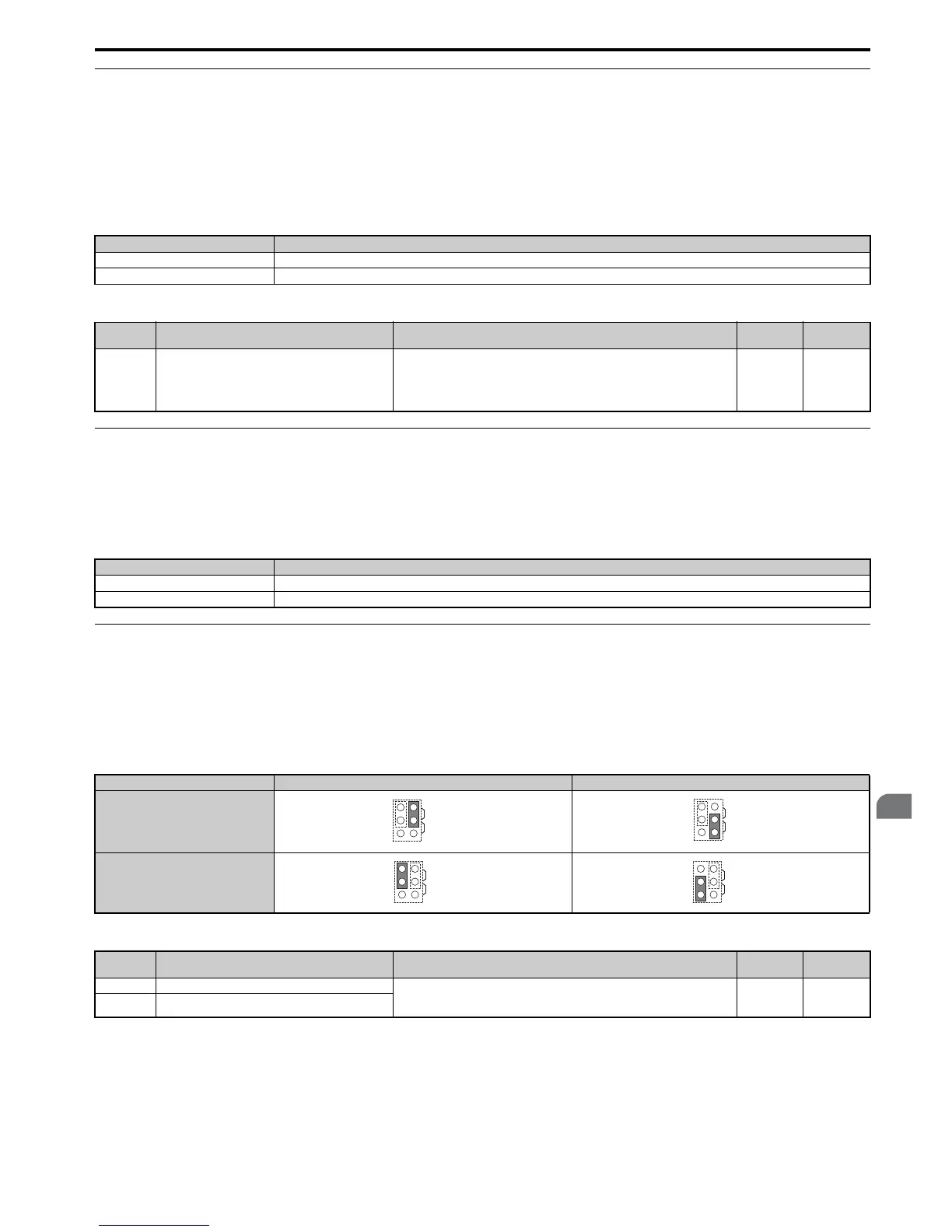

3.10 Control I/O Connections
YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual 79
Electrical Installation
3
Terminal A2 Input Signal Selection
Terminal A2 can be used to input either a voltage or a current signal. Select the signal type using switch S1 as explained
in Table 3. 12. Set parameter H3-09 accordingly as shown in Table 3.1 3. Refer to Switches and Jumpers on the Terminal
Board on page 76 for locating switch S1.
Note: If terminals A1 and A2 are both set for frequency bias (H3-02 = 0 and H3-10 = 0), both input values will be combined to create
the frequency reference.
Table 3.12 DIP Switch S1 Settings
Table 3.13 Parameter H3-09 Details
Terminal A3 Analog/PTC Input Selection
Terminal A3 can be configured either as multi-function analog input or as PTC input for motor thermal overload
protection. Use switch S4 to select the input function as described in Table 3.14. Refer to Switches and Jumpers on the
Terminal Board on page 76 for locating switch S4.
Table 3.14 DIP Switch S4 Settings
Terminal AM/FM Signal Selection
The signal type for terminals AM and FM can be set to either voltage or current output using jumper S5 on the terminal
board as explained in Table 3.1 5. When changing the setting of jumper S5, parameters H4-07 and H4-08 must be set
accordingly. The default selection is voltage output for both terminals. Refer to Switches and Jumpers on the Terminal
Board on page 76 for locating jumper S5.
Table 3.15 Jumper S5 Settings
Table 3.16 Parameter H4-07, H4-08 Details
Setting Description
V (left position) Voltage input (-10 to +10 V)
I (right position) (default) Current input (4 to 20 mA or 0 to 20 mA): default setting
No. Parameter Name Description
Setting
Range
Default
Setting
H3-09 Terminal A2 signal level selection
Selects the signal level for terminal A2.
0: 0 to 10 Vdc
1: -10 to 10 Vdc
2: 4 to 20 mA
3: 0 to 20 mA
0 to 3 2
Setting Description
AI (lower position) (default) Analog input for the function selected in parameter H3-06
PTC (upper position) PTC input. Parameter H3-06 must be set to E (PTC input)
Voltage Output Current Output
Termina l A M
Terminal FM
No. Parameter Name Description
Setting
Range
Default
Setting
H4-07 Terminal AM signal level selection 0: 0 to 10 Vdc
1: -10 to 10 Vdc
2: 4 to 20 mA
0 to 2 0
H4-08 Terminal FM signal level selection
AMFM
V
I
AMFM
V
I
AMFM
V
I
AMFM
V
I
