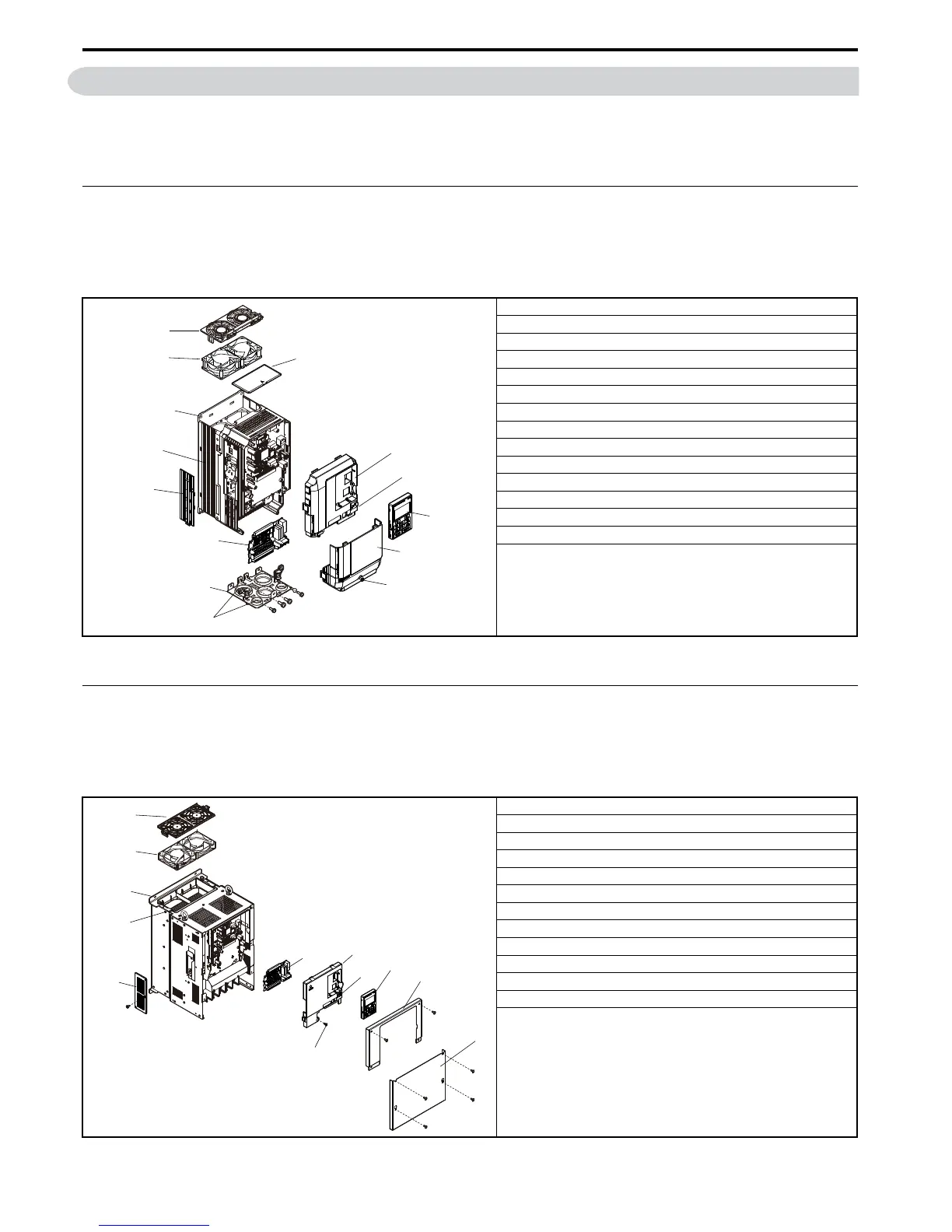

32 YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual
1.5 Component Names
1.5 Component Names
This section gives and overview of the drive components described in this manual.
Note: 1. See Using the Digital Operator on page 87 for a description of the operator keypad.
2. The drive may have no cooling fans or only one cooling fan depending on the model.
IP20/NEMA Type 1 Enclosure
Three-Phase AC200 V CIMR-A2A0004F to 0081F
Three-Phase AC400 V CIMR-A4A0002F to 0044F
Table 1.4 Exploded View of IP20/NEMA Type 1 Enclosure Components (CIMR-A2A0030F)
IP00 Enclosure
Three-Phase AC200 V CIMR-A2A0110A, 0138A
Three-Phase AC400 V CIMR-A4A0058A to 0103A
Table 1.5 Exploded View of IP00 Enclosure Components (CIMR-A2A0110A)
<1> The following drive models have a single cooling fan: CIMR-A2A0021F, CIMR-A4A0007F through 0011F. Drives CIMR-A2A0004F
through 0012F and CIMR-A4A0002F through 0005F do not have a cooling fan or a cooling fan cover.
A - Fan cover <1>
B - Cooling fan <1>
C - Mounting hole
D - Heatsink
E - Optional 24 V DC power supply connector cover
F - Terminal board
G - Bottom cover
H -Rubber bushing
I - Top protective cover
J - Front cover
K - USB port (type-B)
L - Digital Operator
M - Terminal cover
N - Terminal cover screw
A - Fan cover
B - Cooling fan
C - Mounting hole
D - Heatsink
E - Optional 24 V DC power supply connector cover
F - Terminal board
G - Front cover
H - USB port (type-B)
I - Front cover screw
J - Digital operator
K - Drive Cover
L - Terminal cover
F
L
N
A
B
C
I
D
E
J
M
K
G
H
A
B
C
D
E
F
G
H
I
J
K
L
