3.6 Digital Operator and Front Cover
YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual 63
Electrical Installation
3
Reattaching the Front Cover
2A0004 to 2A0081 and 4A0002 to 4A0044
Reverse the instructions given in Removing the Front Cover on page 61 to reattach the front cover. Pinch inwards on the
hooks found on each side of the front cover while guiding it back into the drive. Make sure it clicks firmly into place.
2A0110 to 2A0415 and 4A0058 to 4A0675
1. Slide the front cover so that the hooks on the top connect to the drive.

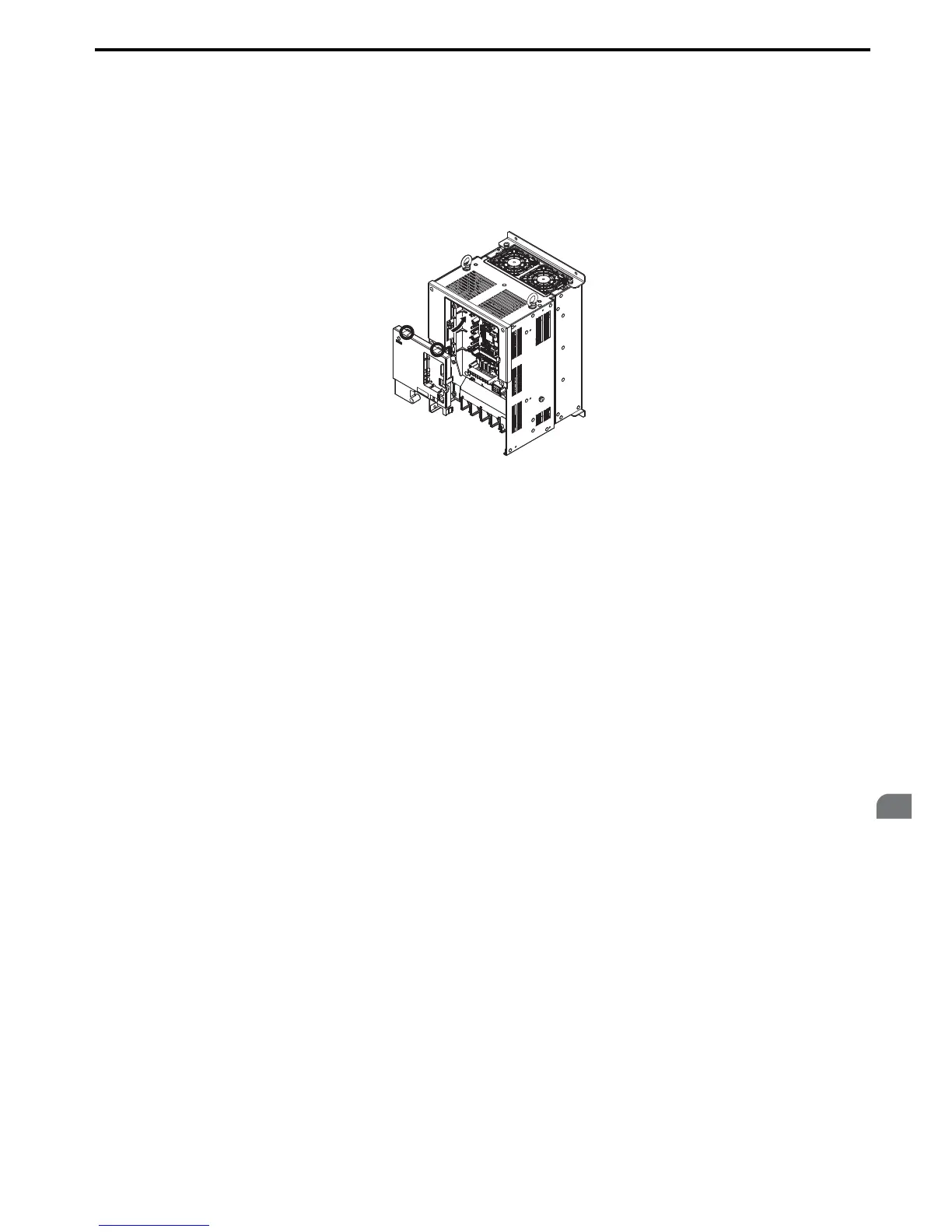

Figure 3.21
Figure 3.17 Reattach the Front Cover (2A0110 to 2A0415 and 4A0058 to 4A0675)
2. Once the hooks have connected to the drive, press firmly on the cover to make sure it locks into place.
