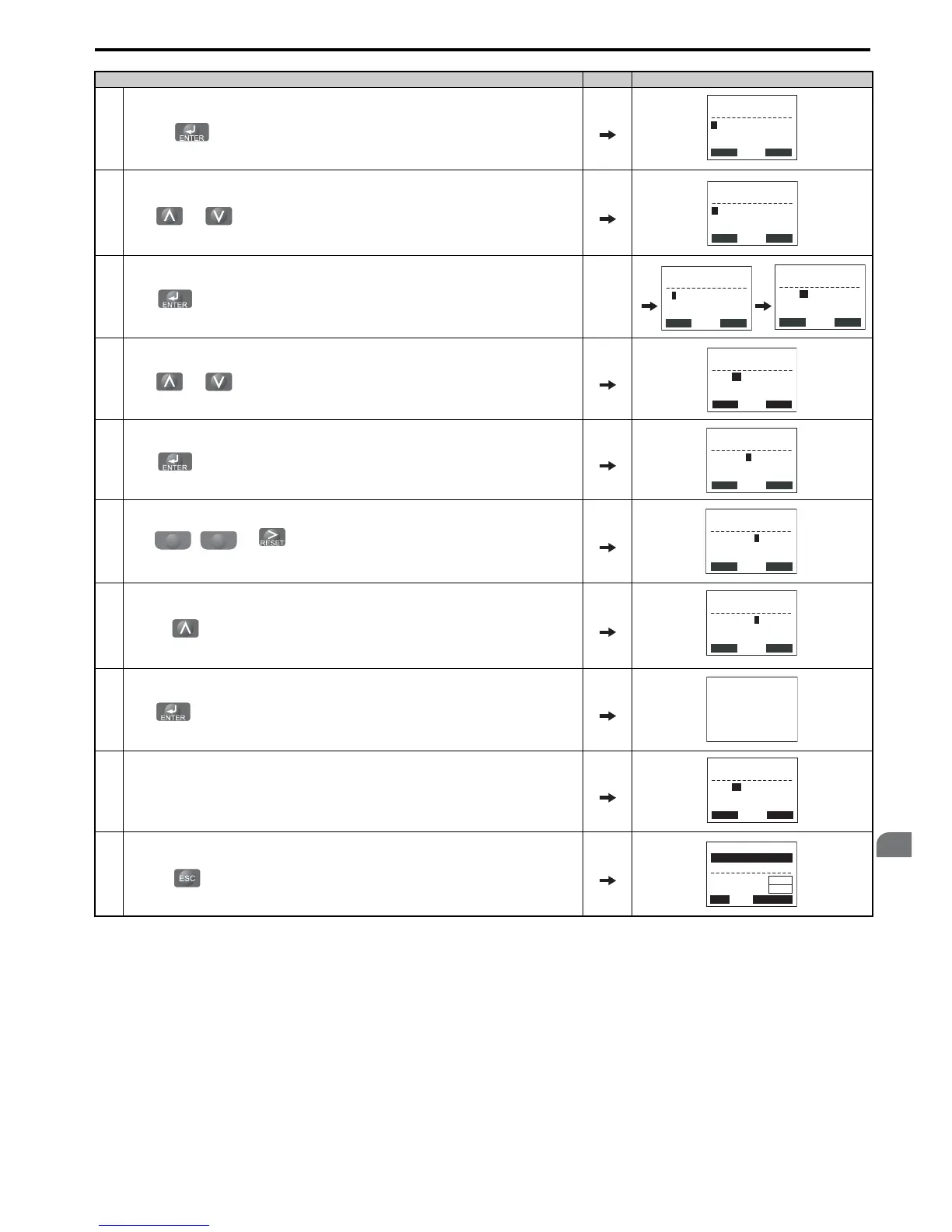

4.3 The Drive and Programming Modes
YASKAWA ELECTRIC SIEP C710616 27C YASKAWA AC Drive A1000 Technical Manual 93
Start-Up Programming
& Operation
4
3.
Press the key to enter the parameter menu tree.
4.
Press or key to select the C parameter group.
5.
Press two times.
6.
Press or key to select the parameter C1-02.
7.
Press to view the current setting value (10.0 s). Left digit flashes.
8.
Press , or until the desired number is selected. “1” flashes.
9.
Press the key and enter 0020.0.
10.
Press and the drive will confirm the change.
11. The display automatically returns to the screen shown in Step 4.
12.
Press the key until back at the initial display.
Step Display/Result
←→
-PRMSET-
Initialization
Select Language
PRG
FWD
A1-00=0
←→
-PRMSET-
Basic Setup
Accel Time 1
PRG
FWD
C1-01= 10.0 sec
←→
-PRMSET-
Accel/Decel
Accel Time 1
PRG
FWD
C1-01= 10.0 sec
-PRMSET-
C1-01= 10.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Accel Time 1
←→
FWD
←→
-PRMSET-
C1-02= 10.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Decel Time 1
FWD
-PRMSET-
C1-02= 0010.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Decel Time 1
←→
FWD
F1
left
F2
right
-PRMSET-
C1-02=0010.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Decel Time 1
←→
FWD
-PRMSET-
C1-02=0020.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Decel Time 1
←→
FWD
Entry Accepted
←→
-PRMSET-
C1-02= 20.0Sec
(0.0~6000.0)
“10.0 sec”
PRG
Decel Time 1
FWD
- MODE -
U1-01= 0.00Hz
U1-02= 0.00Hz
U1-03= 0.00A
DRV
FREF (OPR)
Rdy
JOG FWD FWD/REV
LSEQ
LREF
