YASKAWA DX100 Service Manual

7 System Diagnosis
DX100 7.3 Input/Output Status
7-11

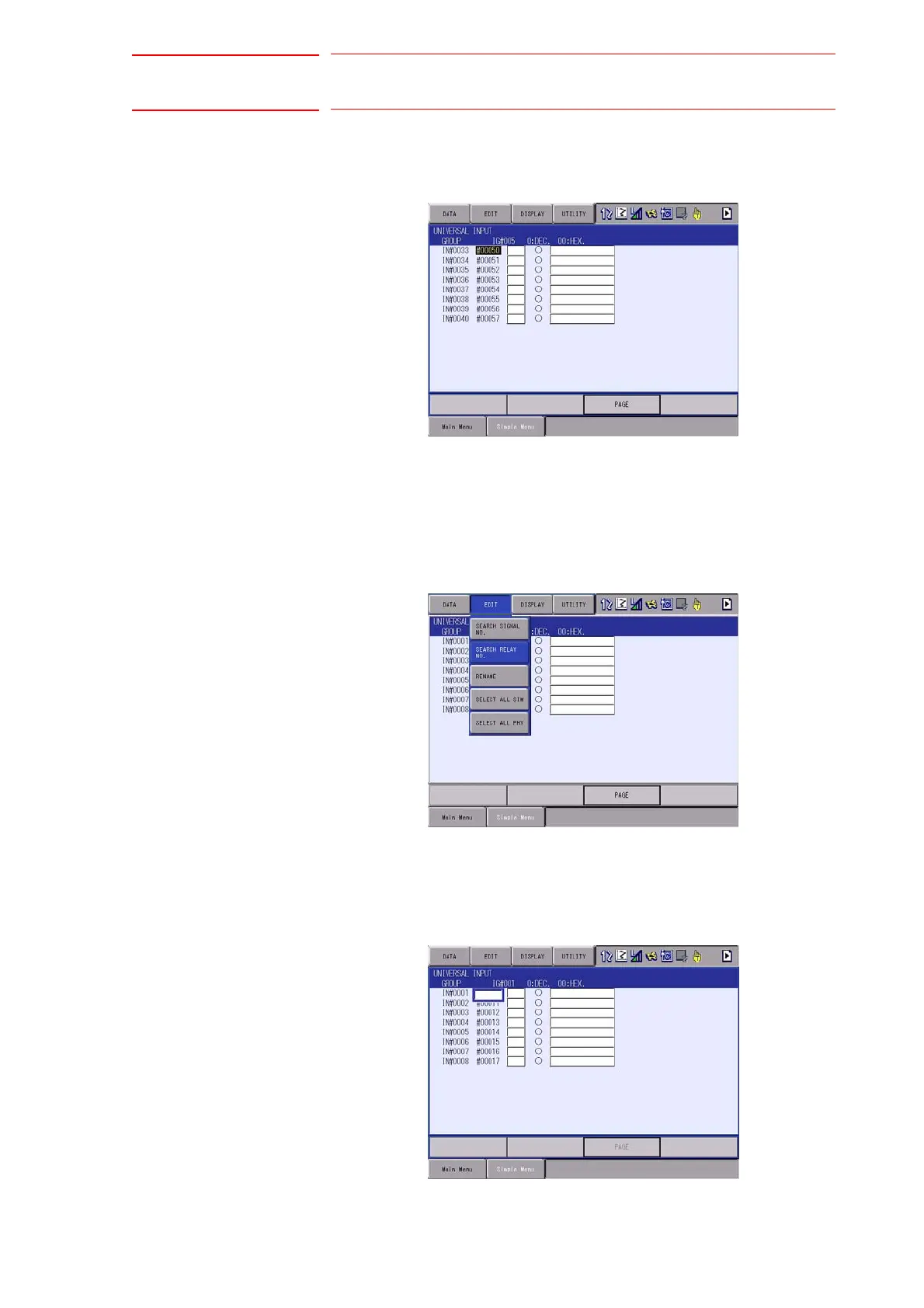

3. Press [ENTER] to start the search.
– The page where the relay number exists appears.
7.3.7.2 Search from the Menu
1. Select {EDIT} under the menu in the UNIVERSAL/SPECIFIED INPUT/
OUTPUT window.
– The pull-down menu appears.
2. Select {SEARCH RELAY SIGNAL NO.}.
– Numeric values can now be entered.

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
