5 Replacing Parts
DX100 5.1 Replacing DX100 Parts
5-19

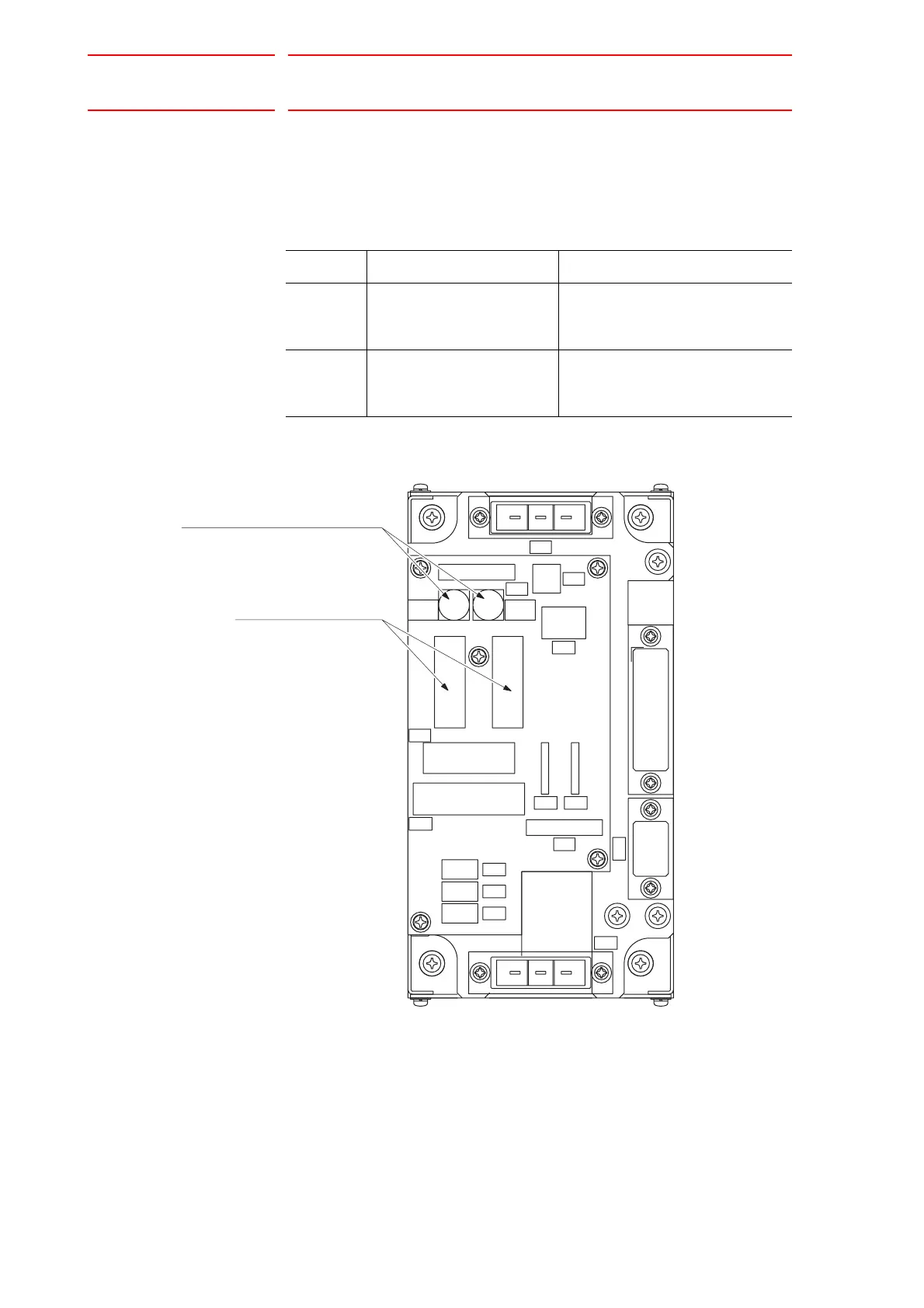

5.1.5 Checking and Replacing Fuses
5.1.5.1 Power Supply Contactor Unit
The types of fuses on power supply contactor unit
(JZRCR-YPU01-) are as follows
.
Replacement Fuse of the Power Supply Contactor Unit
If the fuse is blown, replace it with the same type of fuse (supplied or
spare parts).
Parts No. Fuse Name Specification
1FU, 2FU AC Control Power Supply
Fuse
0218010P
250V,10A, Time Lag Fuse
(LITTEL)
3FU,4FU AC Cooling Fan Fuse GP25, 2.5A, 250V
(Daito Communication Apparatus
Co., Ltd.)
A01
2FU FU
A01
1
CN601
CN610
CN611
CN607
SVMX2SVMX1
CN601
CN606
CN612
CN608
CN602
CN603
CN604
CN605
SVMX2SVMX1
3FU 2.5A
4FU 2.5A
GP25(2.5A 250V)
(4FU),(3FU)
0218010P(10A 250V)
Fuse for AC control power supply
(2FU),(1FU)
SVMX2
SVMX1
CN603
CN604
CN605
CN612
CN606
NCM
CN607
CN611
4FU3FU
2FU1FU
CN610
CN601
CN609CN608
CN602
Fuse for cooling fan
