YASKAWA DX100 Service Manual

7 System Diagnosis
DX100 7.4 System Monitoring Time Display
7-16

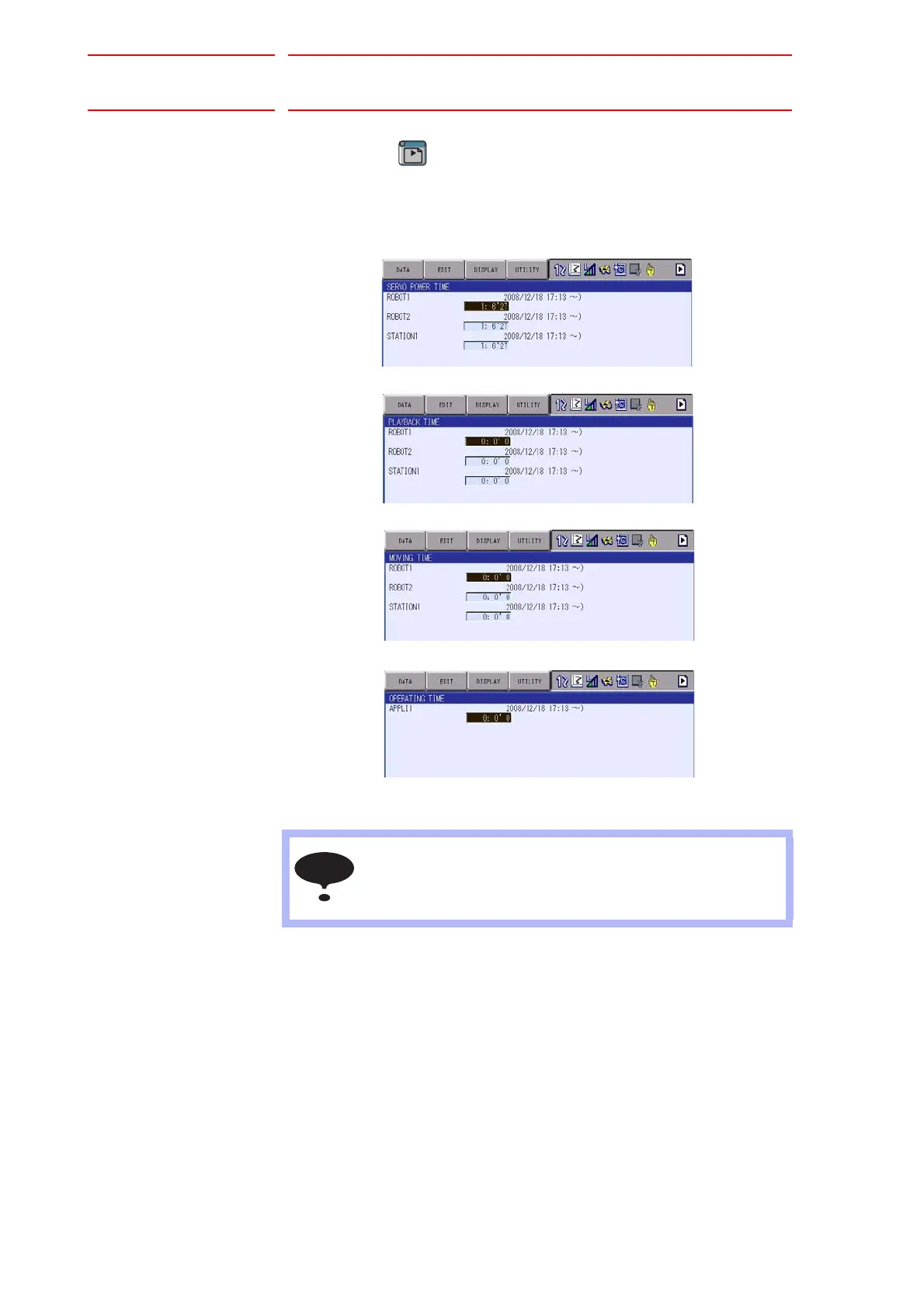

7.4.2 Individual Window of the System Monitoring Time Display
If the page key is pressed, or "PAGE" is selected to display the
selection window for the system monitoring time display, the servo power
time, playback time, moving time, and each-application operating time by
each control group are individually displayed.
NOTE
The total time of each control group here is not always the
same as the time in the SYS MONITORING TIME window
because these windows show time as seen from the individ-
ual control group.
PAGE
GO BACK
PAGE
GO BACK

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
