YASKAWA DX100 Service Manual

6 Operations After Replacing Parts
DX100 6.1 Home Position Calibration
6-5
4. Select the desired control group.
5. Select {EDIT} under the menu.
– The pull-down menu appears.

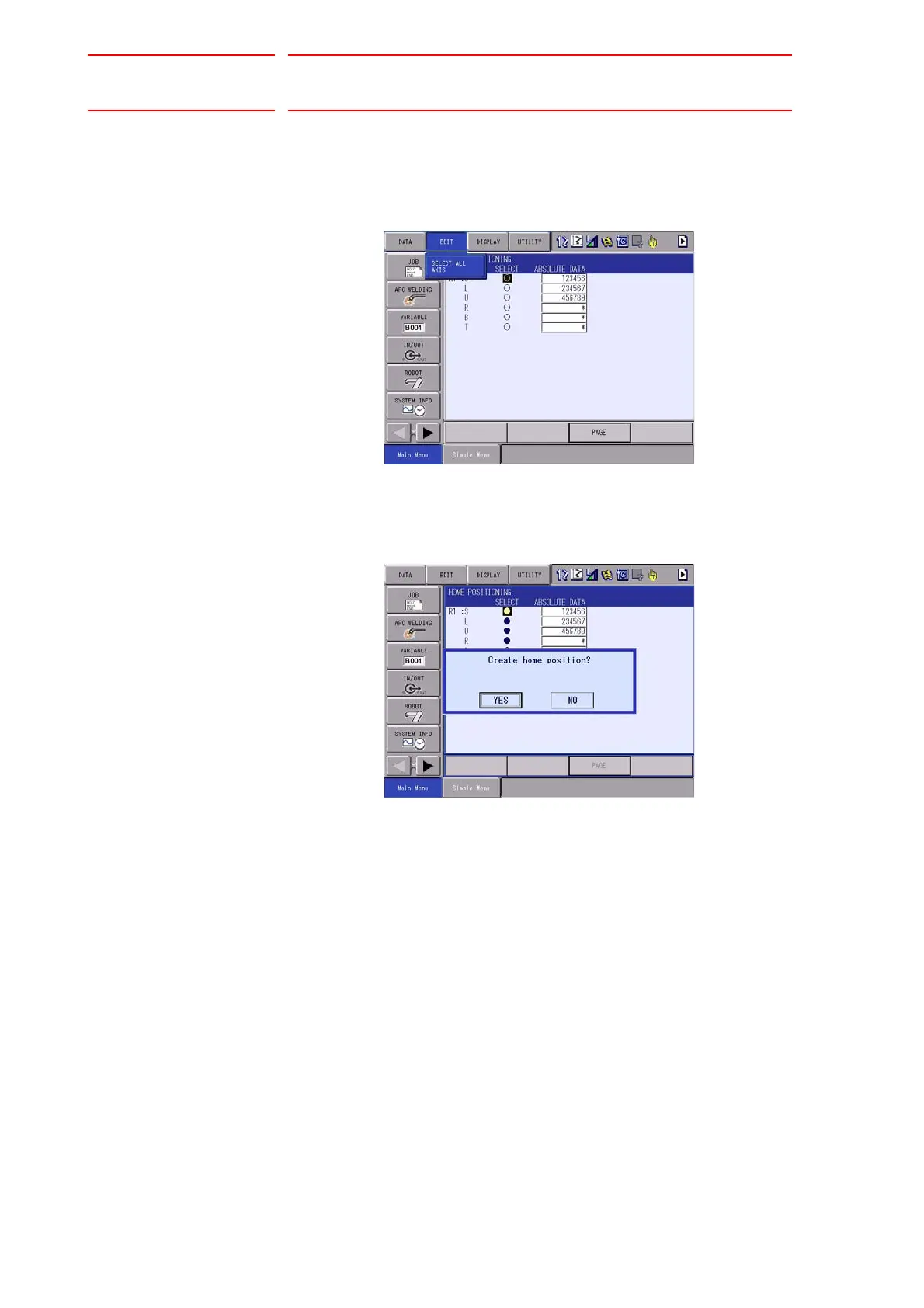

6. Select {SELECT ALL AXES}.
– The confirmation dialog box appears.
7. Select “YES.”
– Displayed position data of all axes are registered as home position.
When “NO” is selected, the registration will be canceled.
6.1.2.2
Registering Individual Axes
1. Select {ROBOT} under the main menu.
2. Select {HOME POSITION}.
3. Select the desired control group.
– Perform steps 3 and 4 which have been described in "Registering All
Axes at One Time" to select the desired control group.

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
