YASKAWA DX100 Service Manual

6 Operations After Replacing Parts
DX100 6.1 Home Position Calibration
6-7
6.1.2.3 Changing the Absolute Data
To change the absolute data of the axis when home position calibration is
completed, perform the following:
1. Select {ROBOT} under the main menu.
2. Select {HOME POSITION}.
3. Select the desired control group.
– Perform steps 3 and 4 which have been described in "Registering All
Axes at One Time" to select the desired control group

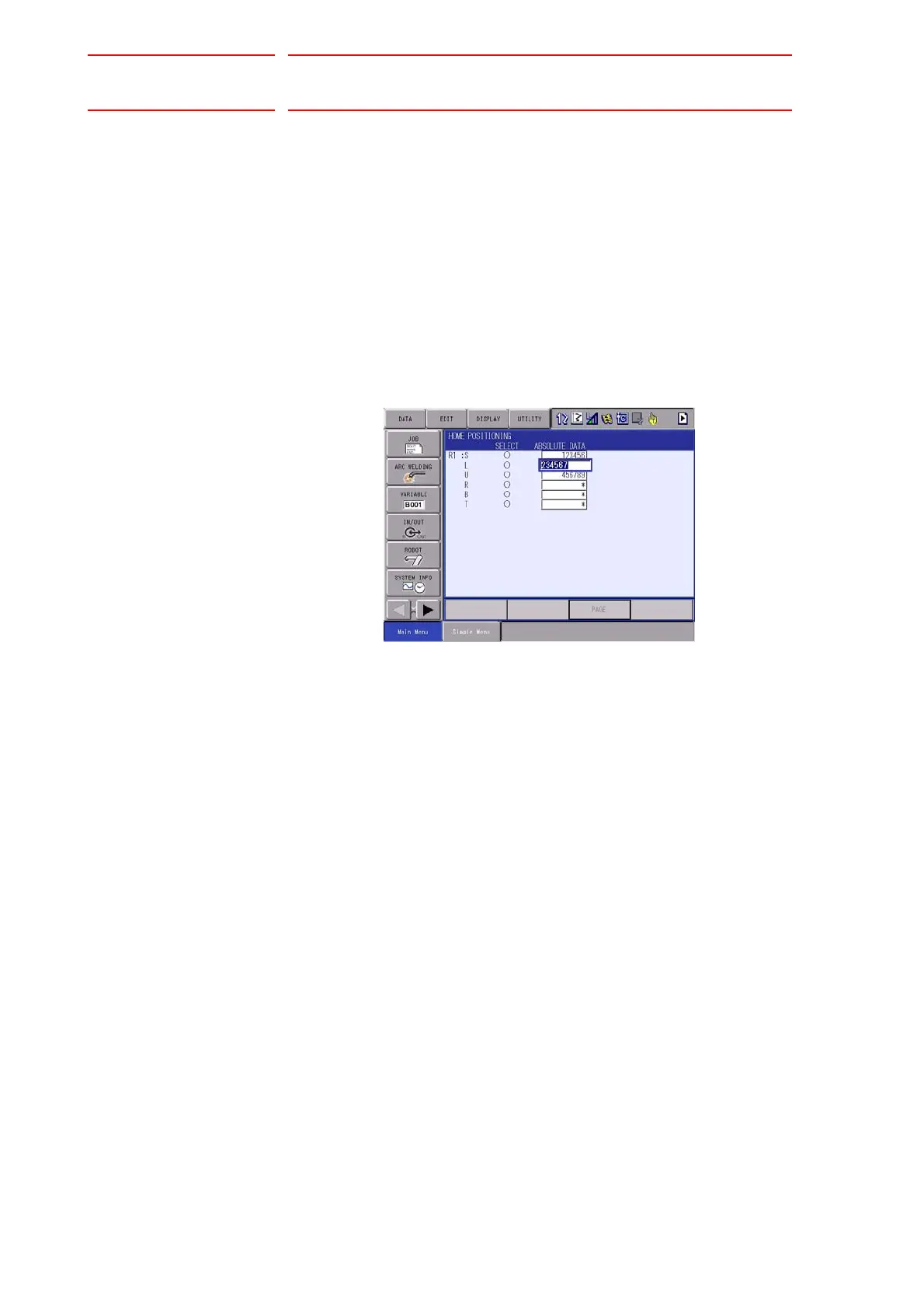

4. Select the absolute data to be registered.
– The number can now be entered.
5. Enter the absolute data using the numeric keys.
6. Press [ENTER].
– Absolute data are modified.
6.1.2.4 Clearing Absolute Data
1. Select {ROBOT} under the main menu.
2. Select {HOME POSITION}.
– Perform steps 2, 3, and 4 which have been described in "Registering
All Axes at One Time" to display the HOME POSITIONING window
and select the desired control group.

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
