YASKAWA DX100 Service Manual

5 Replacing Parts
DX100 5.3 Supplied Parts List
5-28

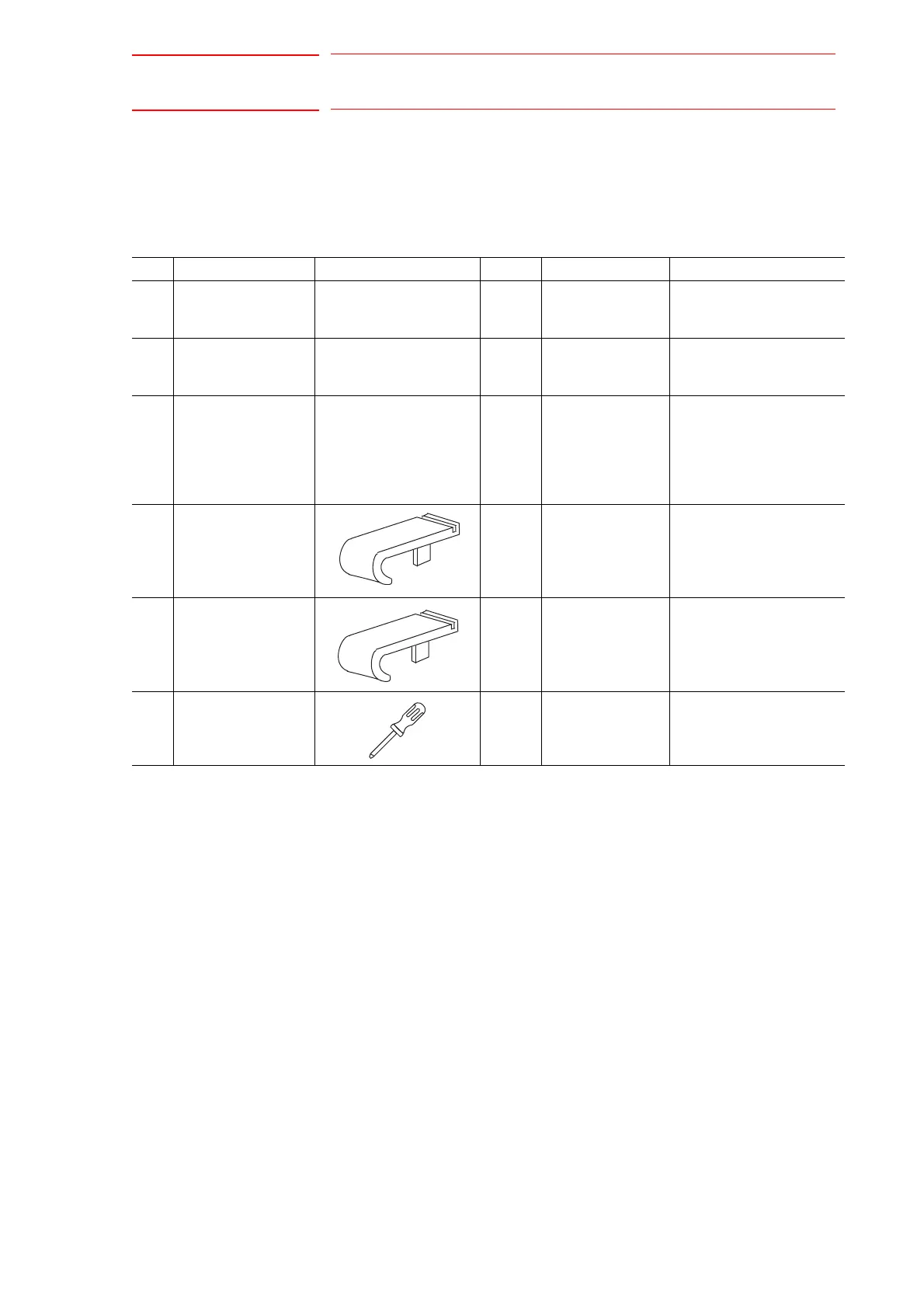

5.3 Supplied Parts List
The supplied parts of DX100 is as follows.
Parts No.1 to 3 are used for fuse for replacement and No.4, 5and 6 are
used as a tool for connecting the I/O.
Table 5-3: Supplied Parts List
No Parts Name Dimensions Pcs Model Application
1 10A
Glass-Tube fuse
2 0218010P
10A, 250V
(LITTEL)
JZRCR-YPU01-
(1FU, 2FU)
2 3.15A
Glass-Tube fuse
3 02173.15P
3.15A, 250V
(LITTEL)
JZNC-YSU01-E1(F1, F2)
JANCD-YBK01-E(F1)
JZNC-YIU0-E(F1, F2)
32.5A
Alarm fuse
2 GP25 2.5A
2.5A, 250V
(Daito
Communication
Apparatus Co.,
Ltd.)
JZRCR-YPU01-
(3FU, 4FU)
4WAGO
Connector wiring
tool
2 231-131
(WAGO Company
of Japan, Ltd.)
JZNC-YPS01-E-CN152
5WAGO
Connector wiring
tool
1 734-230
(WAGO Company
of Japan, Ltd.)
JZNC-YIU0¨-E-CN303
JZNC-YSU01-1E-CN211
6WAGO
Terminal block wiring
tool
1 210-119SB
(WAGO Company
of Japan, Ltd.)
MXT

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
