5.1.5.4 Brake Board
The types of fuses on the brake board (JANCD-YBK01-1E) are as follows.
Replacement Fuse of Brake Board (JANCD-YBK01-1E)
If the fuse is blown, replace it with the same type of fuse (supplied or
spare parts).
Parts No. Fuse Name Specification
F1 Brake Power Supply Fuse
for External Axis
02173.15P, 250V,3.15A,
Rapid Cut Fuse
(LITTEL)

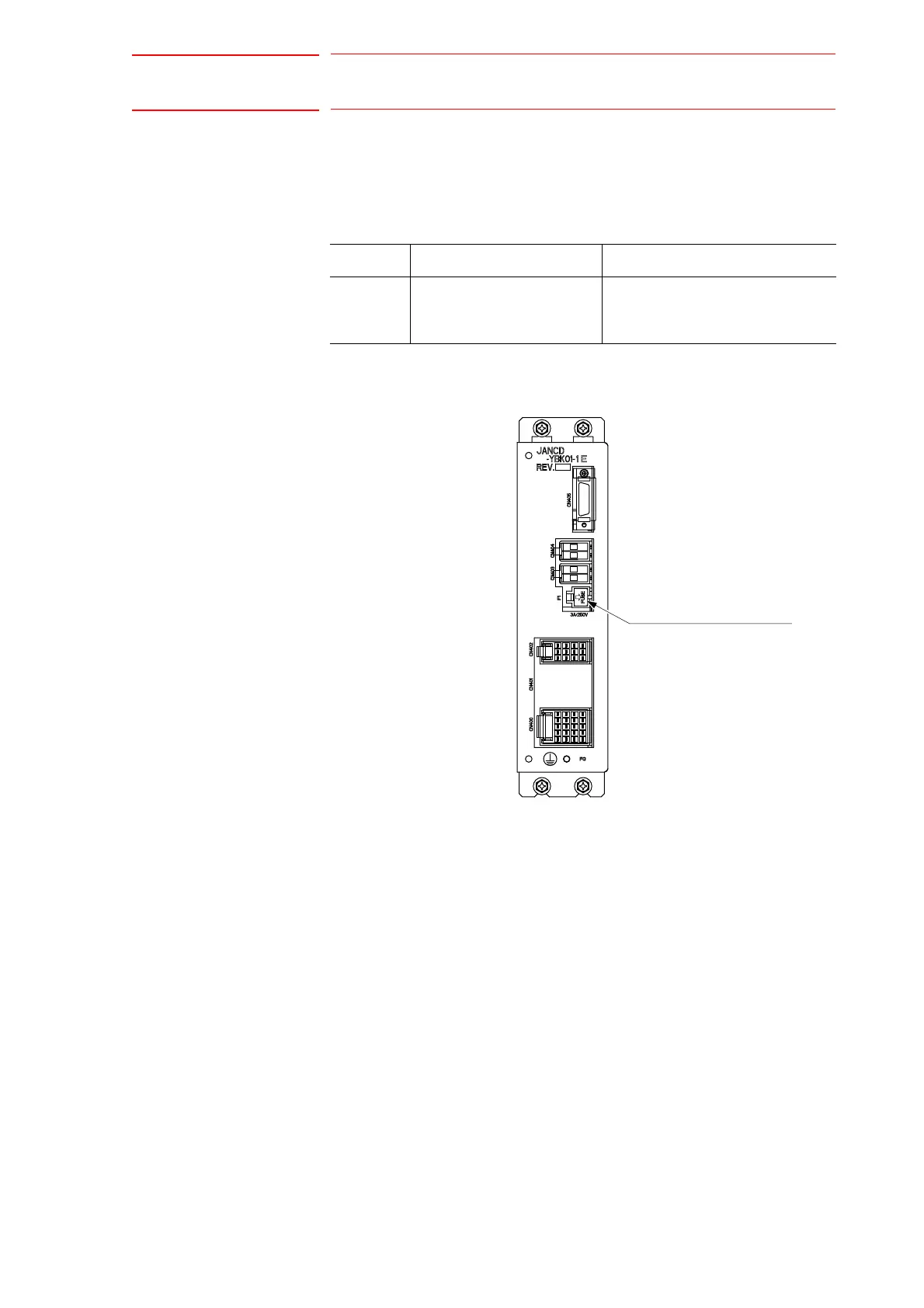

F1: Brake power supply fuse
for external axis
