YASKAWA DX100 Service Manual

7 System Diagnosis
DX100 7.3 Input/Output Status
7-13
7.3.8 Modification of the Signal Name
The name of the universal input or output signal can be modified.
The name can be modified in the following two ways.
• Direct modification on the UNIVERSAL/SPECIFIED INPUT/OUTPUT
window.
• Modification from the menu
7.3.8.1 Direct Modification on the Universal/Specified Input/Output Window
1. Move the cursor to the signal name to be modified in the UNIVERSAL/
SPECIFIED INPUT/OUTPUT window, and press [SELECT].
– The window for character input appears.
2. Enter the signal name.
3. Press [ENTER].
– New signal name is registered.
7.3.8.2 Modification from the Menu
1. Move the cursor to the signal name to be modified in the UNIVERSAL/
SPECIFIED INPUT/OUTPUT window.
2. Select {EDIT} under the menu.
– The pull-down menu appears.

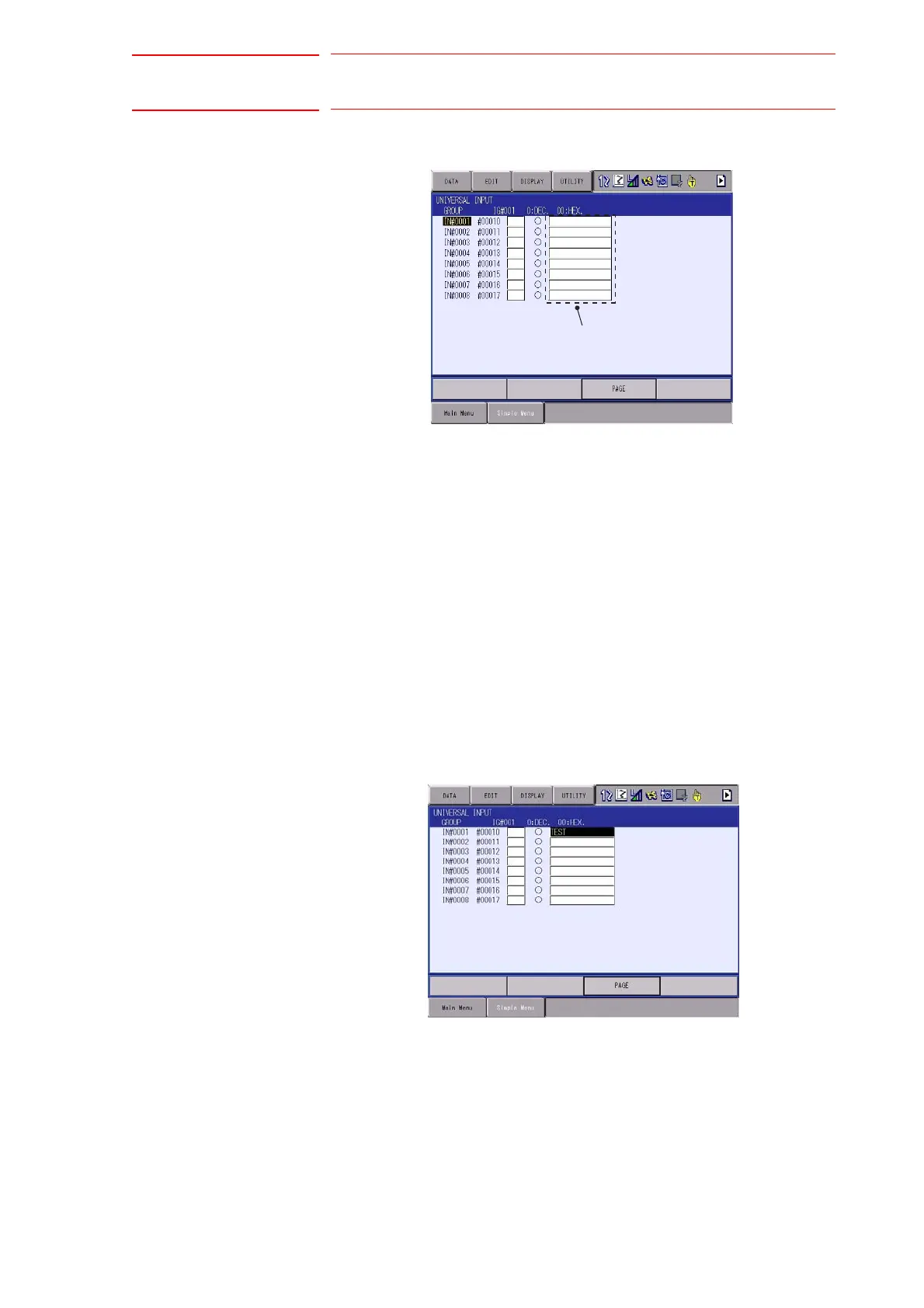

Signal name
