YASKAWA DX100 Service Manual

2 Security System
DX100 2.1 Protection Through Security Mode Settings
2-6

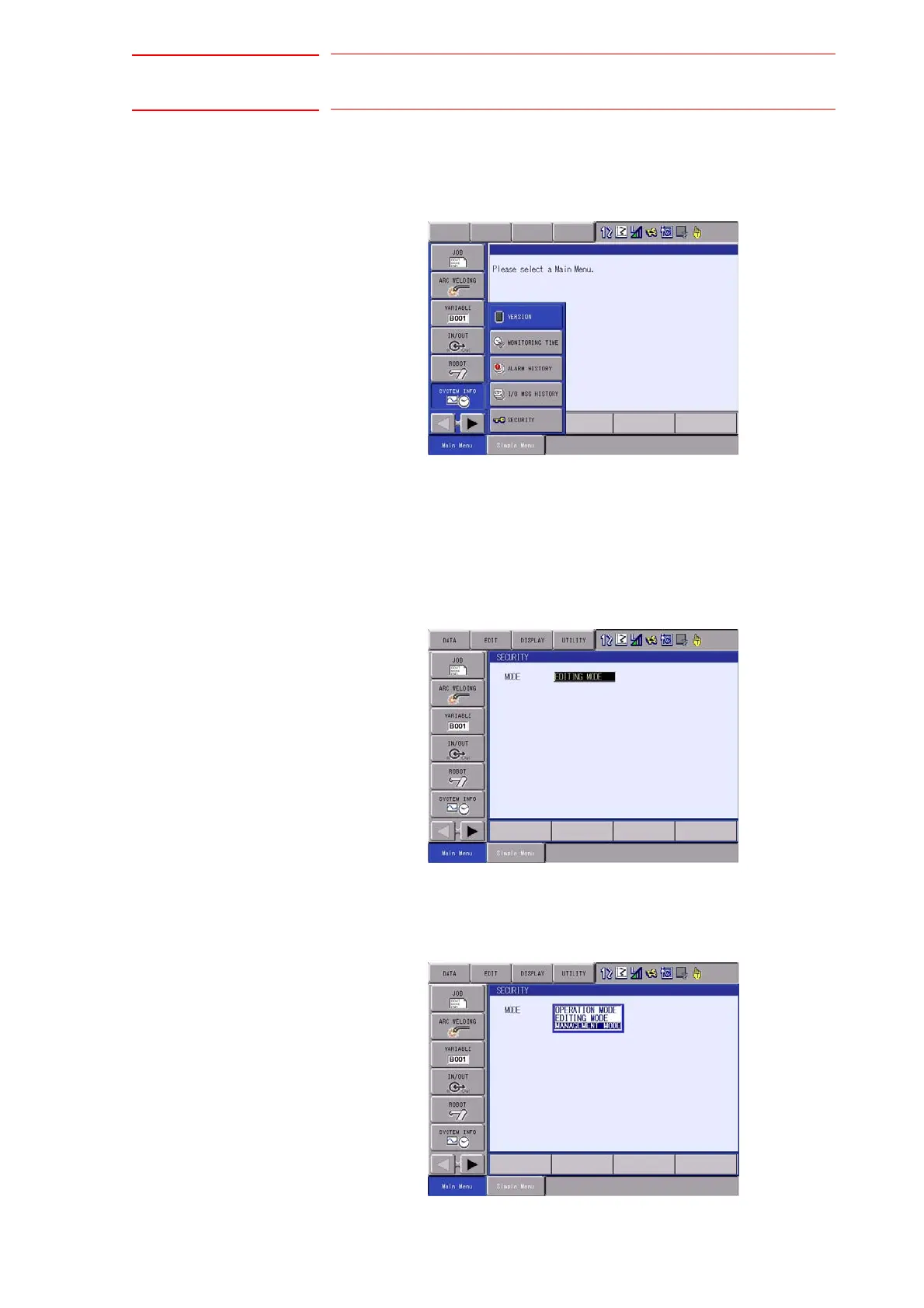

2.1.1.1 Changing the Security Mode
1. Select {SYSTEM INFO} under the main menu.
– The sub menu appears.
– Note: Icons for the main menu such as arc welding system differ
depending on the system being used.
2. Select {SECURITY}.
– The selection window of security mode appears.
3. Press [SELECT] and select "SECURITY MODE."

YASKAWA DX100 Specifications

General

Programming Language	Inform III
Compatible Robots	Motoman robots
Operating Temperature	0-45°C
Humidity	20-80% RH (non-condensing)
Protection Class	IP20
Interface	Ethernet
Safety Standards	ANSI/RIA R15.06-1999
Pendant	Available
I/O Capacity	1024 inputs / 1024 outputs
Storage Temperature	-10-60°C
